This ESP32-S3 LoRaWAN development board simplifies everything—from rapid prototyping to real-world testing. Featuring Arduino compatibility, LoRa/LoRaWAN protocol support, and a built-in display, it’s the go-to board for developers building and validating smart sensor networks or remote monitoring systems.
Designed for IoT engineers and makers, this board supports both one-to-one and LoRaWAN network communication, while offering plug-and-play expansion with Gravity sensors—no soldering required.
Seamless LoRa/LoRaWAN Communication
Built on the SX1262 transceiver, this board handles 850–930MHz LoRa frequencies with a sensitivity of -137dBm, enabling long-range, low-power wireless data transfer. Whether you’re setting up point-to-point communication or integrating into a LoRaWAN network, the full protocol support allows flexible deployment without requiring deep protocol knowledge.
Solderless Prototyping, Fast Integration
No more fiddling with wires. The board features ready-to-use GPIO, I2C, and Gravity sensor interfaces, making it compatible with hundreds of off-the-shelf modules. Rapid assembly and easy sensor connections eliminate build-time bottlenecks—ideal for field tests and product validation.
Optimized for Field Testing and Debugging
Designed with mobility in mind, the board includes a 0.96-inch color LCD screen to display signal strength, data logs, and diagnostic info on the fly. Two onboard buttons allow intuitive screen control, while Type-C charging and a 3.7V lithium battery interface ensure true portability. Say goodbye to laptop tethering during testing.

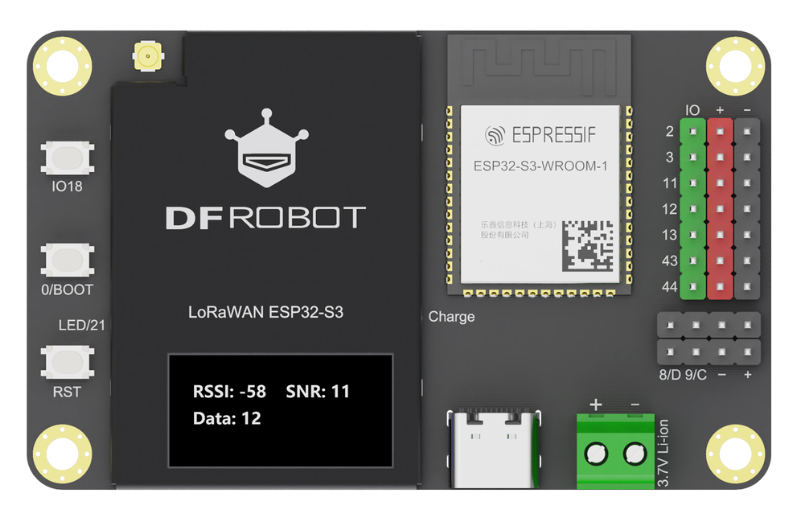

Figure: Overview of ESP32-S3 LoRaWAN development board
Applications:
Specification:
Power & Display
LoRa Radio (SX1262)
Microcontroller (ESP32-S3)
Interfaces & Features
Dimensions & Environment
Product Includes:
