LoRa Indoor Antenna Kit; 860-930MHz; 3dBi; 295mm

Price:
Sale price A$29.92   Inc. GST
SKU:
SS110991765
Out Of Stock

We will notify you when this product becomes available.

Features

  • High gain 3dBi dual-band for 868MHz and 915MHz

  • High efficiency vertical polarized monopole

  • Robust hermetic construction for outdoor usage and small compact size for indoor usage

  • Include easy-to-use magnetic support

  • CE RoHS certified

860-930MHz dual-band -3dBi Omnidirectional Indoor/Outdoor Antenna for LoRa,LoRaWAN LongFi and ISM applications.

Fully compatible with technologies, products and services by

Specification

Frequency Range860-930MHz
impedance 50Ω
VSWR

1.5 @ 868MHz typical

1.5 @ 915MHz typical

<2.2 max

Gain3dBi
Efficiency Maximum75%
PolarizationLinear Vertical
Radiation pattern360° Omni directional
Physical length295 mm
Radiator MaterialNickel Steel
Covering Material ABS Black

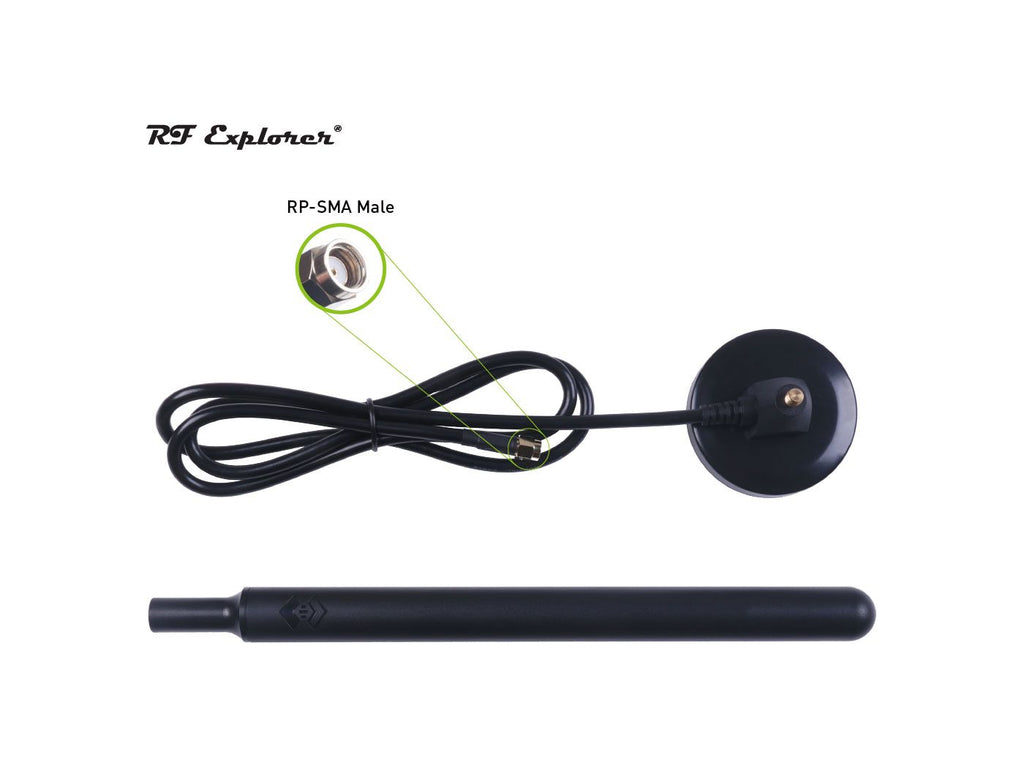

Cable ConnectorRP-SMA Male
Cable TypeRG-58
Cable Length1000 mm
Temperature operation-20℃ to +65℃ / -4℉ to +150℉
WaterproofIP65



VSWR

Antenna Gain

Antenna Efficiency

Radiation Pattern

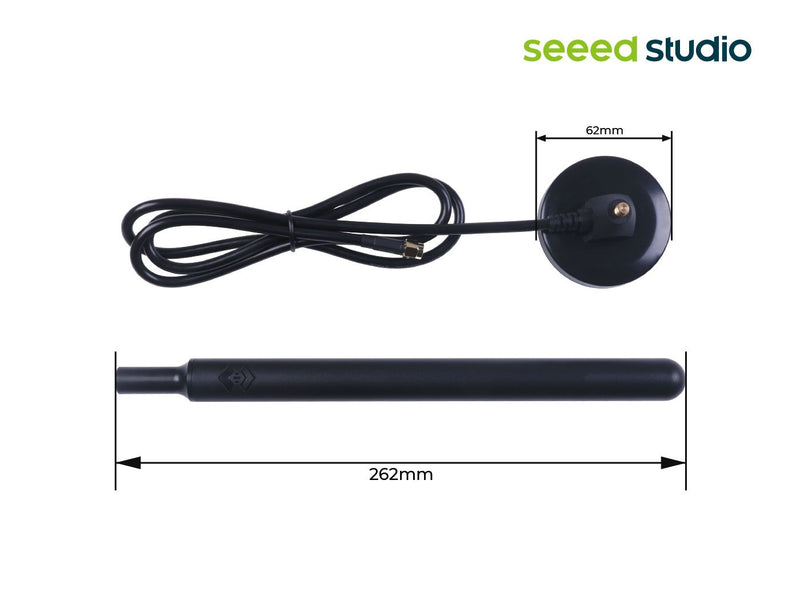

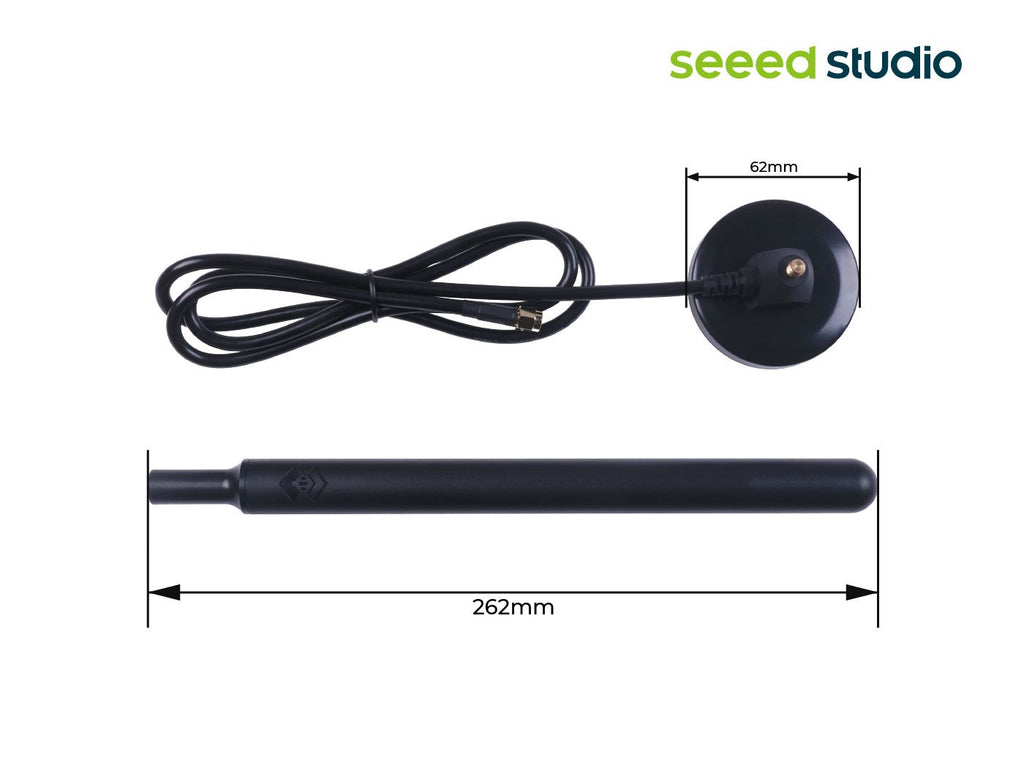

Dimension

Usage Scenario

ECCN/HTS

HSCODE8517710000
USHSCODE8517620010
UPC
