Features
- Average gain dBi: 3dBi
- Frequency range: 902-928MHz
- Length: 360mm
- Robust enough to tolerate outdoor environment and water-proof
- Compatible with SenseCAP M1 Indoor Gateway
- Comes with an antenna base (no magnetic)
Description

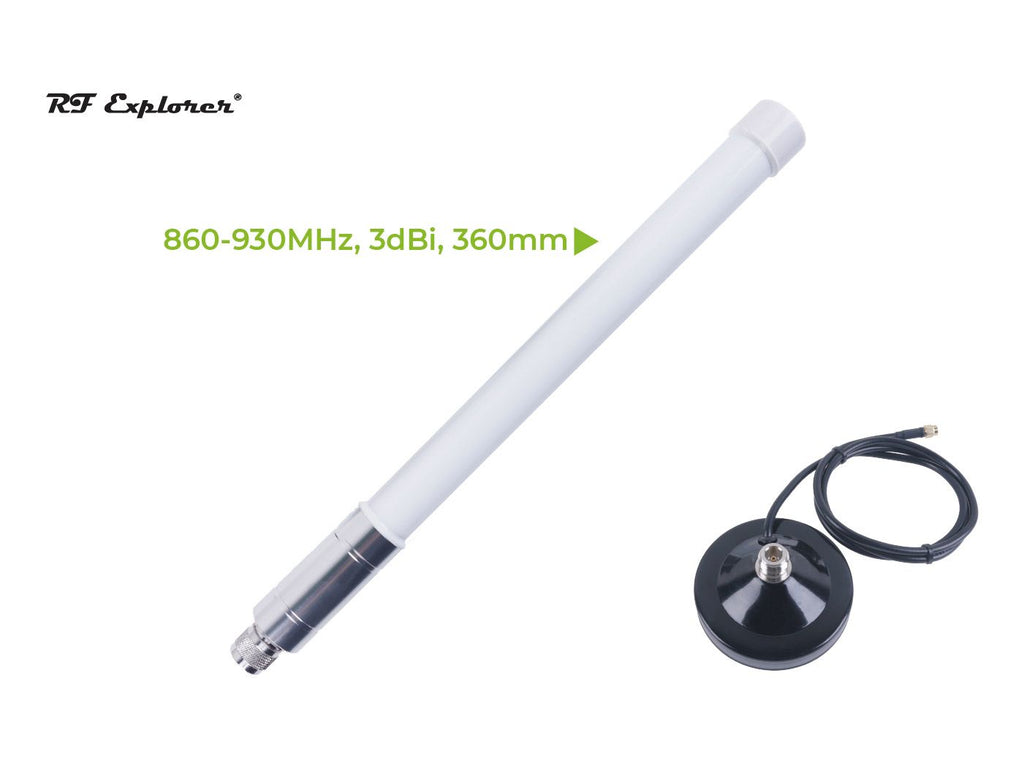

For some applications like in an urban environment or where large stretches of land have to be monitored the normal range of LoRa might not be enough. If you need to increase the range for your LoRa devices, then this outdoor LoRa Fiberglass antenna will be the ideal addition to your LoRa system. It’s a robust solution to provide extra power and range for outdoor LoRa Base stations. The antenna has an average gain of 3dBi, a length of 360mm, and a frequency range from 902-928MHz. It comes with an antenna base as well.

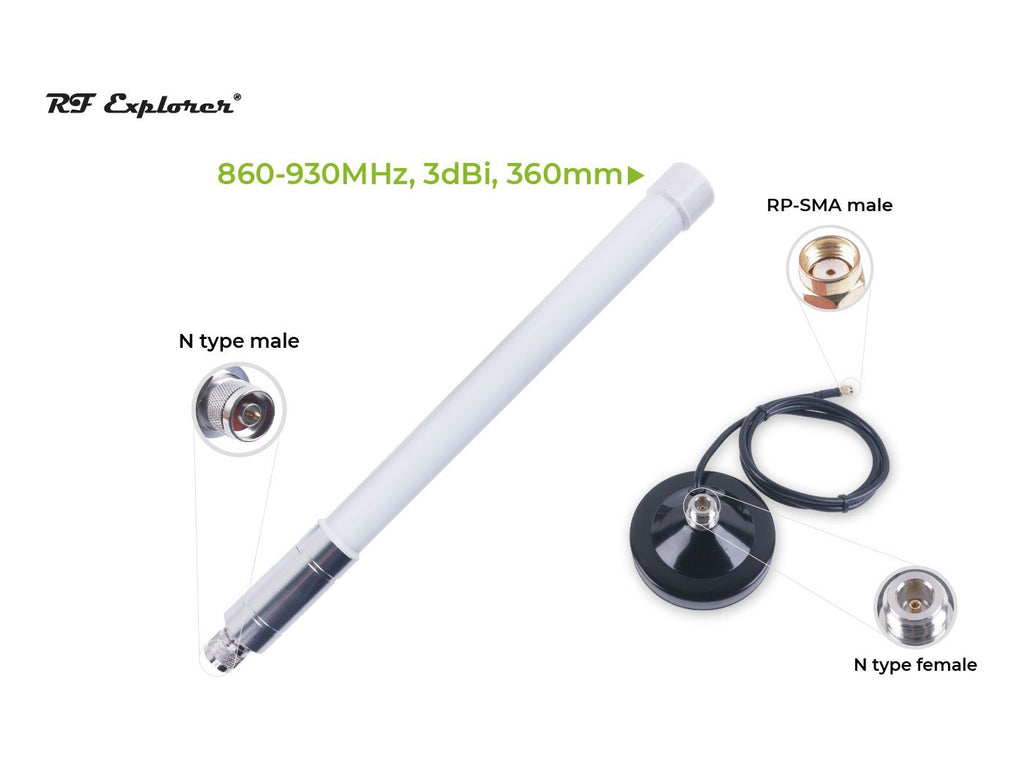

The Antenna has an N-type male connector, and it comes with an N-type Female to RP-SMA male base so it can be easily connected to the SenseCAP M1 Gateways, which has an RP-SMA female connector.
Specification
Frequency | 860-930MHz |
Impedance | 50Ω |
VSWR | ≤2.5 |
Gain | ≤3dBi±1.0 |
Efficiency | >60% |
Beamwidth | 360° |
Connector | N-Type Male |
Material | Fiberglass |
Length | 360mm±5mm |
Operation Temperature | -30℃~65℃ |
Part list
3 dBi Antenna*1
Antenna Base*1
ECCN/HTS
| HSCODE | 8517710000 |
| UPC |
