- No cellular signal or internet required
- Accurate Metrics: Get detailed latitude, longitude, altitude, and speed information.
- Real-Time Tracking: View precise GPS locations instantly.
- Offline smartphone app iOS/ Android
- No monthly fees
- 15+ km range (tested in open area)
- Up to a year battery life in a single charge (Air unit)
- Tracks up to 30 Air units per Ground unit ( Multi Connection)
- Open-source with developer-friendly features
- LoRaWAN and LoRa P2P communication
- Data logging and history recording capability
- Offline Maps: Navigate with pre-downloaded OpenStreetMap areas—no internet required.
- Multi-Device Support: Track multiple transmitters in one app.
- Archive History: Access saved tracking data by date.
- Battery Monitoring: Check the battery levels of both transmitter and receiver.
- Data Security: Enable AES128 encryption for secure tracking.
- History Management: Delete tracking data easily from the app.
- Balloon Mode: Activate for GPS functionality up to 80 km altitude from sea level.
- Frequency modes( software selectable): EU868/US915/AU915/AS923/KR920/IN865
Loko's proprietary smartphone application functions completely offline, displaying locations on a 2D map for easy navigation and recovery. The app also features a data logging capability, recording location history for comprehensive tracking analysis and review.
Supporting both LoRa Peer-to-Peer and LoRaWAN® protocols, Loko offers versatility in communication methods. Its rugged, water-resistant design ensures durability in challenging environments, making it ideal for various applications including drone recovery, wildlife tracking, asset monitoring in remote locations, and outdoor adventure sports.
The open-source nature of Loko, combined with its developer-friendly features, allows for customization and integration into diverse IoT ecosystems. Operating independently of cellular networks and without any monthly fees, Loko provides a cost-effective, long-term solution for tracking needs in even the most signal-constrained locations.
Loko Air Unit (Transmitter): | |
Size | 30x22mm |
Weight | 14g(0.42oz.) |
Navigation | 33 tracking/99 acquisition-channel GPS/GLONASS/GALILEO |
Radio | LoRa Peer-to-Peer and LoRaWAN® |
Frequency | EU868/US915/AU915/AS923/KR920/IN865 |
Battery | 210 mah Li-ion |
Battery life | Up to a year (varies with transmit interval) |
Charging | 5 V USB Type-C |
Power consumption | -Power ON mode: 54mA - Power OFF mode: 9uA |
Loko Ground Unit (Receiver): | |
Size | 114x26x29 mm |
Weight | 110 g(with battery) |
Radios | LoRa Peer-to-Peer, LoRaWAN®, Bluetooth |
Antenna | SMA male connector |
Battery | Li-Ion 18650 (not included) |
Battery life | 6 hours (3600 mAh battery) |
Charging | USB Type-C |
System Capabilities: | |
Range | 15+ km |
Smartphone app | iOS and Android, fully offline functionality |
PC configuration software available | |

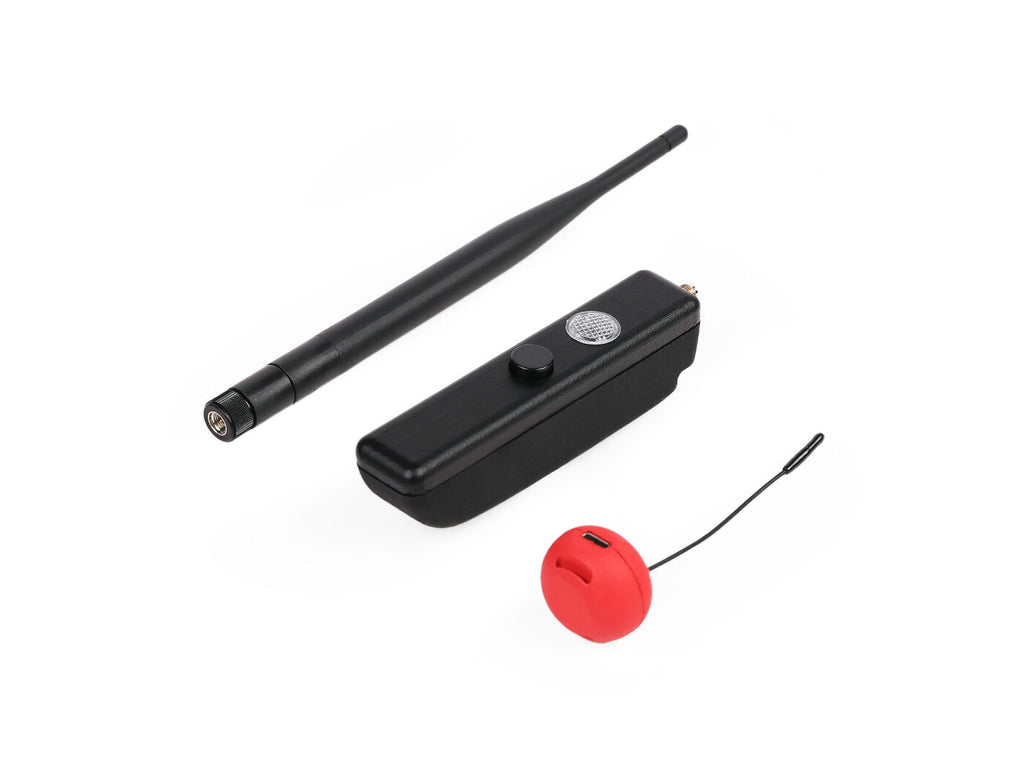

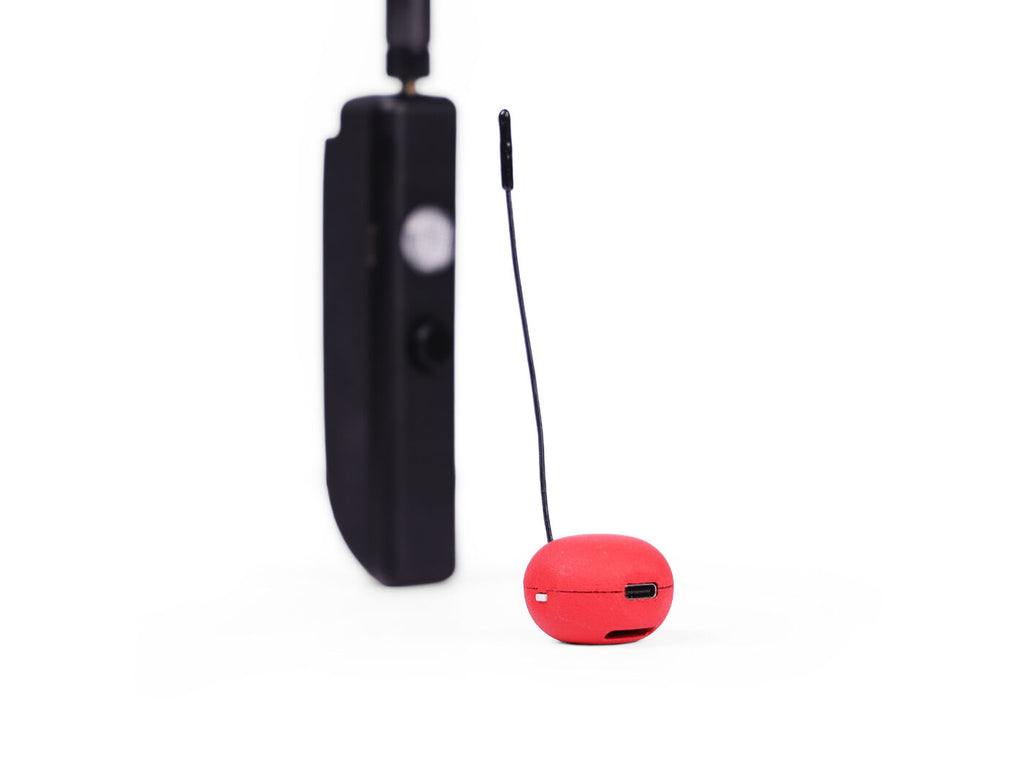

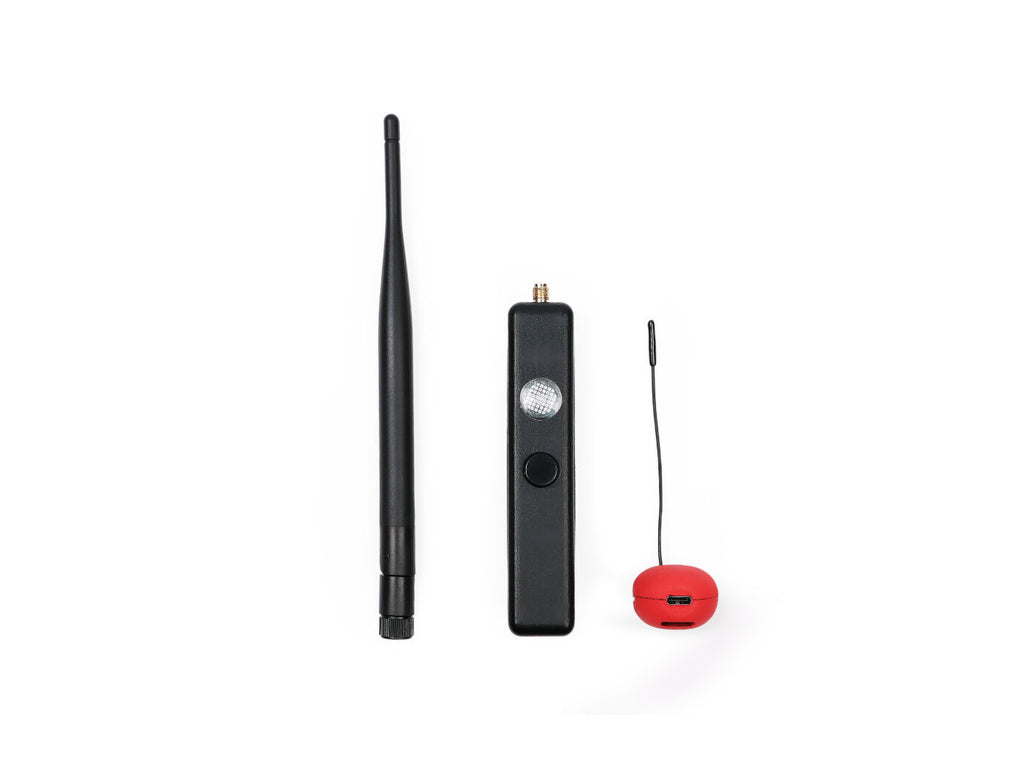

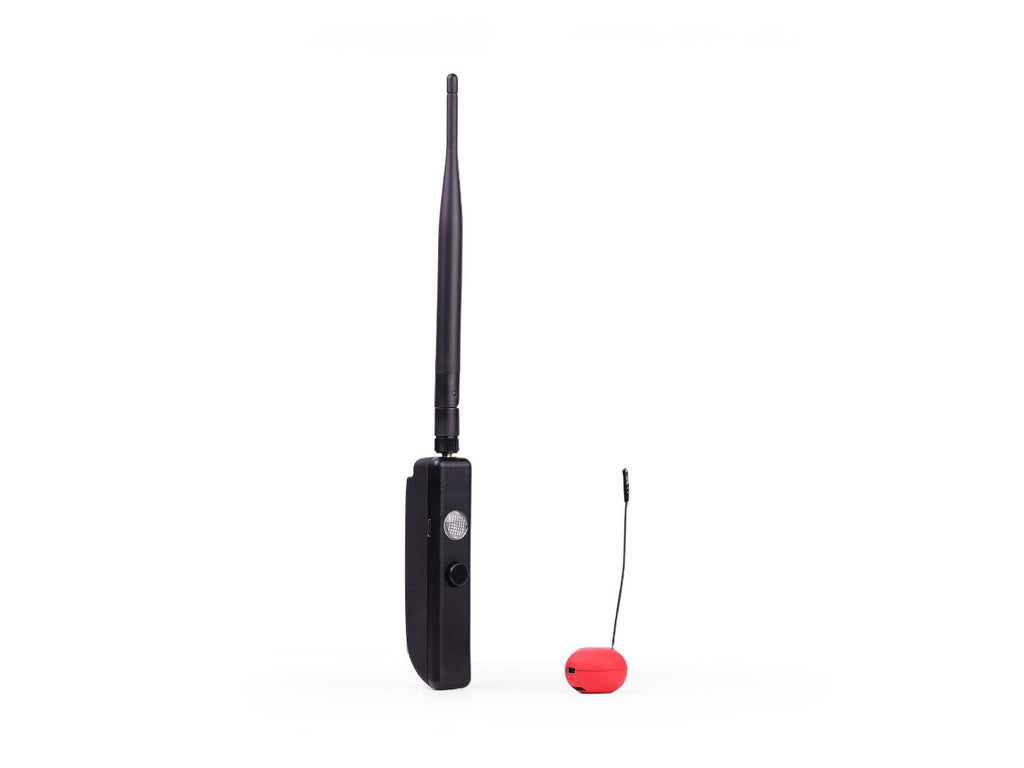

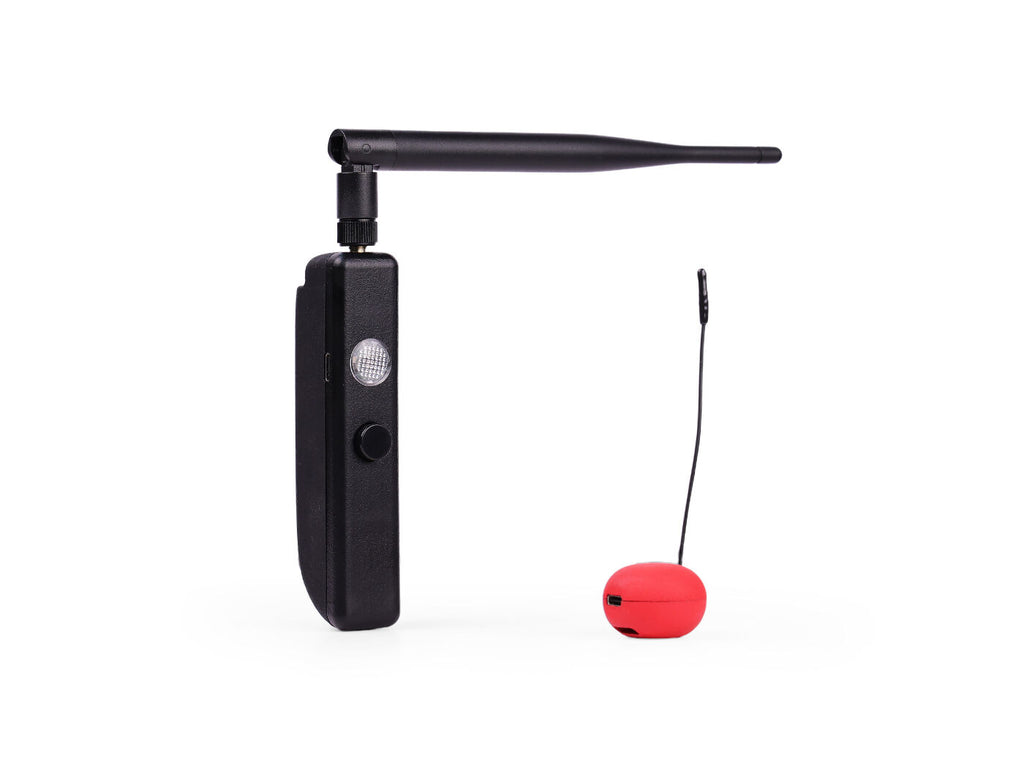

1. Loko Air Unit (Transmitter):
- USB-C port for charging and configuration
- Antenna
- ON/OFF button
-3 seconds long press turns ON
-3 seconds long press turns OFF
- Attachment port for velcro strap.
2. Loko Ground Unit (Receiver):
- 5dBi dipole antenna
- USB Type-C connector for configuration and charging.
- Button - Power ON/OFF
- RGB LED indicator light
-Solid Blue light shows device connected to Bluetooth
-Blinking Blue light shows device is active for connection
-Red light shows device is going to turn off
3.30 cm velcro strap
1. Outdoor and Adventure Sports
- Drone recovery in remote areas
- Tracking of land-based extreme sports equipment (e.g., mountain bikes, snowboards)
- Hiker and mountaineer safety monitoring
- Off-road vehicle tracking for rallies and expeditions
2. Wildlife and Environmental Research
- Terrestrial animal migration pattern tracking
- Endangered land species monitoring
- Ecological study of remote land habitats
- Tracking of research equipment in arid or forested environments
3. Asset Management and Logistics
- Remote equipment tracking on construction sites
- Agricultural machinery monitoring in vast farmlands
- Tracking of valuable assets in transit (land-based)
- Inventory management in large warehouses or outdoor storage areas
4. Search and Rescue Operations
- Locating lost hikers or mountaineers
- Tracking search and rescue team members in wilderness areas
- Emergency beacon for adventurers in remote land locations
- Disaster response asset management for land-based operations
5. Scientific and Research Expeditions
- Tracking of research equipment in polar regions (on ice or land)
- Monitoring of autonomous land-based research vehicles
- Geological survey equipment tracking
- Atmospheric and weather monitoring balloon tracking
6. Personal and Recreational Use
- Pet tracking in rural or expansive areas
- Family member location sharing during outdoor activities
7. Industrial and Energy Sector
- Pipeline monitoring in remote land areas
- Tracking of maintenance equipment in large industrial complexes
- Wind turbine and solar panel array monitoring
- Mining equipment tracking in open-pit mines
What are LoRa P2P and LoRaWAN?
Product | Quantity |
Loko Air Unit transmitter | 1 |
30 cm velcro strap | 1 |
Loko Ground Unit receiver | 1 |
5dBi dipole antenna | 1 |
User manual | 1 |
PC configuration software (downloadable) | 1 |
Loko App: Fully offline smartphone application (iOS/Android, downloadable) | 1 |
| HSCODE | 8526919090 |
| USHSCODE | 8517180050 |
| UPC | |
| EUHSCODE | 8517180000 |
| COO | CHINA |
