LM3671 3.3V Buck Converter Breakout - 3.3V Output 600mA Max

$11.47 AUD Inc. GST


SKU ADA2745
Ships in 24 hours 1 units
Ships in 3 to 10 days 50 units

increment
decrement
decrement increment

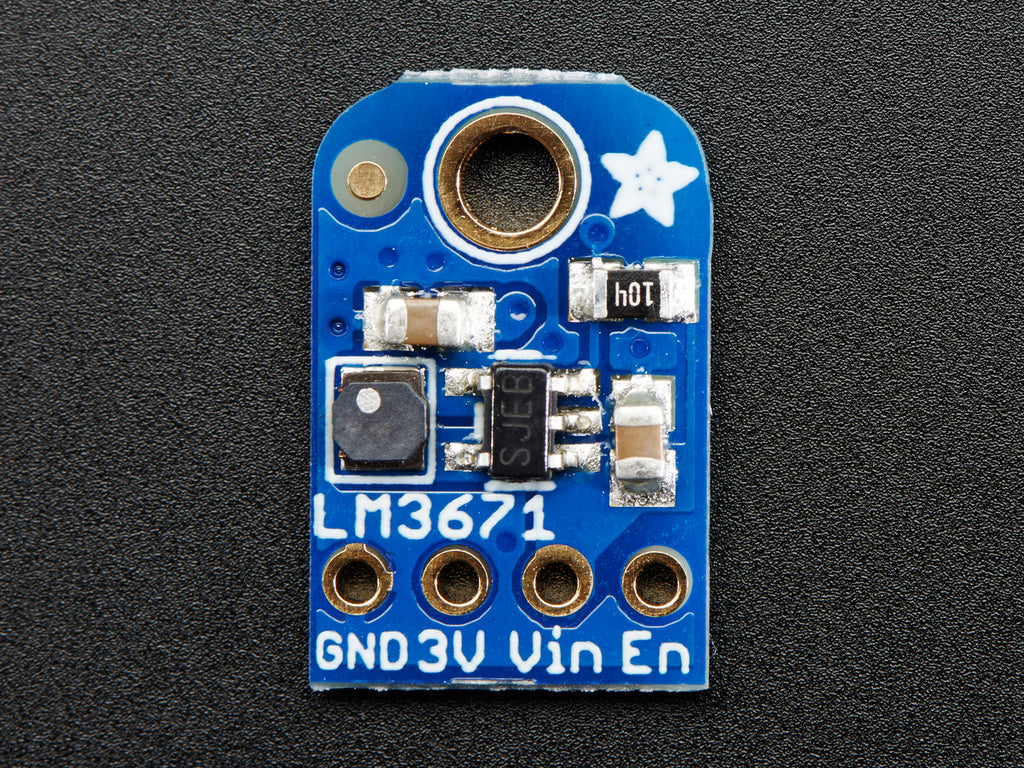

Your power supply problems just got SUPER SOLVED! This 3.3V Buck Converter Breakout board is great for supplying power to low voltage circuits from a single Li-Ion cell battery or USB power.  This chip provides up to 600-mA load current across the entire input voltage range of 3.5 to 5.5V.  Great for your portable project, we made this "pin compatible" with the LM1117-3.3V TO-220 chip so you can swap it in for better performance (90-95% efficiency!) There's also an ENable pin, tie it low to shut down the output completely.

There's a 2-MHz fixed-frequency in PWM mode and PFM mode extends the battery life by reducing the current during light load or standby operation.

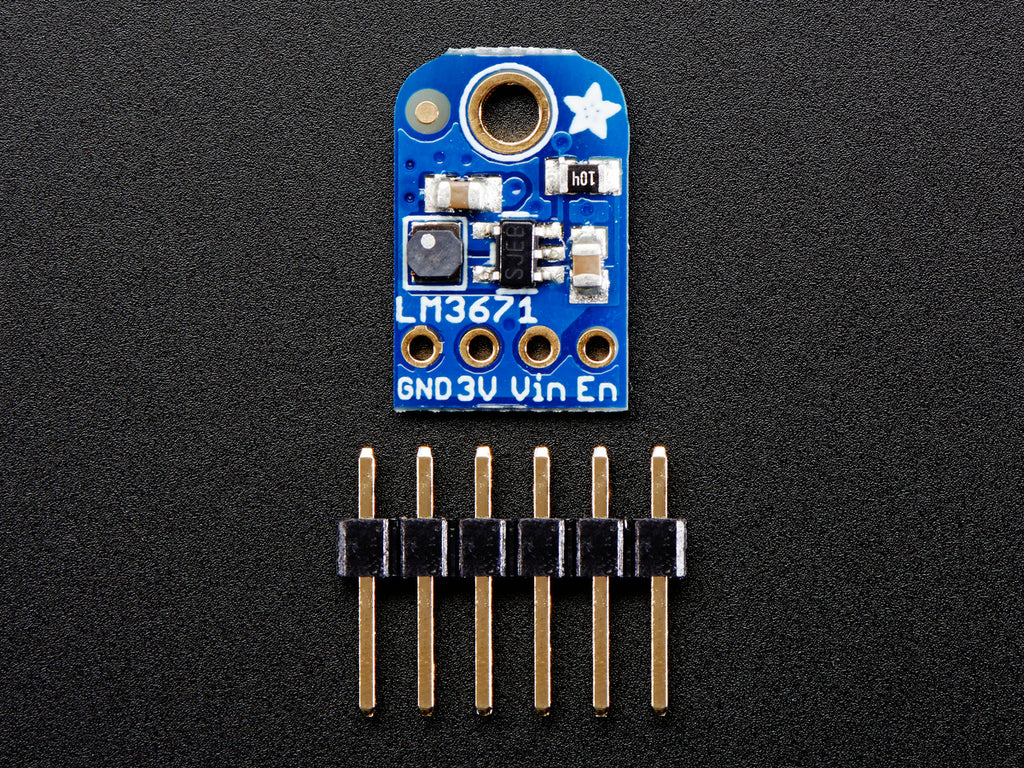

Comes with a fully assembled and tested breakout board.  We also include header to plug it into a breadboard.

Technical Details

  Specifications:
