LinkIt Assist 2502

Sale price A$255.26   Inc. GST
Out Of Stock

We will notify you when this product becomes available.

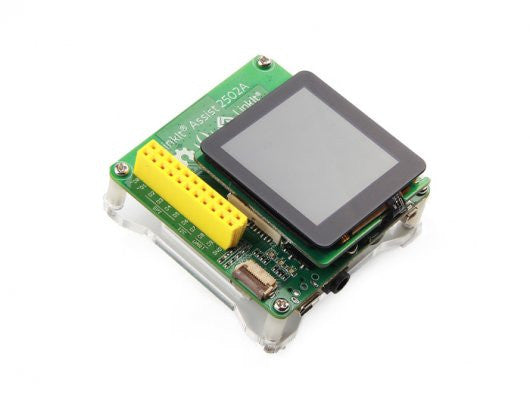

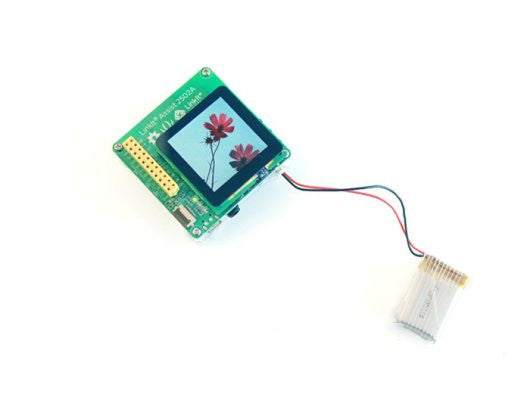

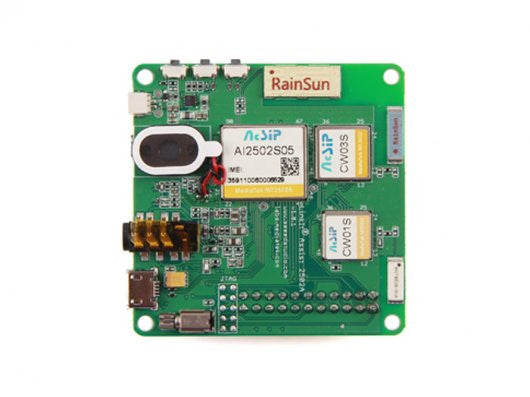

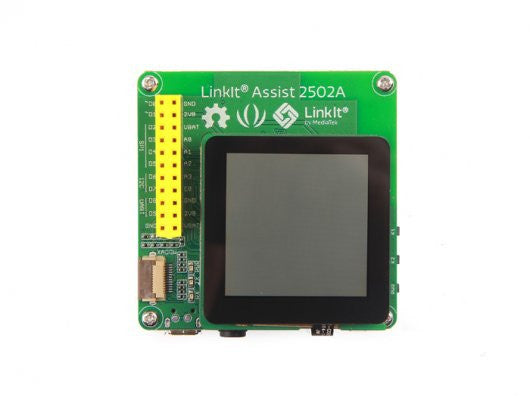

LinkIt Assist 2502, a co-design product by Seeed Studio and MediaTek , is development board for prototyping Wearables and Internet of Things(IoT) devices that can connect to other smart devices or directly to cloud applications and services. The development board consists of a MT2502A IoT SiP Core module from AcSiP - AI2502S05, a MT5931 802.11b/g/n WLAN SiP Module - CW01S, a MT3332 GNSS Host-Based Solution SiP Module – CW03S, and an exchangeable 240X240 16-bit color capacitive touch LCM Board, offering high performance and low power consumption to devices with more sophisticated communication or location acquisition requirements. With LinkIt Assist 2502, it’s easier and cheaper for device developers to produce desirable, functional wearable products prototype.
In addition to pin breakouts, the board also comes with Seeed Xadow interface for connecting to various peripherals.
LinkIt Assist 2502 is fully supported on the MediaTek Labs site: check out the LinkIt section  and  register here  to download the SDK, participate in the Forums,post your voice .and Some good prototype or reference design built in LinkIt Assist 2502 can be shared in our recipe platform.
  • Include MT2502A, MT5931, MT3332 modules
  • Integrated voice-band, audio-band and base-band analog front-end
  • Integrated full-featured power management unit
  • Support IEEE 802.11b/g/n and Bluetooth co-existence
  • Support GPS, GLONASS, and BeiDou

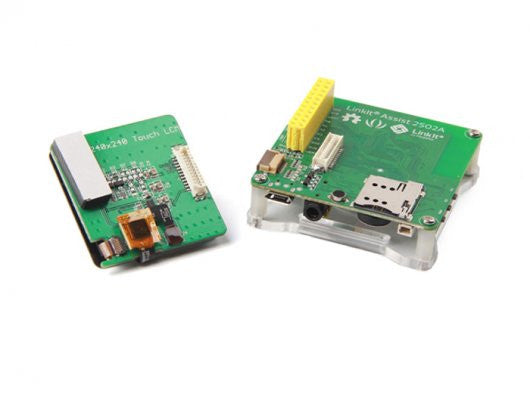

  • Include a 240X240 capacitive touch LCM Board
  • Low power for battery supply
  • Power supply: 5V USB Power and 3.7V Li-on Battery. Battery is required to boot
  • IO Voltage: 2.0~3.6V(2.8V Digital Power Source); 1.6~2.0V(1.8V Digital Power Source)
  • 3 on-board buttons
  • 3.5mm Audio Jack
  • On-board vibration motor
  • On-board GSM chip antenna, Wi-Fi/BT chip antenna, GPS chip antenna
  • On-board charging via standard Micro USB
  • One Micro-SIM Card Interface
  • On-board microphone input
  • One Standard Xadow Interface
  • SPI/I2C/UART/GPIO breakout interface
  • Dimension: 53x53x16 mm(include LCM board)

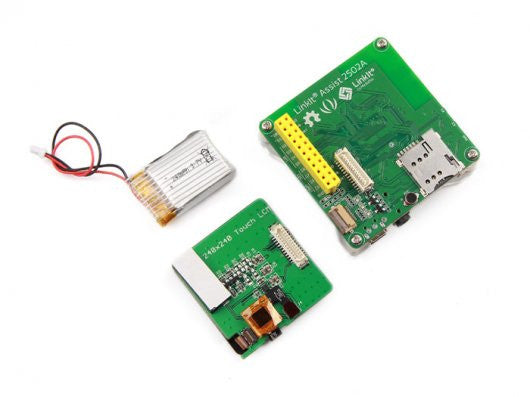

 Part List:
  • LinkIt Assist 2502 Board         x1
  • 240*240 Touch LCM Board        x1
  • Lithium-ion Battery 3.7V-240mAh   x1
  • Manual                          x1
Please visit wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials.
