Features
Powerful CPU: Allwinner RISC-V SOC D1 with 512MB ddr3
Features WIFI+BT wireless module and 100M Ethernet
Flexible external power supply (Onboard DC-DC):5V/12V
Various software supported: Linux system, OpenWRT, Debian, and Ali WAFT
User-friendly 480*480 4-inch touch IPS screen: supports human-computer interaction application
Support for external speakers:1W mini speaker, Dual digital silicon microphone
Optional 86 panel 3D print shell, open-source drawing
Ideal for Smart home center control unit, WAFT UI evaluation
Development resource: offer docker development image of the original SDK
Default TF card: 32GB with Tina & Debian system burned
Description
Lichee RV-86 Panel is a development kit equipped with LicheeRV Core board (Allwinner D1 chip with 512MB ddr3). The default 4-inch 480*480 touch IPS screen could be optionally upgraded to a 4-inch 720*720 IPS screen and reserves an 8-inch 1280*800 IPS capacitive touch screen interface.
It features a Wifi+BT wireless module, RTL8201F 100M Ethernet, 1W mini speaker, two digital silicon microphones, double 2x8Pin 2.54mm Pin headers, and a GPIO expansion interface. It’s embedded with a USB-C OTG interface on the core board, and reserves USB-C HOST and USB-UART interface.
It supports 5V USB or 12V external power supply. For software, it supports Linux OS (Openwrt or Debian) and Ali WATF(WAFT is a high-performance application research framework for aiot based on WebAssembly and their rendering engine) which makes it ideal for Smart home center control applications and WAFT UI evaluation.
This kit also includes a TF card, which is already finished the burning system process. You can get started with it right after receiving your kit. It's suggested to use the TF card provided because the other cards might fail to burn or fail to boot the system.
Application
Smart home center control applications
Human-computer interaction applications
RISC-V ecological developer research and study
Study and use the WAFT UI development environment
Research on RISC-V processor technology in the scientific research institution
HD Display, Smart Voice, Home Interconnection, Smart Robot, Automatic Control, etc
Specification
Parameter | Detail |
Core board | Lichee RV(ALlwinner D1 chip with 512MB ddr3) |
Display |
|
Audio |
|
Power | Support 5V, 12V external power supply(onboard DC-DC) |
USB |
|
Network |
|

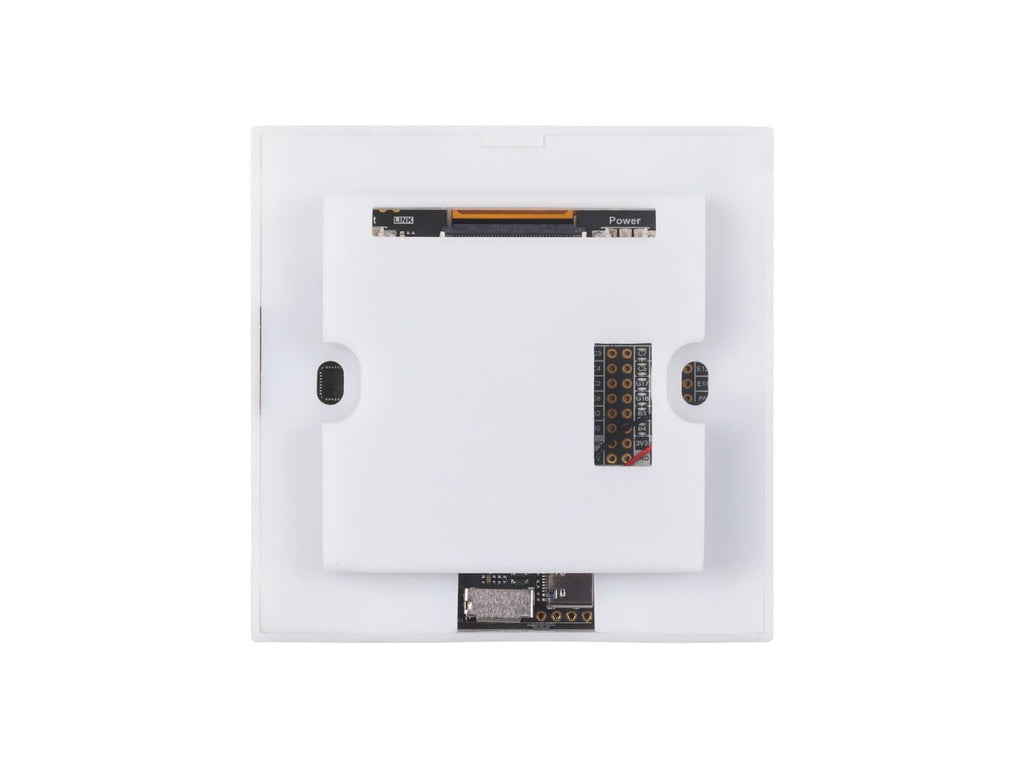

External EPIO | Double 2x8Pin 2.54mm pin header and 16 Pin FPC for GPIO extend |
Development framework | Support WAFT (WebAssembly Framework For Things) runtime |

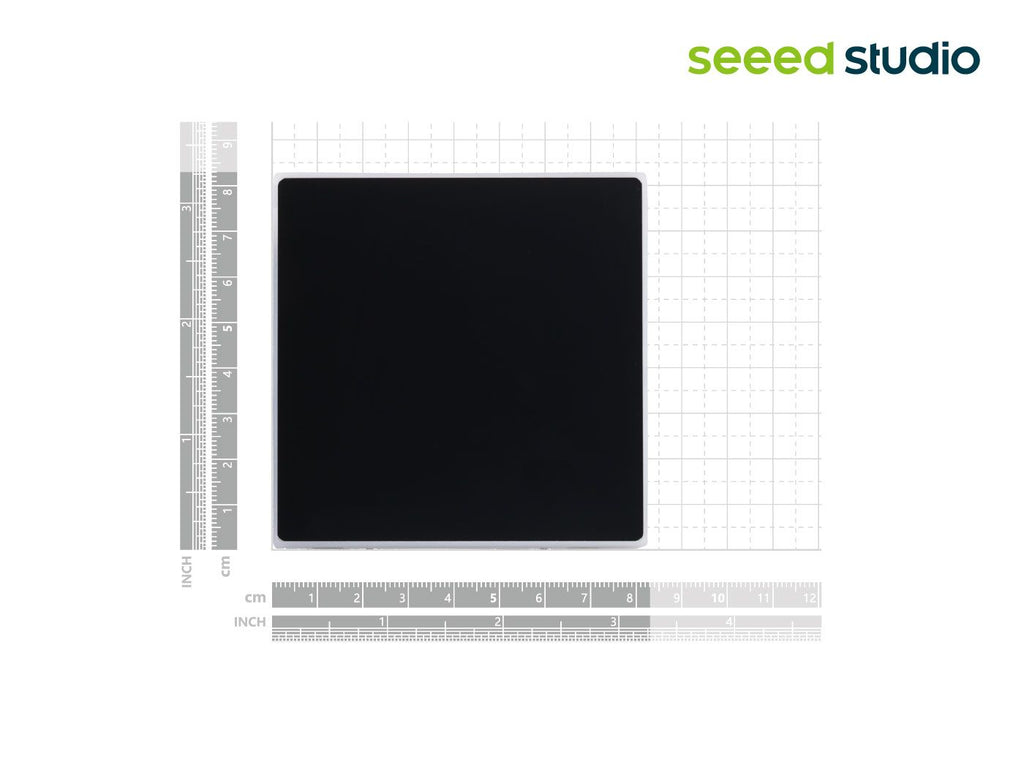

Dimension | 86mm x 86mm |
Operating system | Support OpenWRT and Debian |
Development resource | Offer docker development image of the original SDK |
Annotation

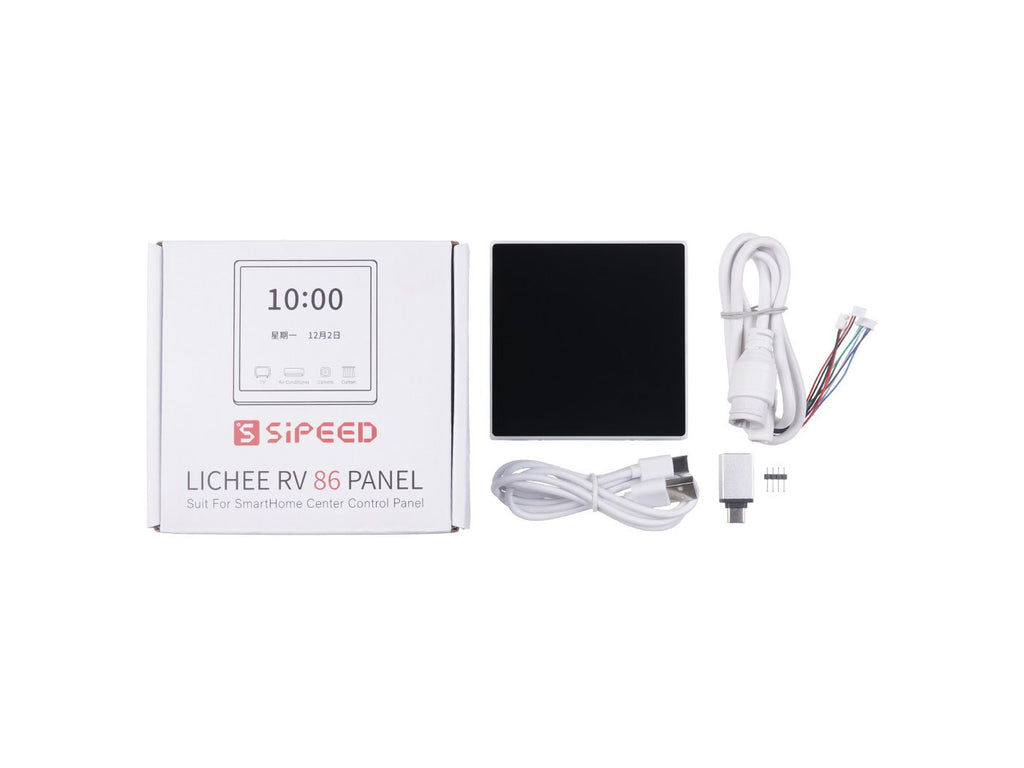

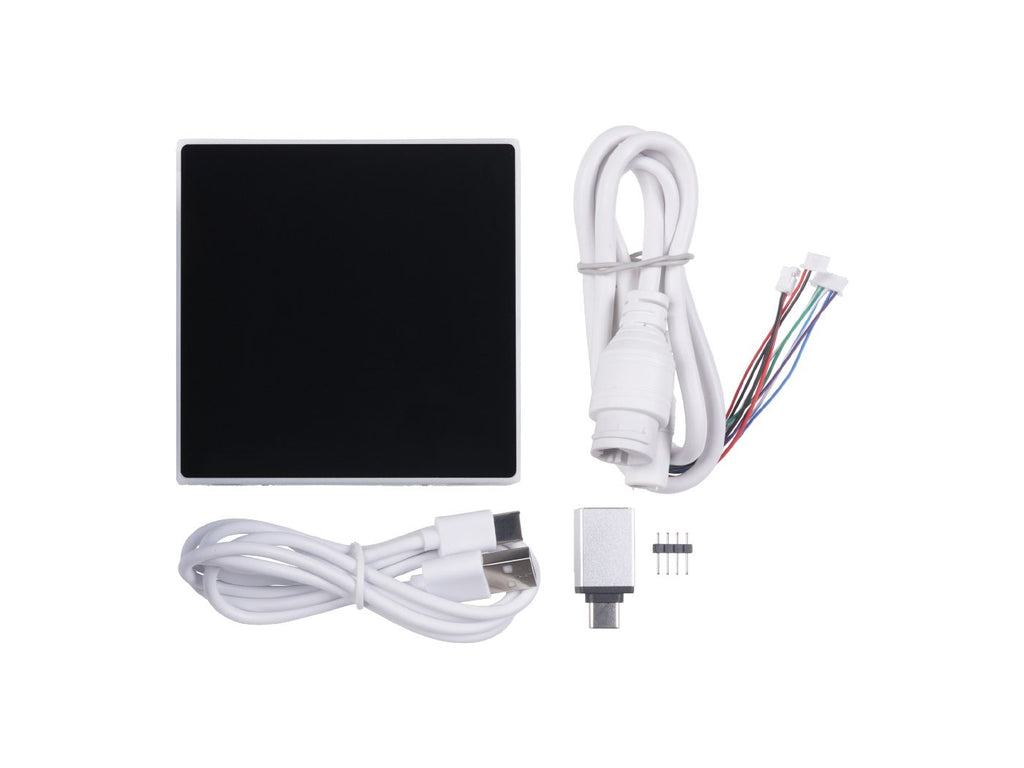

Part List
Lichee RV 86 Panel | 1 |
RJ45 Ethernet & Power Cable | 1 |
Type-C Data Cable | 1 |
USB-C To USB-A | 1 |
32GB TF card | 1 |
ECCN/HTS
| HSCODE | 8543709990 |
| UPC |
