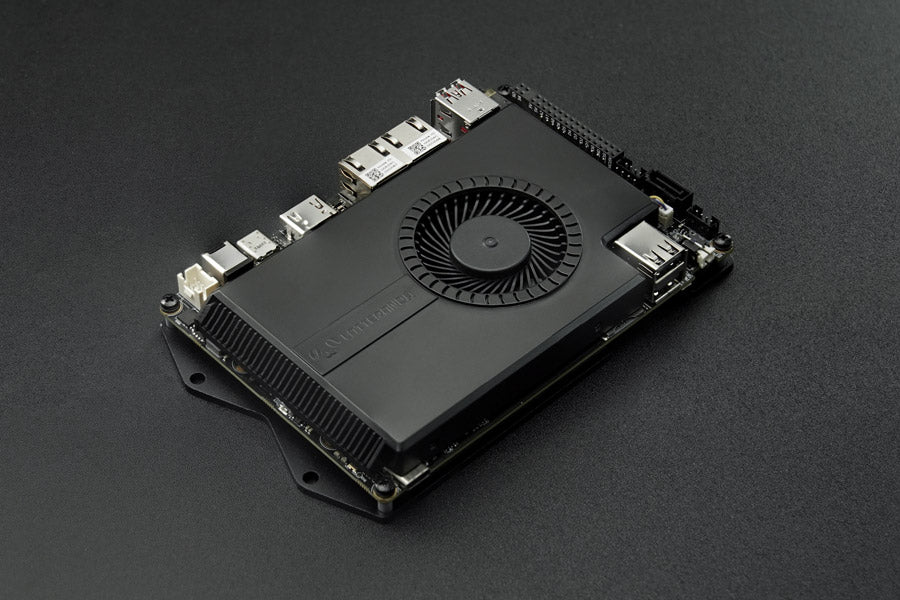

LattePanda Sigma - The Small Hackable x86 Windows/Linux Single Board Computer Server (16GB RAM/500GB SSD and WiFi 6E Module)
LattePanda Sigma - The Small Hackable x86 Windows/Linux Single Board Computer Server (16GB RAM/500GB SSD and WiFi 6E Module)

LattePanda Sigma - The Small Hackable x86 Windows/Linux Single Board Computer Server (16GB RAM/500GB SSD and WiFi 6E Module)

Price:
A$1,550.91   Inc. GST
SKU:
DF-DFR1081
170 units Ships in 7 to 10 days

LattePanda Sigma Hackable Single Board Computer and Server
13th Intel Core i5-1340P CPU, Ultimate Performance of LattePanda Sigma
LattePanda Sigma GPU Intel Iris X2 Graphics 80 EUs,, up to 1.45GHz
LattePanda Sigma has Lightning-Fast Memory, with Dual-Channel LPDDR5-6400 and Bandwidth: 102.4GB/s
LattePanda Sigma Efficient Cooling and Rapid Chill, 44W TDP
LattePanda Sigma LattePanda Sigma Low Noise Operation
LattePanda Sigma Perfect Balance Between, Performance and Energy
LattePanda Mini Size Single Board Computer and Server
LattePanda Supports 4K Displays Output
LattePanda Sigma has rich Interfaces and user-Friendly Layout
LattePanda Sigma supports Windows 10, Windows 11, and Ubuntu OS
LattePanda Sigma
LattePanda Sigma Single Board Server Key Features


Comparison Tables

SKUModelProcessorMemoryStorage  Wireless
DFR1080LattePanda SigmaIntel Core i5-1340P
16GB
LPDDR5- 6400
//
DFR1081
LattePanda Sigma
(with 500GB SSD and WiFi 6E Module)
500GB WD SN770
PCIe 4.0 x4 SSD
Intel AX211
WiFi 6E Module

Features:

  • Ultimate Performance: The Intel Core i5-1340P processor has 12 cores and 16 threads with a maximum turbo frequency of 4.60 GHz (performance-core) and 3.4 GHz (efficient-core), making it a powerful and efficient processor for multitasking and demanding applications.
  • Lightning-fast Memory: The dual-channel LPDDR5-6400 RAM with a capacity of 16GB ensures smooth and fast performance.
  • High-level Graphics Capability: as it features the Intel Iris Xe Graphics, LattePanda Sigma supports multiple display outputs with high resolutions and refresh rates.
  • Quad 4K displays: Experience unparalleled visual clarity with support for quad 4K displays, bringing your content to life like never before.
  • User-friendly Interface Layout: plug and play with ease
  • Rich Interfaces: Unlock limitless possibilities with rich interfaces, offering seamless connectivity and enhanced user experience.
  • Diverse OS Support: Support Windows 10, Windows 11, and Ubuntu operating systems

    • Applications:

    LattePanda Sigma Applications

    Specification:

    Processor

  • CPU: Intel® Core™ i5-1340P
  • Cores / Threads: 12C(4P+8E) / 16T
  • Max Turbo Frequency: 4.60 GHz(Performance-core), 3.4 GHz(Efficient-core)
  • L2 Cache: 12 MB
  • Base Power: 28 W
  • Graphics: Intel® Iris® Xe Graphics
  • Max Dynamic Frequency: 1.45 GHz
  • Execution Units: 80
  • Co-processor: Microchip® ATmega32U4-MU

    • Memory
  • Technology: Dual-Channel LPDDR5-6400
  • Capacity: 16GB

    • Storage
  • Drive Form Factor: M.2 SSD (NVMe/SATA), SATA Drive

    • Wireless
  • Wireless Form Factor: M.2 Wireless Module (PCIe/CNVio)

    • Display
  • HDMI Port: HDMI 2.1, Up to 4096 x 2304 @ 60Hz
  • USB Type-C Port: DP 1.4a, Up to 7680 x 4320 @ 60Hz (One Monitor)
  • Embedded Display Port: eDP 1.4b, Up to 4096 x 2304 @ 120Hz

    • External I/O
  • USB Type-A: 2 x USB2.0 (480Mbps)
              2 x USB3.2 Gen 2 (10Gbps)
  • USB Type-C: 2 x Thunderbolt™ 4 (40Gbps)
  • HDMI: HDMI 2.1
  • Ethernet: 2 x 2.5GbE RJ45 Ports (Intel® i225-V Gigabit Ethernet Controller, Supports 10/100/1000/2500 Mbps, WOL)
  • Power: 5.5mm x 2.5mm DC Jack
  • Audio: 3.5mm Microphone Headphone Combo Connector
  • Sim Card: Micro Sim Card Slot

    • Internal I/O
  • USB 2.0: 2.0mm Pitch 4-Pin Connector, 480Mbps
  • Fan: 1.27mm Pitch,12V 4-Wire Fan Connector, PWM Control
  • SATA: SATA 6.0 Gb/s Data Connector, 2.0mm Pitch 4-Pin Power Connector
  • Front Panel: 2.54mm Pitch 9-Pin Header, Supports Power, Reset, Power LED, HDD LED
  • Front Audio Panel: 2.54mm Pitch 9-Pin Header, Supports High Definition Audio (HD), Line-Out, Mic-in
  • COM: 2.54mm Pitch 9-Pin Header,Supports RS232, RS485
  • GPIO: 2.54mm Pitch 34-Pin Header, Including ATmega32U4 I/O Pins, 5V Power Pins, S0/S3/S4 State Pins
  • eDP: 0.5mm Pitch 40-Pin Connector, 4 Lanes

    • Expansion Slot
  • M.2 M Key: Type 2280, Supports PCIe 3.0 x4
              Type 2280, Supports PCIe 4.0 x4
  • M.2 B Key: Type 2242/2252/2280, Supports SATA III/PCIe 3.0 x1, USB2.0, USB3.0, SIM
  • M.2 E Key: Type 2230, Supports PCIe 3.0 x1,USB2.0, Intel CNVio

    • Security
  • TPM: Built-in TPM (2.0)

    • Power
  • Power Input: 5.5mm x 2.1mm DC Jack: DC 12~20V
              USB Type C: PD 20V
  • Power Adapter: 19V DC, 4.74A, 90W
  • RTC Battery: CR1220 Battery Holder: 3V
    1.27mm Pitch 2-Pin Connector: 3V

    • Operating System
  • Microsoft Windows: Windows 10, Windows 11
  • Linux: Ubuntu 22.04

    • Environment
  • Operating Temperature: 0~45
  • Relative Humidity: 0%~80%

    • Dimension
  • Form Factor: 3.5", 146 x 102 mm

    • Documents:

  • Product Wiki


    • Documentation
  • Pin-out Diagram
  • Datasheets


    • Tutorials
  • Installing Ubuntu Operating System
  • Using eDP Touch Display
  • Set up Auto Power-on


    • Download

  • Operating System
  • Drivers & Software
  • 3D Model

    • Product Includes:

  • LattePanda Sigma x1
  • Active Cooling Fan (Assembled) x1
  • Metal Protective Bottom Plate x1
  • Thermal Pads for M.2 SSD x2
  • Power Adapter with DC cable x1
  • AC Cable(EU & US & UK) for power adapter x3
  • RTC Battery (Assembledx 1
  • User Manual x 1
  • M.2 NVMe SSD 500GB x1
  • M.2 Intel WiFi 6E Module x1
  • WiFi/BT Antenna x2
