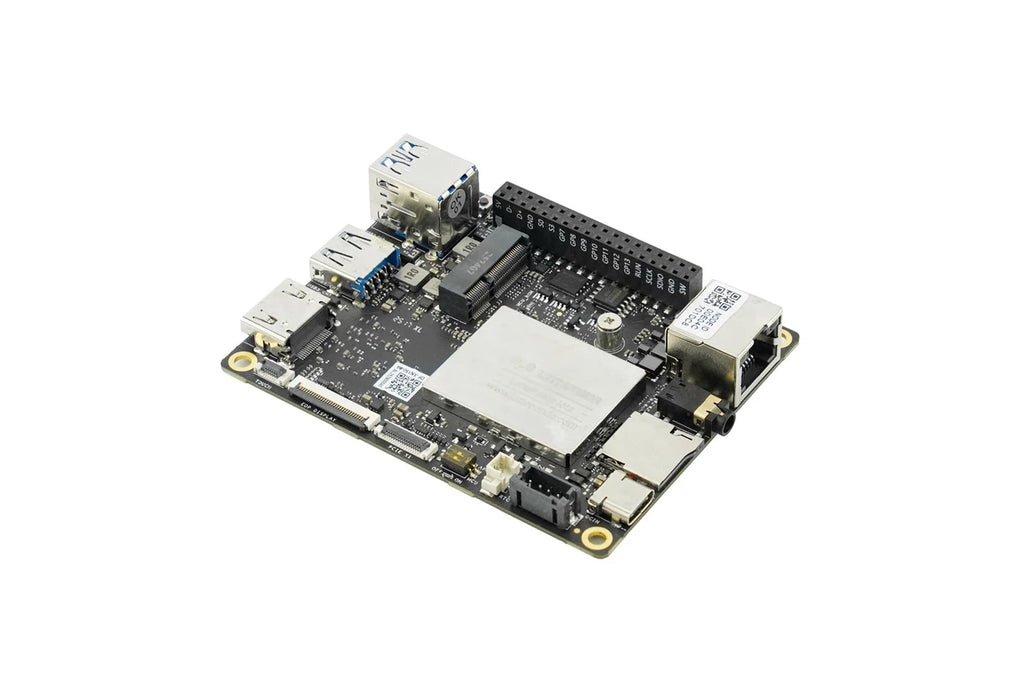

LattePanda IOTA x86 Single Board Computer with Win11 Enterprise License (Intel N150, 12GB RAM / 128GB eMMC)

LattePanda IOTA is a palm-sized, high-performance x86 single-board computer (SBC), engineered as a bridge between rapid prototyping and commercial deployment. As the next generation of the classic LattePanda V1, It integrates a powerful Intel Processor N150 with a versatile RP2040 co-processor, delivering a significant leap in computing power within a compact footprint. Key differentiators include its high speed LPDDR5 memory with IBECC for enhanced reliability, broad compatibility with desktop operating systems like Windows and Ubuntu, and a range of hardware configurations to meet diverse performance and budget needs. Designed for seamless system upgrades and future-proof applications, the LattePanda IOTA is the definitive choice for industrial automation, intelligent gateways, advanced robotics, and interactive digital installations.

Seamless Upgrade: Retains the classic LattePanda V1 form factor for easy project migration

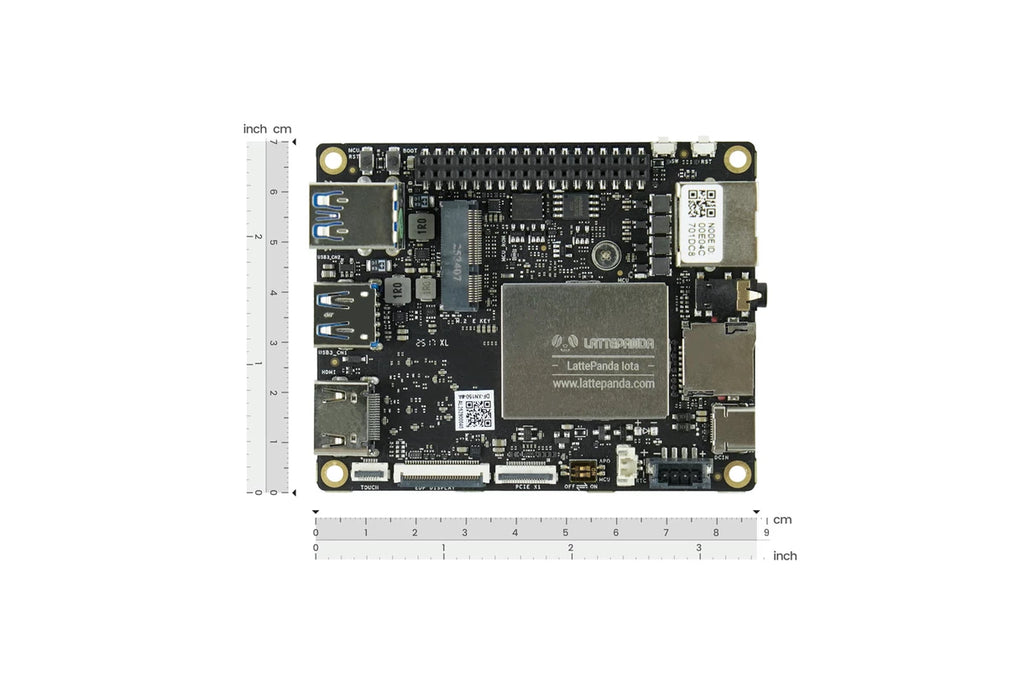

Maintaining the compact design (88mm x 70mm) and interface layout of the LattePanda V1, LattePanda IOTA enables effortless upgrades nearly without mechanical redesign or enclosure modifications, significantly reducing development time and preserving project continuity.

8x Faster Performance

With the Intel Twin Lake N150 quad-core processor (up to 3.6GHz) and LPDDR5 high-speed memory, LattePanda IOTA offers 8x the CPU performance of LattePanda V1, ensuring ample performance and multitasking capability for most applications.

Palm-Sized Design

Measuring only 88mm x 70mm, this compact LattePanda IOTA can be easily embedded into space-constrained applications like robots, smart terminals, and portable inspection devices—greatly expanding deployment possibilities for embedded systems at the edge.

Flexibility in Performance and Energy

LattePanda IOTA supports a configurable TDP (thermal design power) ranging from 6W to 15W, allowing you to balance power consumption and performance according to the application scenario.

• 6W mode: Enables fanless, silent operation, suitable for noise-sensitive embedded systems or quiet environments.
• 15W mode: Utilized with an active cooler to full performance, easily handling high-load computing tasks.

Rich I/O Connectivity

LattePanda IOTA provides a practical and comprehensive set of interfaces, including 3x USB 3.2 Gen2 (10 Gbps) ports, a Gigabit Ethernet port, HDMI 2.1 and eDP dual video outputs, plus M.2 E-Key and PCIe FPC expansion interfaces, which easily meets various peripheral connections through a single board.

Intel N150 + RP2040, Dual-Processor Collaboration

Alongside the Intel N150 processor, LattePanda IOTA also integrates an RP2040 co-processor, which features a dual-core Arm Cortex-M0+, offers abundant GPIOs, and can be dedicated to real-time I/O control, sensor data acquisition, motor drive tasks, or even emulate a custom HID device. This design effectively reduces the load on the main processor and enhances system responsiveness and functional versatility.

Various Expansion Boards

With dedicated expansion boards, the LattePanda IOTA can easily enhances its key capabilities:

• UPS Expansion Board: A plug-and-play uninterruptible power supply. It provides up to 8 hours of runtime, auto power-on, and safe shutdown to protect the project from power loss. (Note: 18650 Batteries not included).
• 51W PoE Expansion Board: Power the IOTA and get Gigabit data through a single Ethernet cable. Compliant with the IEEE 802.3bt standard, it's perfect for remote installations.
• M.2 M-Key Expansion Board: Add a standard M.2 M-Key slot to the IOTA. Use it to connect a high-speed NVMe SSD for massive storage expansion or an AI accelerator card for edge computing tasks.
• M.2 4G LTE Expansion Board: Grant the IOTA cellular network connectivity. Perfect for remote monitoring, mobile robots, and field-deployed devices. (Note: 4G LTE module and SIM card are not included).

Recommended Accessories

For a complete out-of-the-box experience, we highly recommend the LattePanda IOTA Accessories Kit, which includes the required heatsink, wifi modules, and other essential components.

Important Notice

• Heatsink Required: To ensure stable performance and prevent damage from overheating, a heatsink must be installed on the board before its first use.
• No Operating System Included: This model does not come with a pre-installed OS. You will need to provide and install your own licensed operating system (e.g., Windows, Ubuntu).

Features:

• Windows 11 IoT Enterprise LTSC 2024 license sticker is included.
• Retains the compact form factor and interface layout of the LattePanda V1
• Intel N150 processor (up to 3.6 GHz, 4 cores / 4 threads)
• Onboard 16GB LPDDR5 memory, supports IBECC
• Onboard 128GB eMMC storage
• Configurable TDP: 6 W to 15 W
• Multi-OS support: Windows 10, Windows 11, Ubuntu
• Rich expansion interfaces, including: 3× USB 3.2 Gen 2 (10 Gbps) ports, Gigabit Ethernet, HDMI 2.1 and eDP dual video outputs, M.2 E-Key and PCIe FPC expansion interfaces
• Flexible expansion board options, supporting M.2 M-Key (NVMe storage expansion or AI acceleration), PoE, UPS, 4G LTE and other modules

Specification:

• Processor: Intel® Processor N150, 4C / 4T, up to 3.60 GHz
• Memory: 16GB LPDDR5 4800MT/s with IBECC supported
• Storage: 128GB eMMC 5.1
• Display:
          HDMI 2.1, up to 4096 x 2160@60Hz
          eDP 1.4b, 2 Lanes, up to 1920 x 1080@60Hz
• USB Ports:
          3x USB 3.2 Gen 2 Type A(10Gbps)
          1x USB 2.0 Pin Header
          1x USB Type-C PD 15V(Power supply only)
• Network: 1x 1GbE RJ45 Port (Support WOL)
• Expansion Slots:
          1x M.2 E Key 2230 Slot
          1x TF Card Slot
          1x PCIe FPC Connector
• Co-processor: RP2040 MCU
• GPIO & Other Features
          Up to 3x Analog Inputs
          Up to 16x Digital Input/Output
          1x UART
          1x USB 2.0
          1x PH2.0 4-Pin Connector(for power input)
          1x RTC Battery Connector
          1x DIP Switch
          1x Power Management Connector
          1x Fan Port
• Audio: 3.5mm Microphone Headphone Combo Connector
• Operating System: Windows (Pre-activated), supports Windows 10/11, Ubuntu 22.04/24.04
• Environment: 0~60°C; 0~80% relative humidity
• Power Supply:
          USB Type-C: PD 15V
          PH2.0 4-Pin Connector: 10-15V DC
• Size: 88mm x 70mm x 19mm

  Documents:

• Product Wiki
• LattePanda V1 Migration Guide

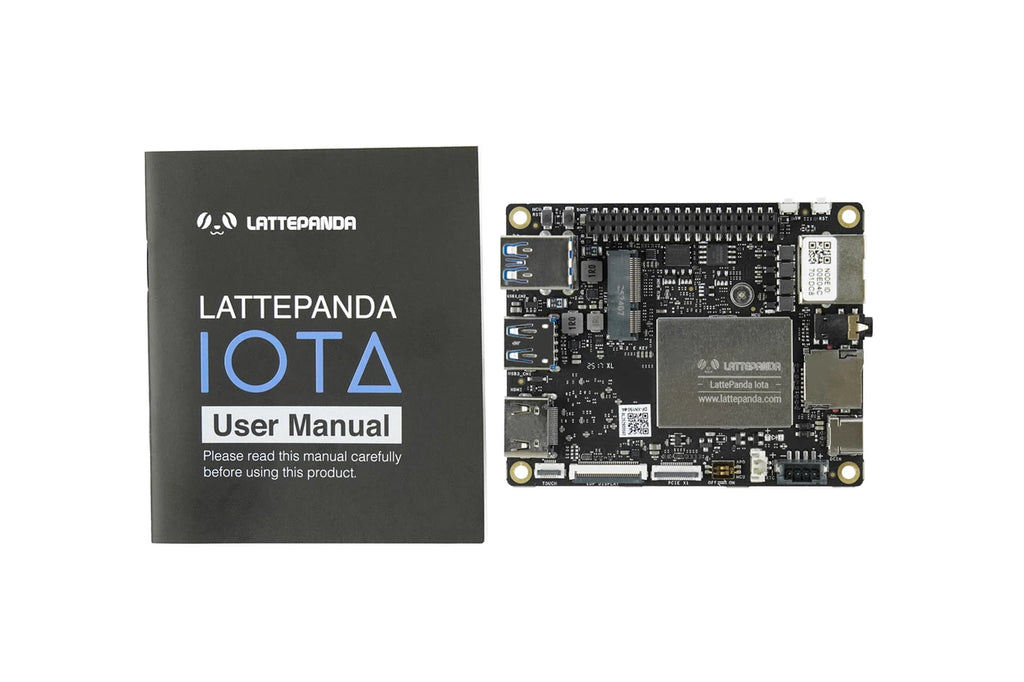

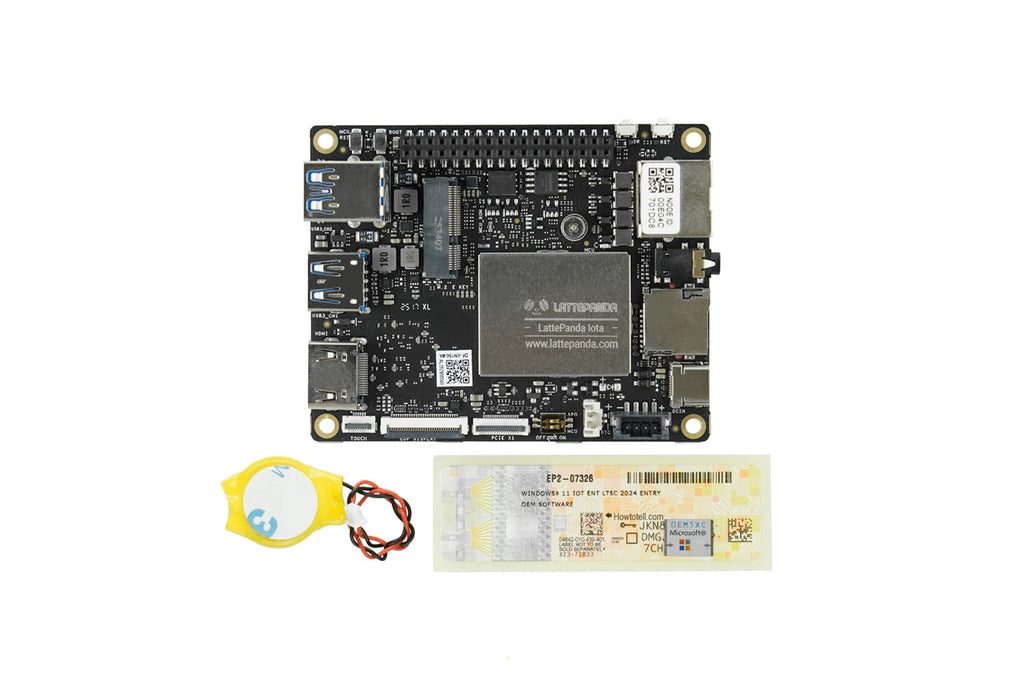

Product Includes:

• LattePanda IOTA (N150 16GB/128GB) with Windows IoT Enterprise OS x1
• CR2032 3V RTC Battery x1
• Product Manual x1
