Kittenbot Meowbit - Card-sized Graphical Retro Game Computer (without battery)

Price:
Sale price A$80.45   Inc. GST
SKU:
SS102991182
Out Of Stock

We will notify you when this product becomes available.

It does not include the battery and USB

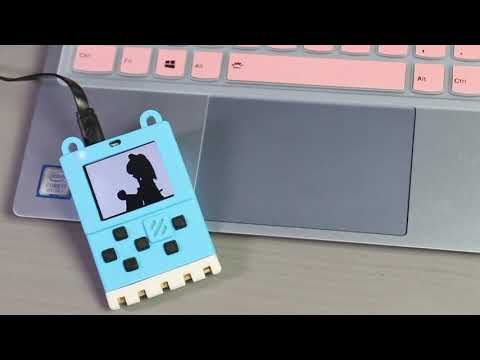

Meowbit is a card-sized graphical retro game computer with allows you coding with Makecode arcade and Python. In other words, it can use combines game programming with hardware devices.

Meowbit is a card-sized graphical programming video game console designed for teenagers. It contains 1.8' full-color screen, 6 x programmable buttons ,1 x buzzer, built-in light sensor, temperature sensor, SD card slot (For external storage), multiplayer connector and edge connector. Especially the edge connector could access most micro:bit expansion boards. We recommend using Robot:bit for Mewobit, it can help you create a robot quickly.

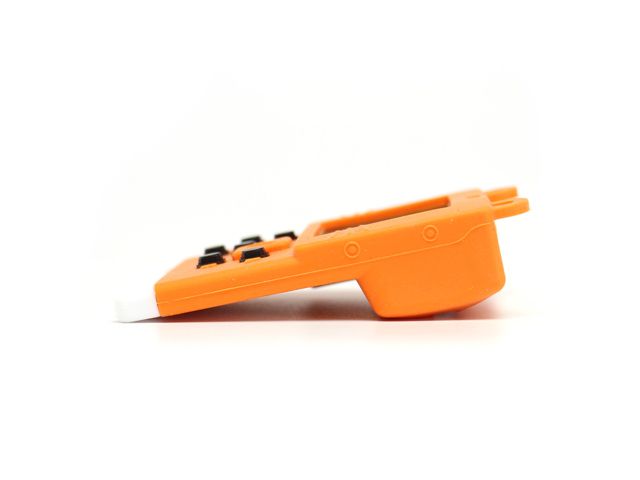

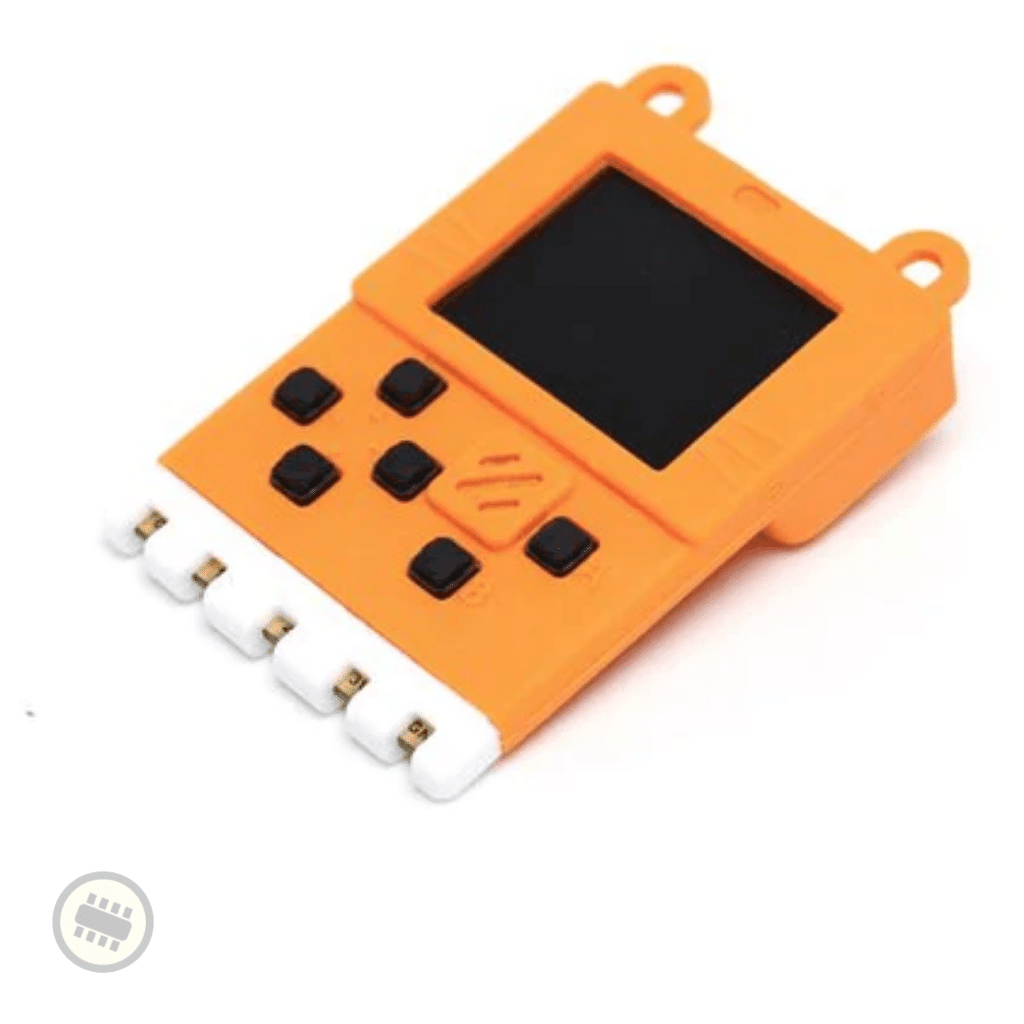

Please note the sleeve of the Meowbit randomly comes in BLUE/ORANGE



Features





● 160 x 128 full-color TFT LCD provides a more vivid interactive interface

 Easy to use graphical programming, learning while playing experience through game programming

 Cross-cutting functions including hardware and software

 Abundant hardware resources made infinite possibility possible

 Support multi-platform including Makecode arcade, Kittenblock, scratch3.0, MicroPython; support multi-language

 Support diagraming, showing the data changing of the sensors more intuitive

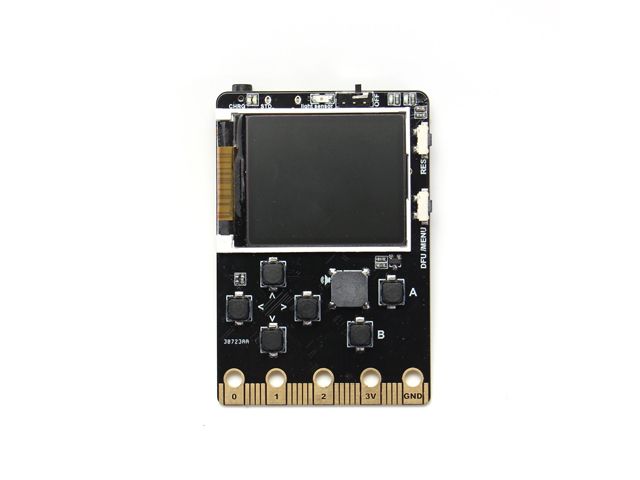

meowbit features

Hardwares

1. Charging/work indicator
2. Light sensor
3. Power switch
4. Programmable led x 2
5. Reset
6. DFU mode button
7. 160 x 128 TFT color screen
8. Temperature sensor
9. Direction button x 4
10. Buzzer

11. Button A/B
12. Compatible with micro:bit’s 40 PINs Goldfinger
13. USB program download port / charging port
14. SD card slot (Use for store programs or extend wireless modules)
15. Multiplayer Connector
16. mp6050 gyroscope
17. 3.7V lithium battery package interface
18. MCU
19. 2MByte SPI-flash (default download Unicode character table)
20. Signature area

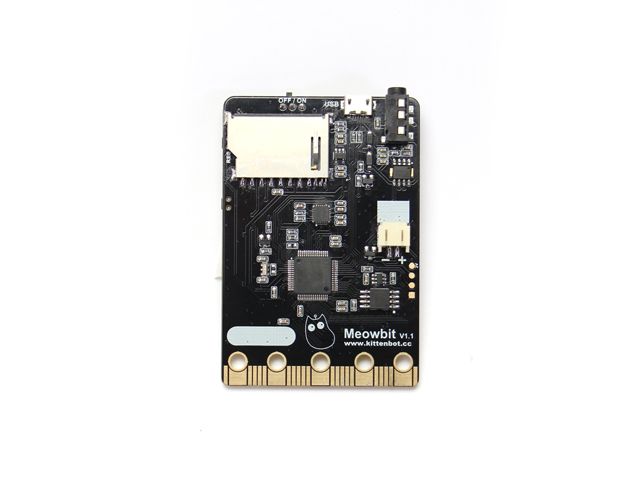

meowbit hardware













Parameters

 MCU:STM32F401RET6, 32-bit ARM Cortex M4 core

 Operating voltage: 3.3V

 Supply voltage:USB(5V), Lithium battery pack(3.7~4.2V)

 Output current: 500mA(max)

 Dimensions: 52x76x12(mm)

● MacOS, Windows7 and above













Programming mode





 Makecode Arcade graphical programming mode

 MicroPython programming mode



arcade.makecode



Scenarios



what meowbit can be

Part List

  • Meowbit x 1
  • Silicone Sleeve for Meowbit x 1
  • Not included: 6x40x20mm 3.7V 450mAh Lithium Ion Battery with JST 2.0mm PH, 2-Pin connectorx1

meowbit - Battery

ECCN/HTS

ECCN3A991.a
HSCODE8543709990
USHSCODE85177000
UPC
