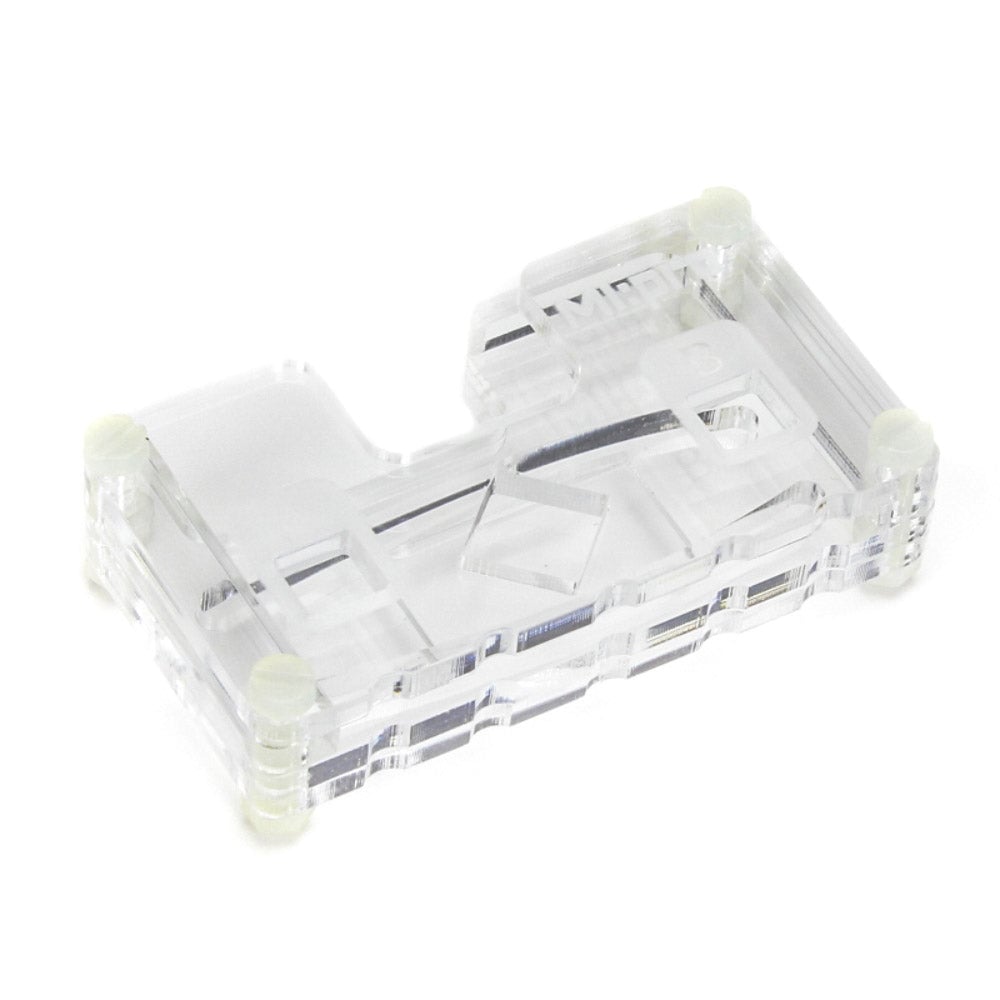

Kitronik MI:pro Protector Case for the BBC micro:bit V1 & V2 - Clear

This Kitronik MI:pro Protector Case for the BBC micro:bit has been designed to work with both the original micro:bit V1 and the new micro:bit V2 and continues in the traditions of our earlier cases. The cases are designed to keep the micro:bit safe, fully useable, and to offer the freedom of not being tethered to a computer.

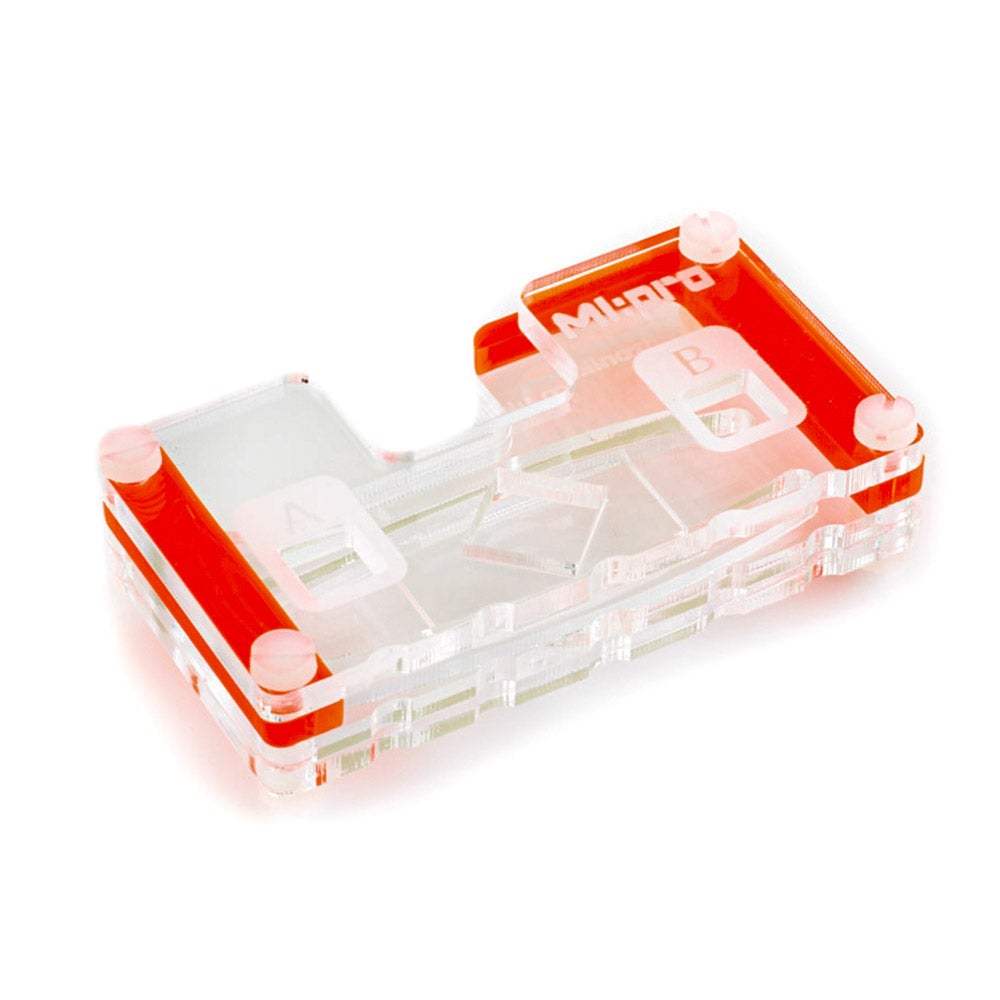

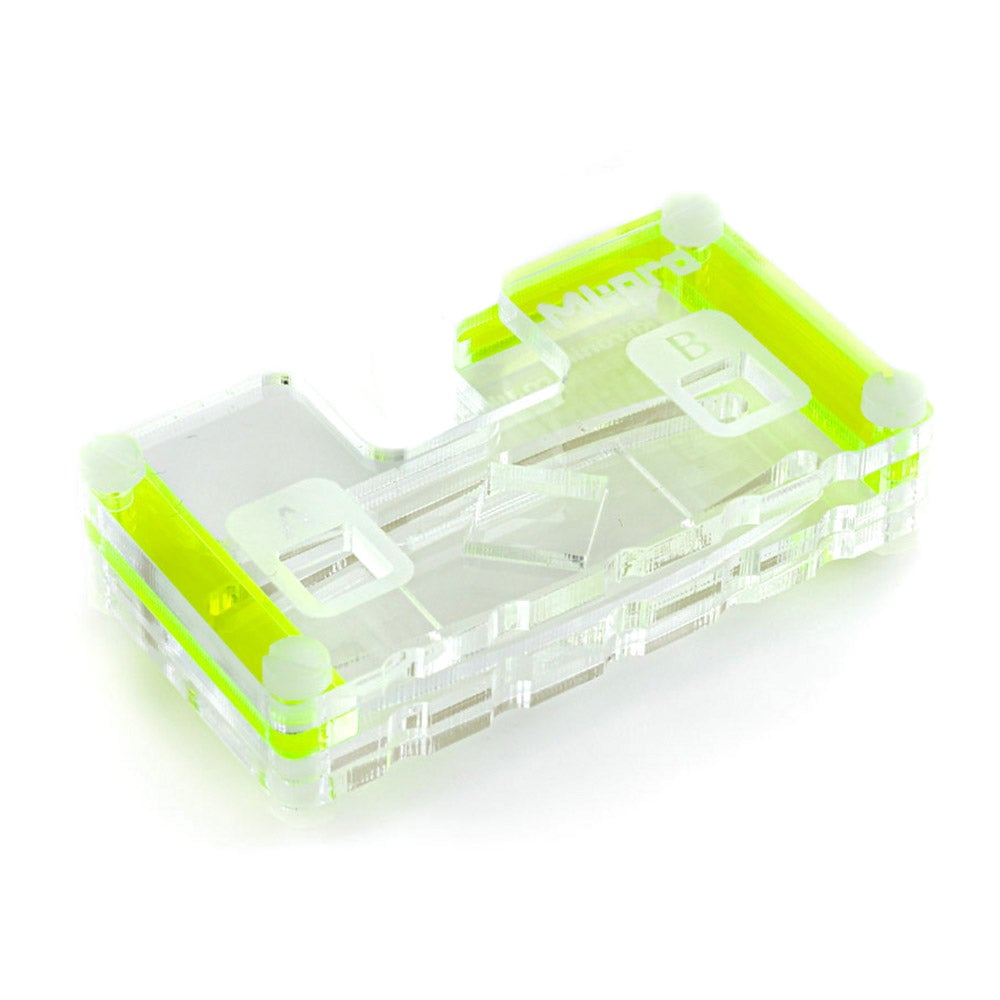

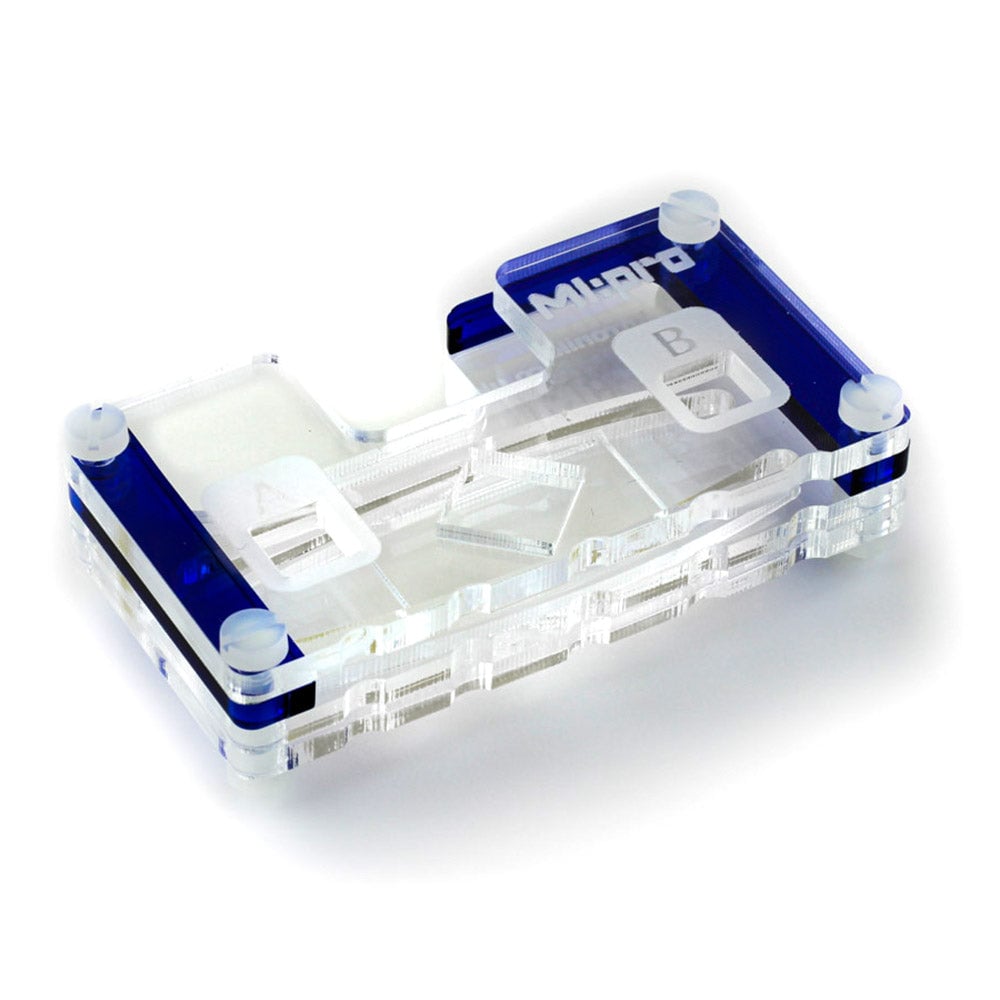

The case is available in 4 different colour options. They are; Clear, Blue, Green, and Orange. The colours don’t only look great, they can be used to differentiate between different people’s cases. Handy! All of the cases are identical in all other regards.

If a battery holder is attached to the back it can also can be stood neatly on a desk and it also features large and easy to read labels for the A and B buttons. This case provides full access to the bottom pins on the BBC micro:bit so the Edge Connector Breakout Board for BBC micro:bit can be used. One of the key features of the micro:bit is its physical size and this case has been designed with that in mind. It’s as compact as we could make it, whilst still offering protection for the micro:bit.

The case is also supplied with a sticky fixer pad so that you can attach a battery holder to the rear of the case, such as can be found in our BBC micro:bit Starter Kit. When a battery holder is used, micro:bit projects can go wherever you go. Even with a battery holder attached, the case is still palm-sized and portable.

The case is easy to assemble and we have included a guide in PDF form that can be found at the foot of this product description.

Note:

• This case requires assembly, full instructions can be found in the resources section.
• The BBC micro:bit is NOT included. If you also require a BBC micro:bit, you can order a micro:bit V1 or a micro:bit V2.

Features:

• Provides excellent protection to the BBC micro:bit whilst allowing access to the bottom pins.

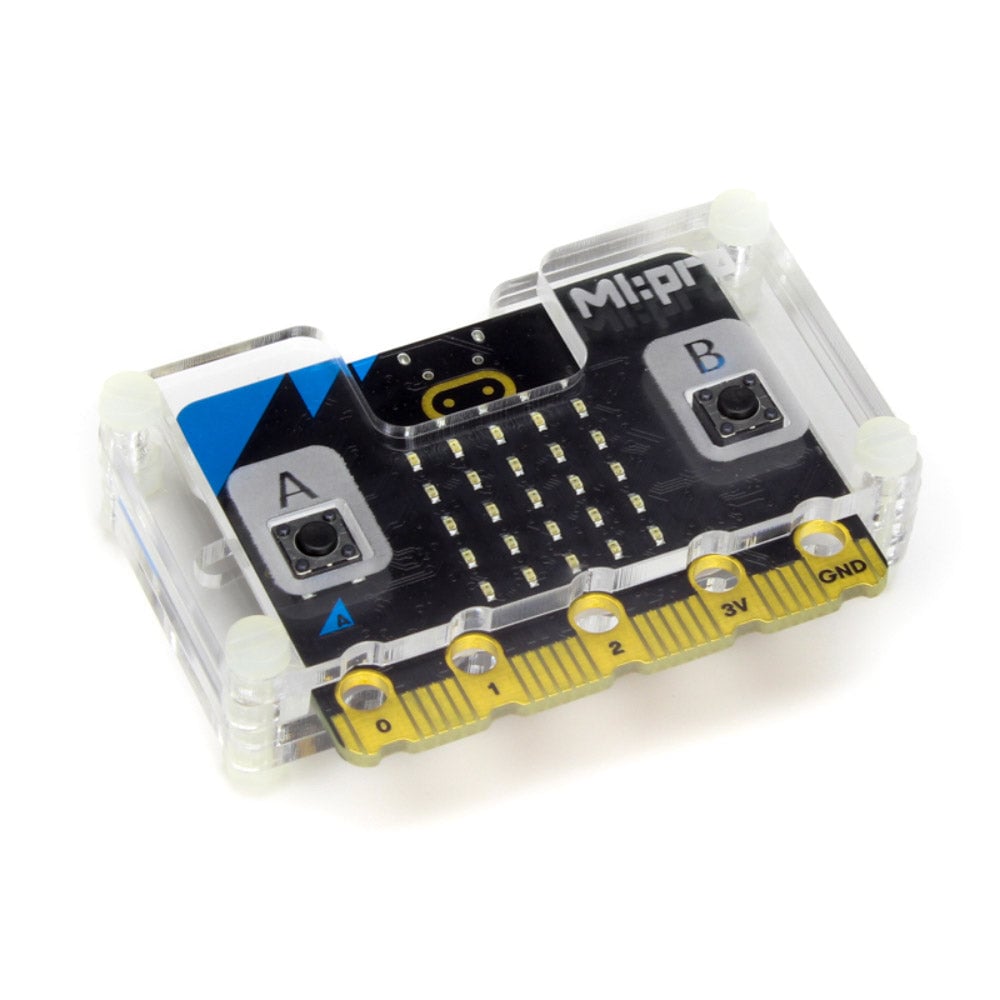

• Full access to the A and B buttons on the BBC micro:bit.
• Attach a battery cage to the rear of the case with the supplied sticky fixer.

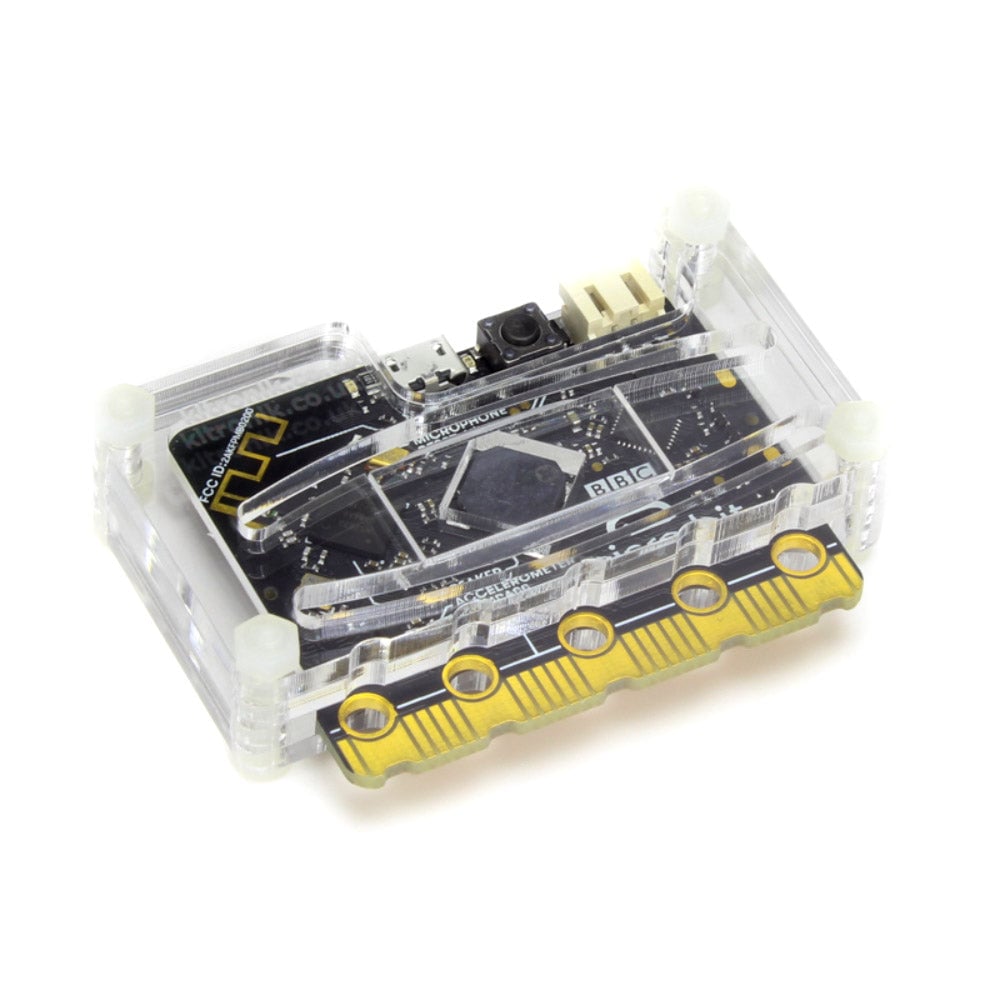

• Full access to pins and connections including the micro USB connector.
• Clear case material shows the on-board LEDs in perfect clarity.
• The case is compatible with versions 1 and 2 of the micro:bit.
• When used in conjunction with a battery holder, micro:bit projects can be fully mobile.
• Available in 4 different colour options; Clear, Blue, Green, and Orange.

Contents:

• 4 x M3 Cheese Head Nylon Machine Screw.
• 1 x Sticky Fixer Pad.
• 4 x M3 Nylon Full Nut.
• Laser-cut parts;
• 1 x Back Mounting Plate.
• 2 x Mid-layer Parts.
• 1 x Mid-layer Plate.
• 1 x Front Plate.

Colour Variants:

• Clear – 56102
• Blue – 56102-B
• Green – 56102-G
• Orange – 56102-O

Dimensions:

• Length: 65mm.
• Width: 37mm.
• Depth (without screws): 12mm.
• Depth (with screws): 18.5mm.

Video:

Requires:

• Flat-head Screwdriver.
• One of the following:
• A BBC micro:bit V1 or BBC micro:bit V2.
• BBC micro:bit Starter Pack V1 or BBC micro:bit Starter Pack V2.

Resources:

• Assembly Instructions.
