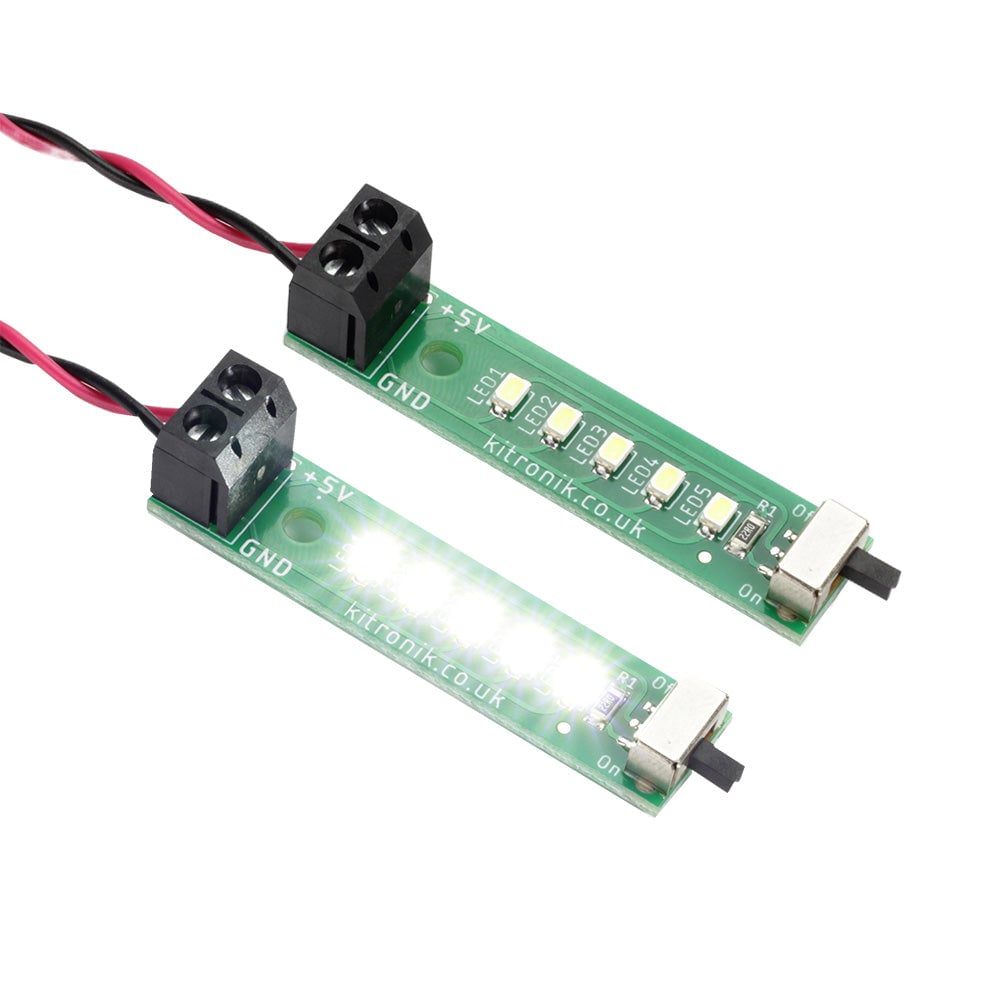

The Kitronik LED Strip with Solder Free Connections is a board designed for low-power lighting, such as desk lamps or accent lights. The board is designed to require no soldering and only minimal tool use connecting wires to the power supply terminal blocks. Its discreet size and straightforward layout make it the perfect platform for designing creative lighting enclosures.

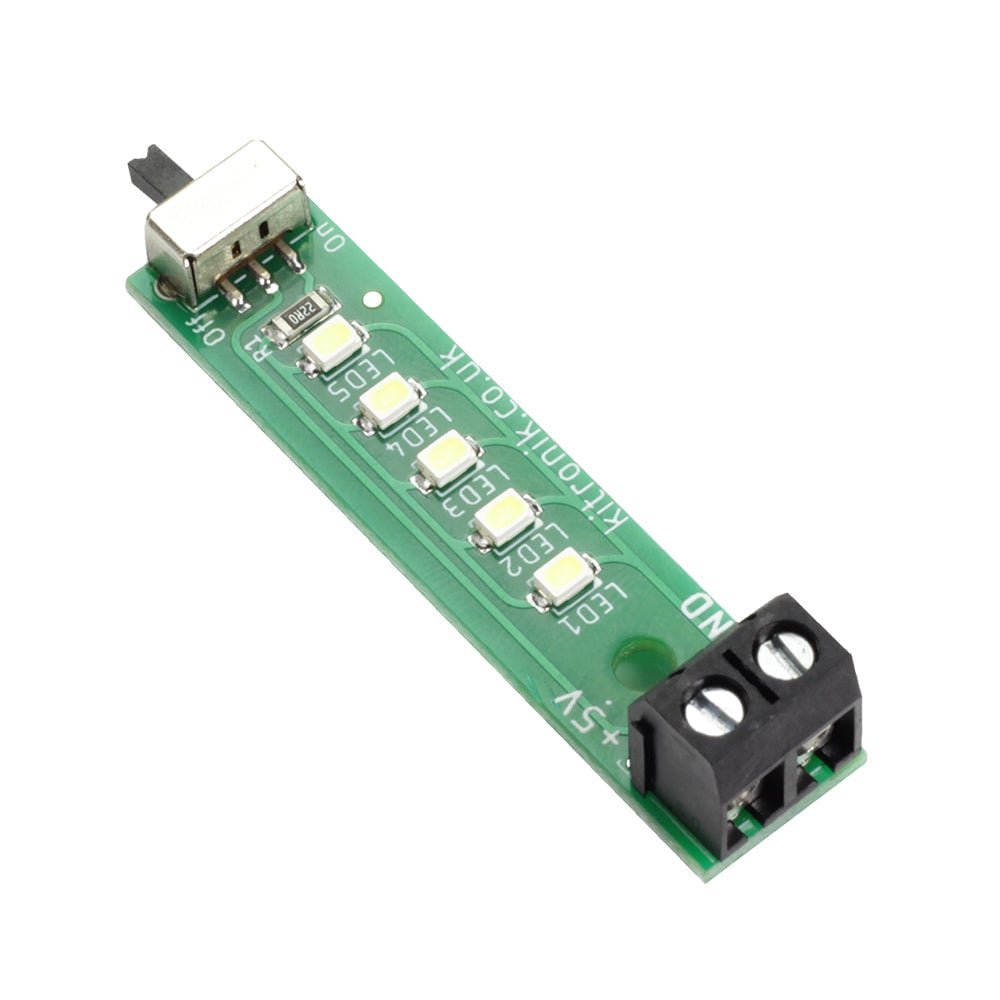

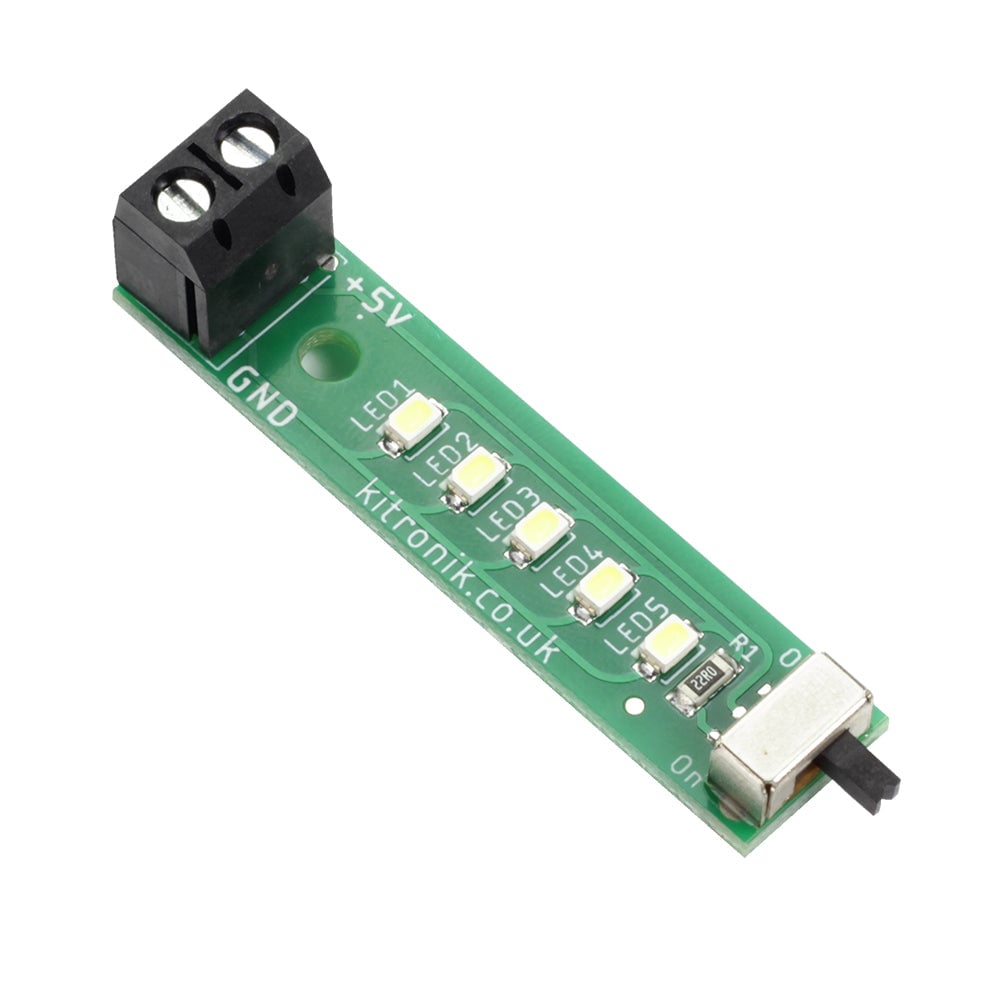

The board features terminal block-style power connectors for a solder-free experience at one end, and an on/off switch at the other for controlling power to the LEDs. There are 5 white LEDs that have a luminous intensity of ~8000mCd.
The PCB is approximately 50mm long, 12mm wide, and features a single, M3 mounting hole. The mounting hole allows the user to fix the board securely to a surface or enclosure.

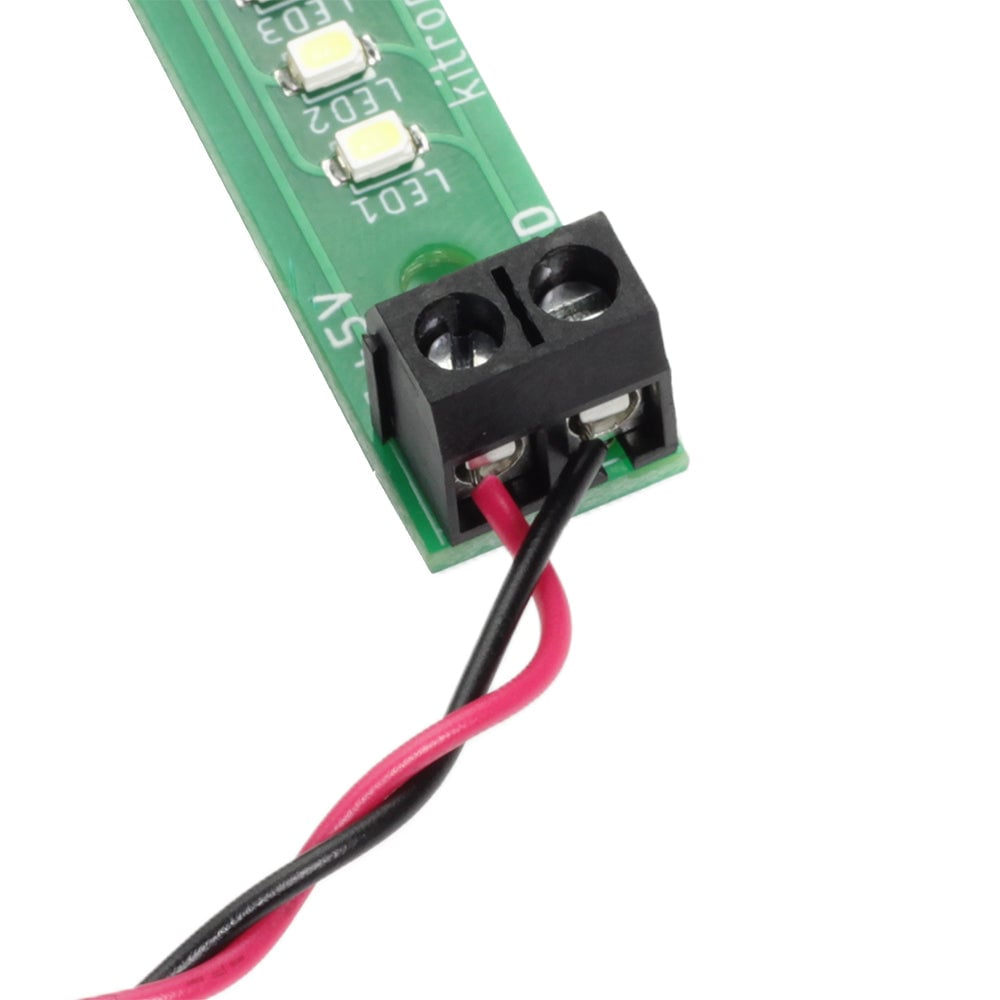

Power is provided via the solderless terminal block connectors. The board is rated for a max of 5V and care should be taken connecting power to the board. Supplying the board with more than 5V or connecting the supply in the wrong polarity will likely cause permanent damage. 3 x AA batteries are perfect for powering this board and a battery holder with flying leads offers the best way of connecting the batteries to it.
Note:
- Warning: Supplying the board with more than 5V or connecting the supply in the wrong polarity will likely cause permanent damage.
- Soldering is not required.
Features:
- A low-power (under 100mA) power LED lighting board that can be used in enclosure designs.
- The board is designed to require no soldering and only minimal tool use connecting wires to the power supply terminal blocks.
- There is an onboard on/off switch.
- Its discreet size and thoughtful layout make it easy to design an enclosure around.
- The PCB is approximately 50mm long, 12mm wide, and features a single, M3 mounting hole.
Contents:
- 1 x Kitronik LED Strip with Solder Free Connections.
Dimensions:
- Length: 50mm.
- Width: 12mm.
- Height: 11.6mm.
Requires:
Resources:
Documents & Downloads
Technical Information
| Attribute | Value |
|---|---|
| Number of LEDs | 5 White LEDs |
| Operational Supply | 5V via terminal block |
| Forward Current | 90mA at 5V |
| Luminous Intensity | ~8000mCd |
| Colour Temperature | 6500k |
| Mounting | Single M3 Hole (3.3mm Dia) |
