Feature
- Jetson Nano Fully Compatible: Support reComputer J1010, reComputerJ1020, Nvidia Jetson Nano
- Essential for high-intensity work: Apply 7 blades fan to establish physical cooling, help to avoid overheating and throttling

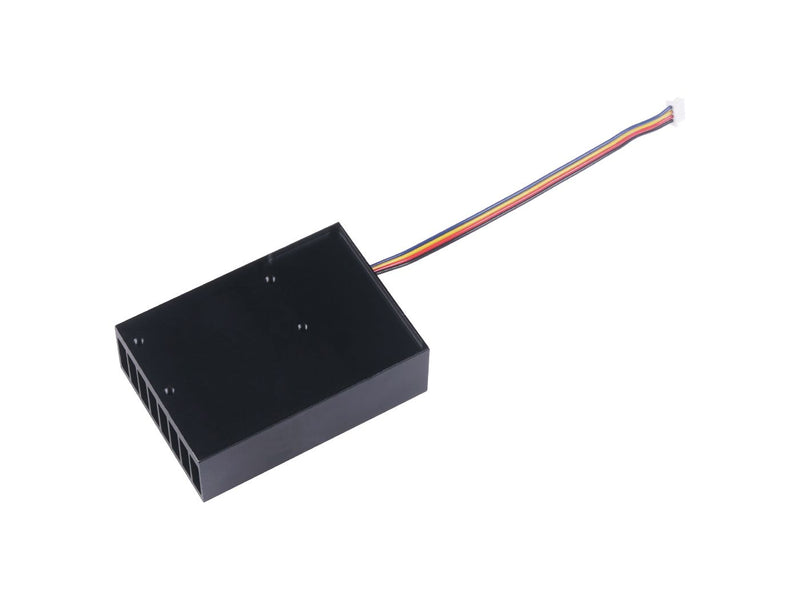

- Effective thermal management: Design in full aluminum alloy heatsink
- Convertible Interface: Support both Graphics Card 4pin connector and Mainboard Standard 4pin connector
- Convenient Installation: Mounting Holes & Screws Included
- Customized Air Speed: Utilize PWM to control the fan speed
Description

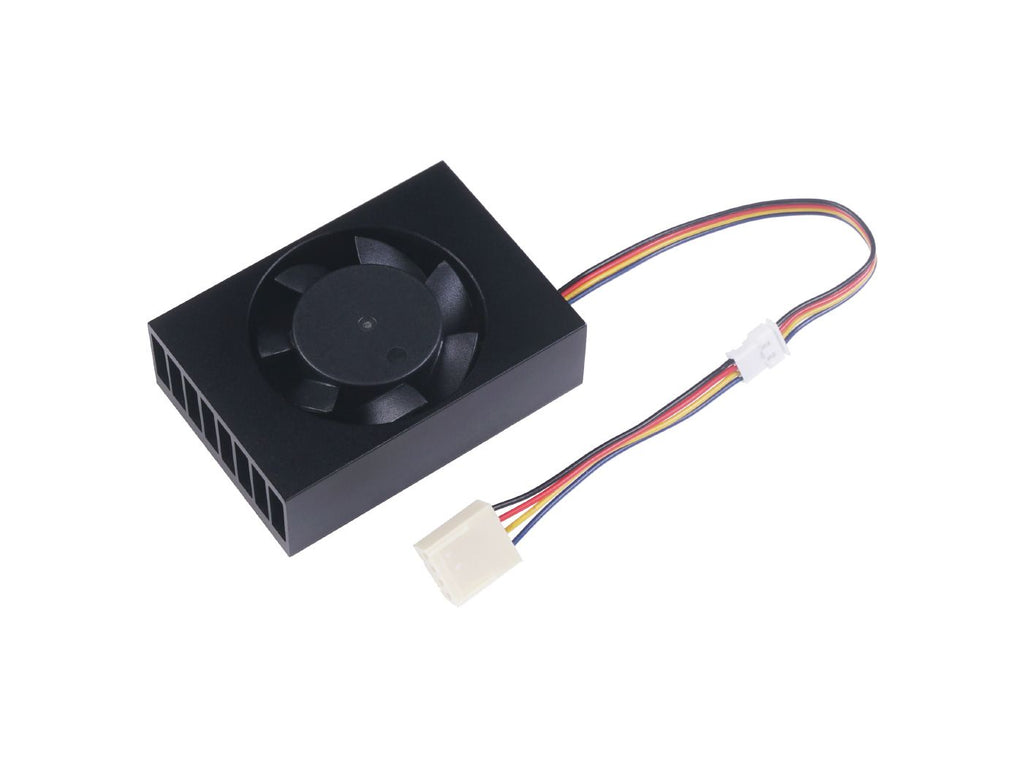

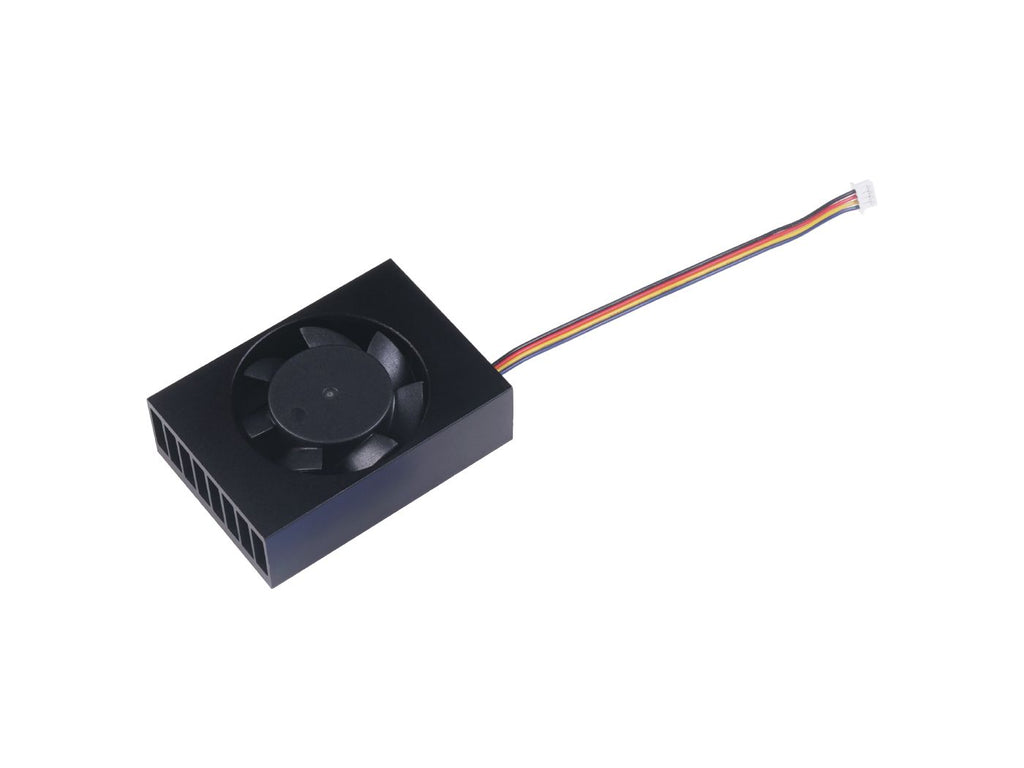

Jetson Nano Module Active Heat Sink offers essential, actively, physical, and strong fan cooling air function for Jetson Nano high-intensity work, help to avoid overheating and throttling problem, fully compatible with Jetson Nano module and A206 & A203 carrier boards, designed for continuous deploying. It can be customized air flow speed through PWM function and it supports official Nvidia Jetson Nano equipment, as well as reComputer J1010 and reComputer J1020.
As a well-known edge AI device, Jetson Nano module is designed for embedded computing application, but the operation it performs will be slow and difficult once the operating heat problem could not be solved in time. The fan applies physical principle, proving flowing air to change the heat dissipation rate of the Jetson Nano module to the air (i.e. the Convection Heat Transfer), helping the module to maintain function running properly.
The Fan product includes 7 blades fan to implement physical cooling for Jetson nano high-intensity work, help to avoid overheating and throttling, and includes convertible Interface, which supports both Graphics Card 4pin connector and Mainboard Standard 4pin connector for different applications. It also includes mounting holes and screws for the convenient installation.
Pinout Definition
| Black | Red | Yellow | Blue |
| - | + | FG(Tachometer Signal) | PWM |
Application
- Jetson Nano Thermal Management
- Jetson Nano Active cooling
Specification
Items | Unit | Parameters | Notes |
Fan Frame | --- | BLACK PBT (UL94V-0) | Glass Fiber Reinforced |
Fan Impeller | --- | BLACK PBT (UL94V-0) | 7 Blades |
Bearing System | Dual Ball Bearing | ||
Rated Power | Watt | 0.4 | At rated Voltage,Measured after 3Mins. |
Rated Speed | RPM | 5500±10% | At rated Voltage,Measured after 3Mins. |
Air Flow | CFM | 2.95 | Maximum In Free Air,Refer to 4.2. |
Air Pressure | mmAq | 2.95 | Maximum When Air Flow = 0 |
Noise Level | dBA | 23.71 | At Rated Speed,Refer to 4.3 |
Motor Protection | Polarity Protection | Yes | |
Part List
| Jetson Nano Module Active Heat Sink | x1 |
| 1.25 mm 4-pin connector | x1 |
1.25mm to 2.54 mm 4-pin connector | x1 |
ECCN/HTS
| HSCODE | 8414599060 |
| UPC |
