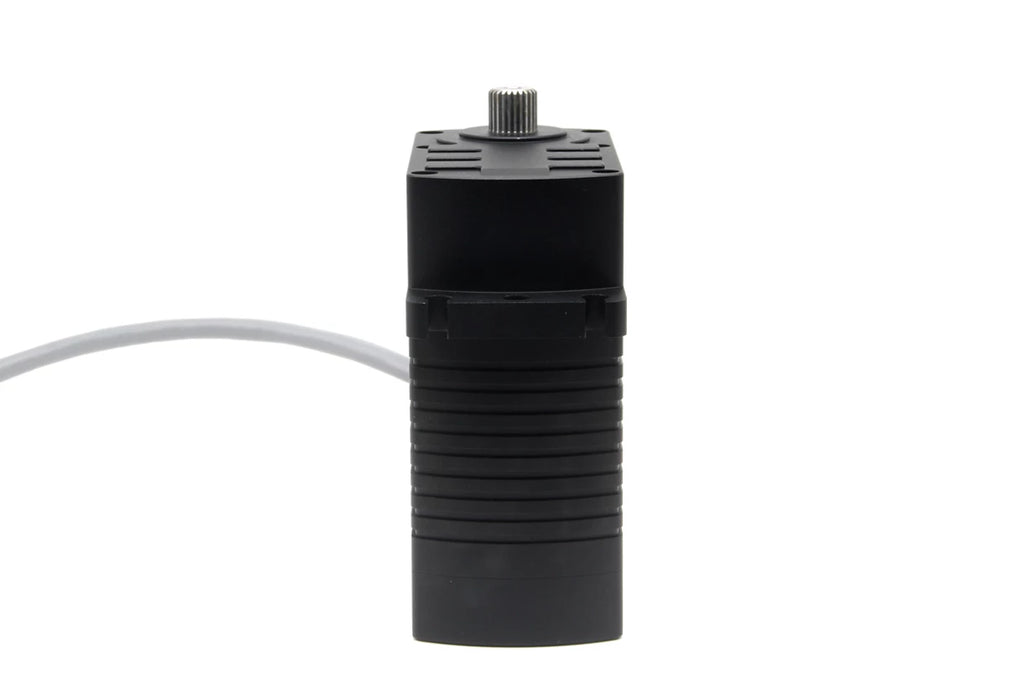

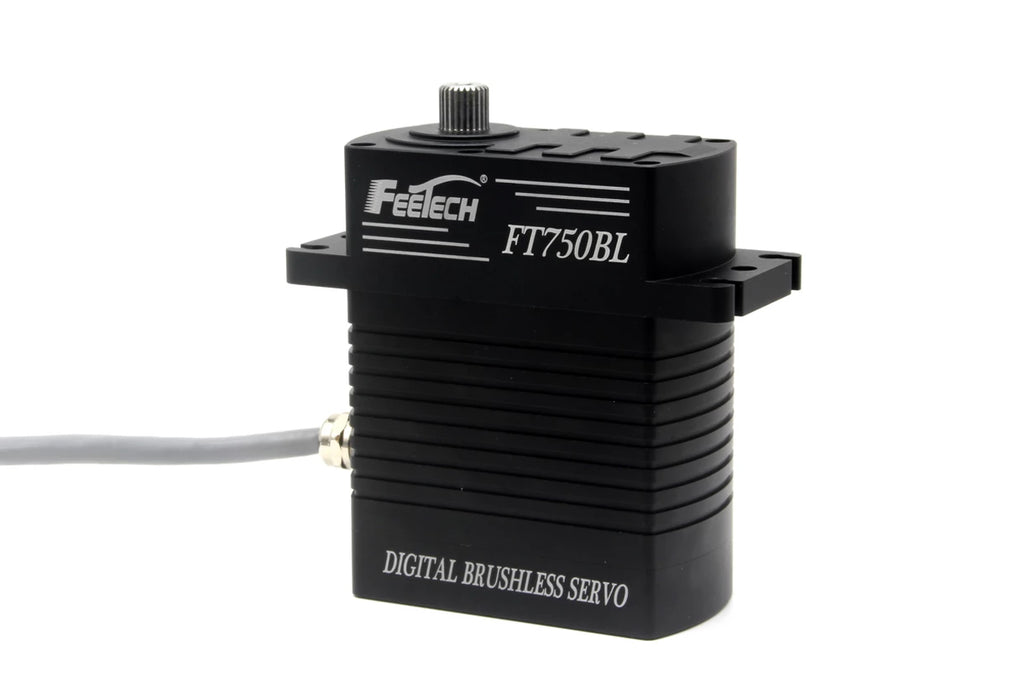

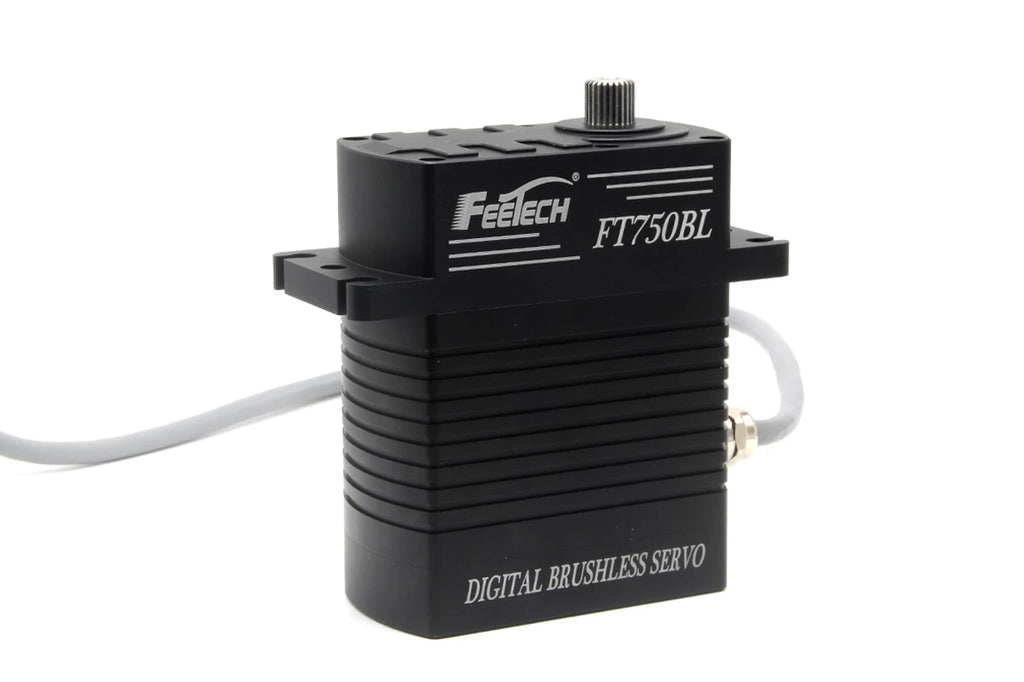

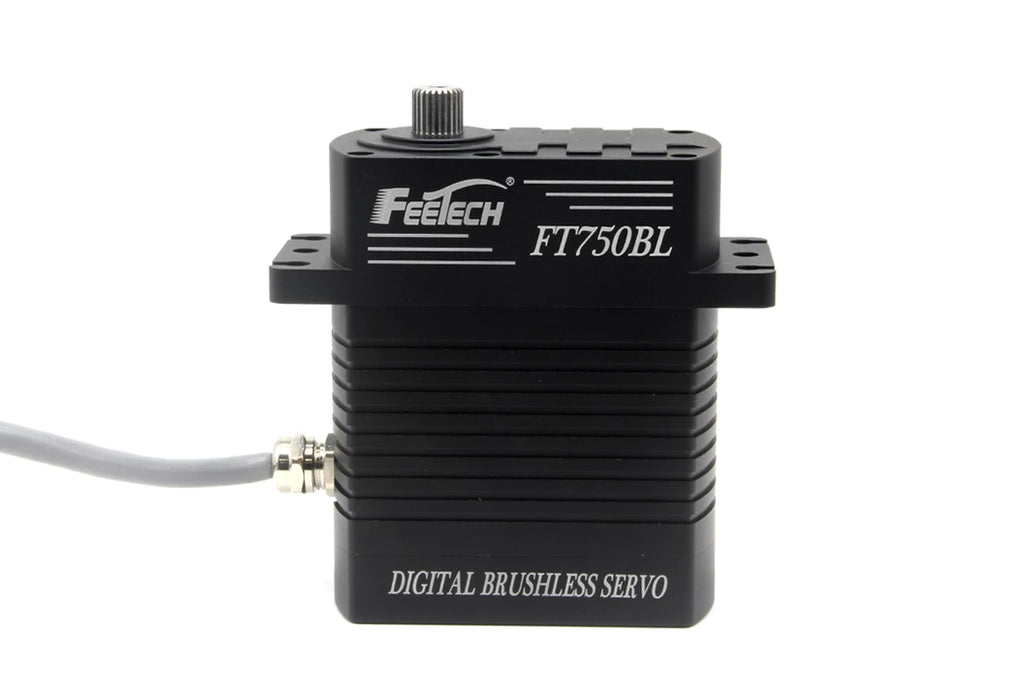

This industrial-grade, high-voltage brushless servo is engineered for applications demanding immense torque, high precision, and exceptional reliability. It integrates a high-efficiency brushless motor with a 12-bit non-contact magnetic encoder, delivering superior performance over traditional servos. The key differentiators are its massive 750kg·cm stall torque at 24V, precise angular control with ±1° deviation, and a rugged, IP65-rated all-metal construction. This combination makes it an ideal actuator for heavy-duty robotics, industrial automation, and marine systems.
Massive 750kg·cm Stall Torque
This 750kg·cm brushless servo is designed to deliver extreme power, providing up to 750kg·cm of stall torque. This immense force is generated by a high-efficiency brushless motor paired with a robust 252:1 all-steel gear reduction system. Such high torque capacity enables the heavy-duty actuator to move heavy loads, overcome significant resistance, and provide stable holding force, making it suitable for the most demanding physical tasks.
High-Precision Magnetic Encoder
For precise and repeatable positioning, this high-precision servo utilizes a 12-bit magnetic encoder instead of a conventional potentiometer. This non-contact sensor technology offers a resolution of 0.09° and ensures an angular deviation of less than 1°. The magnetic encoder is immune to the wear, vibration, and dither issues common in mechanical potentiometers, resulting in significantly longer operational life and consistent accuracy over time.
Industrial-Grade Durability and Reliability
Engineered for longevity and continuous operation, the entire all-metal servo motor is housed in an IP65-rated, sealed aluminum case, protecting internal components from dust and water ingress. The brushless motor design offers a lifespan exceeding 100,000 cycles, far surpassing that of brushed motors. Combined with the wear-resistant steel gears, this industrial servo is built to withstand the rigors of industrial environments without compromising performance.
Designed for Harsh Environments
This high-voltage servo is built to operate reliably under extreme conditions. It functions across a wide temperature range, from -40°C to +60°C, ensuring consistent performance in both freezing and high-heat environments. The IP65 rating further guarantees its resilience against environmental factors, making it a dependable choice for outdoor machinery, marine equipment, and factory floor applications.
Figure: Motion Characteristics Diagram
Applications:
Specification:
Power & Performance
Precision & Control
Built for Tough Jobs
Physical Details
Documents:

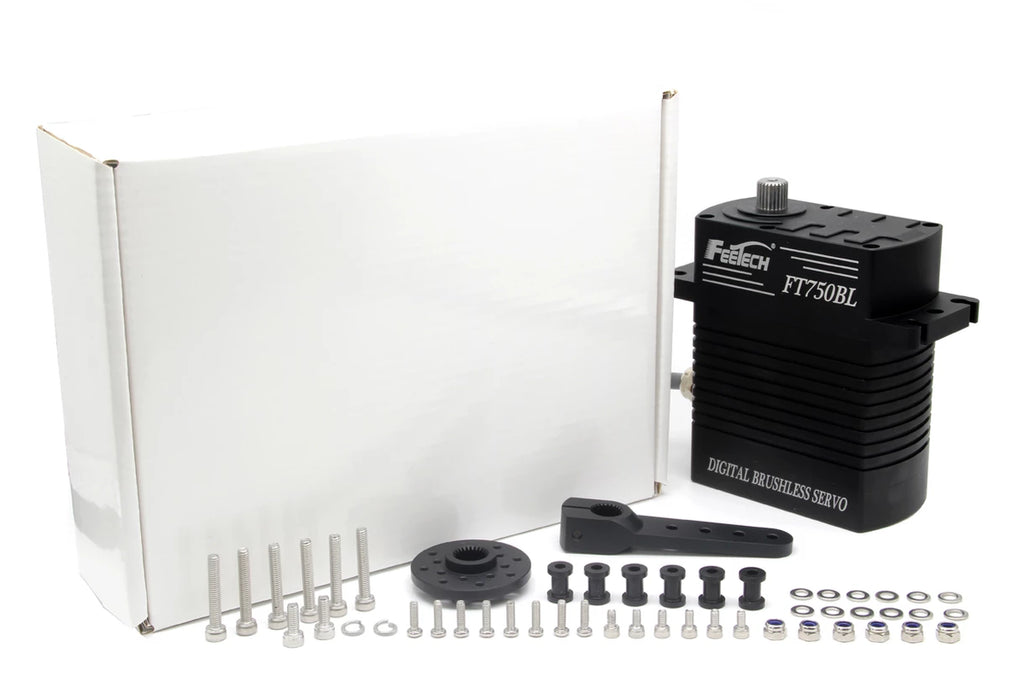

Product Includes:
