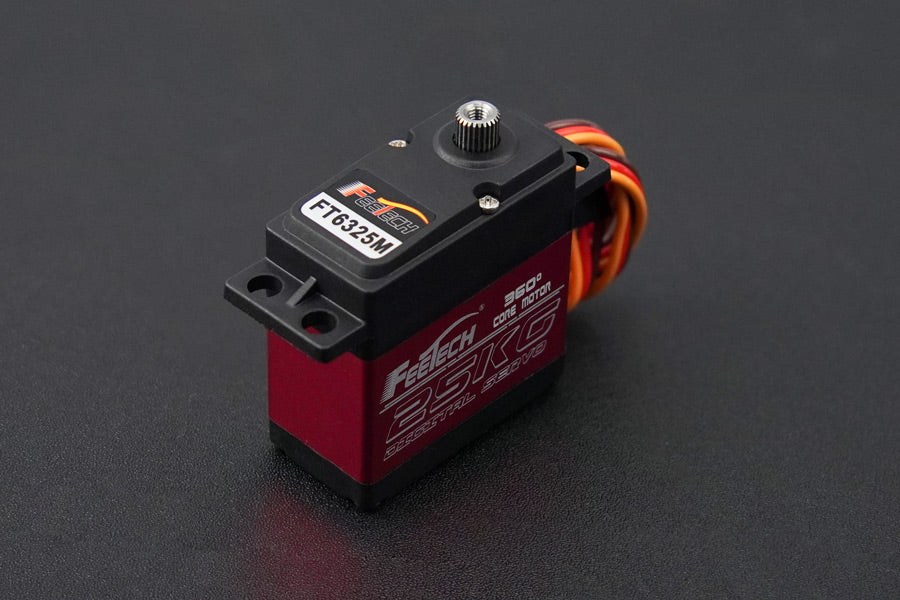

Experience unparalleled performance with this waterproof digital servo featuring a powerful 25kg torque and 12-bit precision magnetic encoder sensor for precise and absolute position control within a 360-degree range. The improved linear motion capability guarantees unparalleled accuracy, making it an exceptional high-torque servo.
Internally, it utilizes a gear system made of reinforced steel gears with an optimized center distance of 2.0, ensuring durability and enhanced power transmission. The servo incorporates a dual ball bearing design for smoother operation and features an aluminum housing that enhances its heat dissipation capabilities, resulting in a longer lifespan.
Additionally, this servo is equipped with electronic and temperature protections, ensuring a safer user experience. In the event of a servo lock-up, it automatically triggers a protective torque output when the torque exceeds the overload capacity for a continuous period of 4 seconds. Moreover, should the servo's temperature surpass 70 degrees, it ceases torque output, only to resume once the temperature drops below 70 degrees.
To enhance its water resistance, the servo's joints are fortified with waterproof gaskets, and the circuit board is coated with a waterproof varnish. Both the motor and the potentiometer are sealed with a specialized adhesive. These measures contribute to the servo's exceptional waterproof capabilities. Moreover, this servo is accompanied by a selection of different-shaped servo horns, enabling its application in a wider range of environments.
Interface Definition Diagram
Dimensional Diagram
Applications:
- Build robots
- Driving part of various automated equipment
Specification:
Electrical characteristics
- Operating Voltage: 5-8.4V
- No-Load Speed: 0.185sec/60°(54RPM)@6V0.151sec/60°(66RPM)@7.4V
- Operating Current: 100mA@6V120mA@7.4V
- Stall Torque: 20.5kg.cm/285.19oz.in@6V25kg.cm/347.79oz.in@7.4V
- Stall Current: 3A@6V3.5A@7.4V
- Static Current: 6mA
- Rated Load: 7kg.cm@6V8.5kg.cm@7.4V
- Rated Current: 1000mA@6V1200mA@7.4V
- Kt Constant: 7kg.cm/A
Control characteristics
- Control Signal: PWM
- Angle: 360° (at 500→2500µsec)
- Angle Difference: ≤1°
- Return Difference: ≤1°
- Neutral Position: 1500µsec
- Dead Band Width: ≤4µsec
- Rotation Direction: Counterclockwise (from 1500 → 2000µsec)
- Pulse Width Range: 500→2500µsec
- Signal High Voltage: 2-5V
- Signal Low Voltage: 0-0.45V
- Signal Period: 20ms
Mechanical specifications
- Casing Material: PA+Aluminum
- Gear Material: Steel
- Bearing Type: Ball Bearing
- Output Shaft: 25T/5.9mm
- Reduction Ratio: 1/275
- Gear Backlash: ≤0.5°
- Arm Backlash: 0°
- Output Shaft Screw: M3X6
Mechanical specifications
- Motor Noise: 45±5dB
- Servo No-Load Noise: 65±5dB
- Waterproof Rating: IP54 (splash-proof)
- Electronic Protection: 4 seconds lock-up
- Temperature Protection: >70°C
- Storage Temperature: -30°C~80°C
- Operating Temperature: -20°C~60°C
Product Includes:
- Metal Magnetic Encoder Servo-25KG 360° x1
- Metal Servo Arm x1
- Servo Horn Accessories Pack x1
