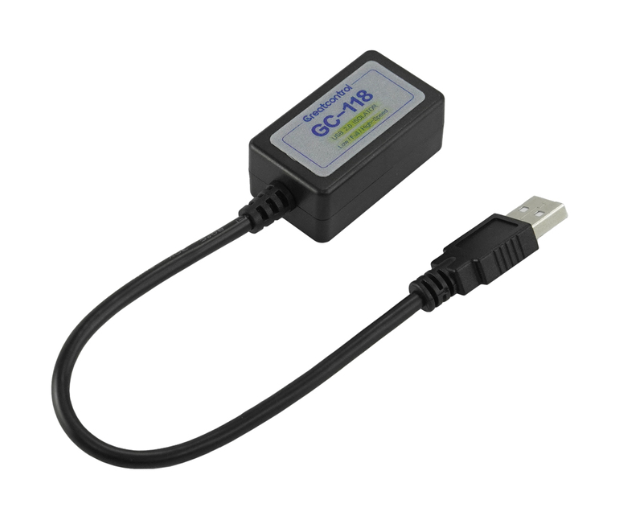

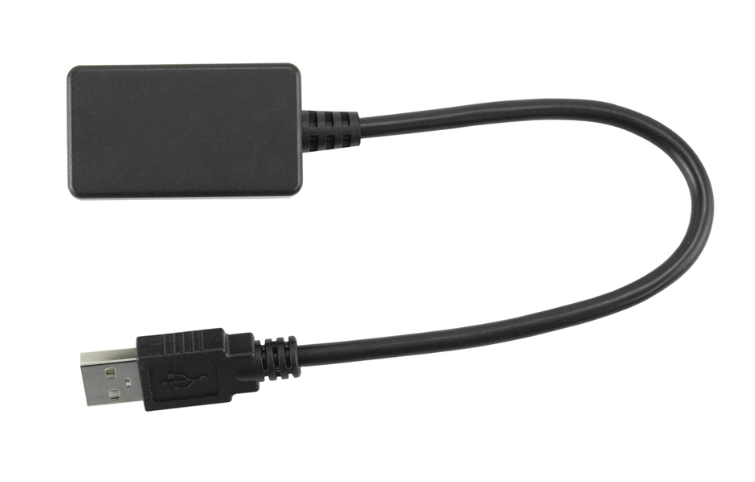

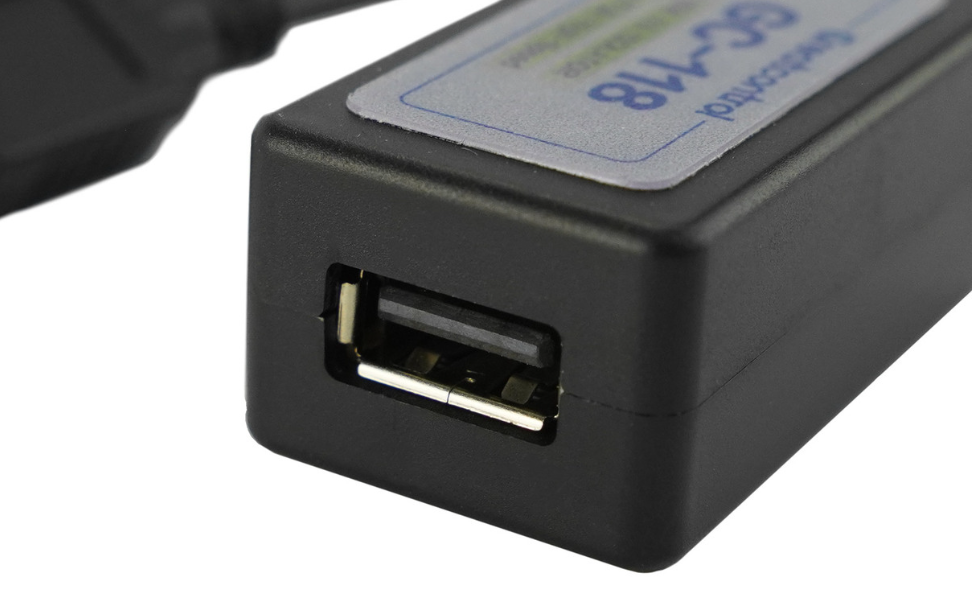

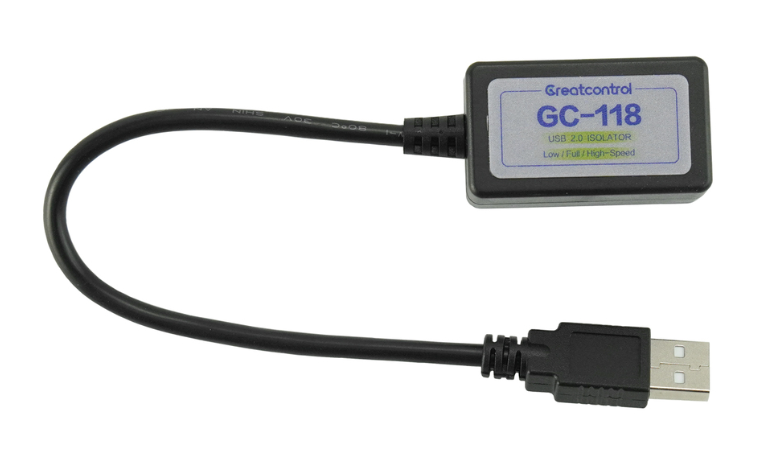

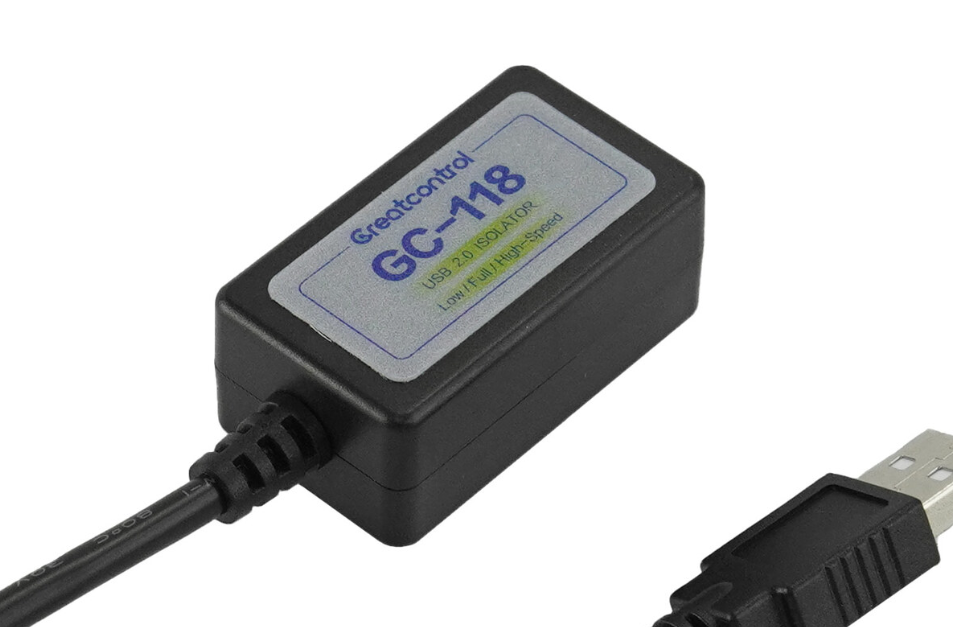

Shield sensitive USB ports from damaging external power interference and signal noise. This 2500V multi-rate industrial-grade USB isolator delivers robust protection for development boards, motherboards, and other critical equipment, ensuring reliable high-speed (480Mbps) data transfer in demanding environments.
Ultimate Electrical Protection
This module employs advanced magnetic isolation technology to create a complete electrical barrier. It effectively isolates ground loops between USB devices, safeguarding against damage from ground loop voltage, surges, induced lightning strikes, static electricity (ESD), and hot-swapping incidents. Expect significantly enhanced communication stability and extended equipment lifespan.
Seamless High-Speed Performance
Experience full USB 2.0 compatibility with driver-free operation. The isolator automatically adapts to Low Speed (1.5Mbps), Full Speed (12Mbps), and High Speed (480Mbps) communication rates, ensuring versatile connectivity for a wide range of devices without performance bottlenecks.
Industrial-Grade Reliability
Engineered for resilience, this USB isolator operates reliably in extreme conditions, from -40°C to 85°C. It's an ideal solution for high-voltage, high-interference environments such as power systems, inverters, and motor drives, as well as noise-sensitive applications like high-precision data acquisition and HIFI audio systems.
Plug-and-Play Simplicity
No external power supply is required for most applications (supports up to 1.5W output). The driver-free design ensures effortless integration with various operating systems, making setup quick and straightforward.
Figure: Dimensions of 2500V multi-rate industrial-grade USB isolator
Figure: Compatible Systems of 2500V multi-rate industrial-grade USB isolator
Usage Notes:The isolated output power is 1.5W. If connected devices require a working current greater than 300mA, an additional external power supply is recommended to ensure proper operation.
Applications:
- Protection in high-voltage, high-interference settings (e.g., power systems, inverters, motor drives).
- Noise reduction in sensitive areas (e.g., high-precision USB data acquisition, HIFI audio systems).
- Safeguarding USB interfaces on development boards and computer motherboards.
Specification:
- Compatibility: Standard USB 2.0, driver-free
- Interface Speed: Auto-adapting:
Low Speed: 1.5Mbps
Full Speed: 12Mbps
High Speed: 480Mbps - Transmission Modes: USB control, batch, interrupt, synchronous/asynchronous
- USB Ports Protection: Independent ESD protection; isolated power and signals for upstream/downstream ports
- Isolation Chip: ADUM3165
- Chip Isolation Voltage: 2500V
- Power Isolation Voltage: 1500V
- Output Power: Max 1.5W (5V/300mA)
- Operating Environment: -40°C to 85°C; 5% to 95% RH (Relative Humidity)
- Dimensions: 50mm x 28mm x 20mm
- Cable Length: 200mm
- Weight: Approx. 40g
Product Includes:
- High-Speed 2500V Multi-Rate Industrial USB 2.0 Isolator
