The Y200 is a 9-axis gyroscope specifically developed for robots. The device supports a maximum power supply of 60V and uses a standard XT30 CAN interface for quick integration into a robot network. It features an internal potting process for excellent shock resistance, and its casing is designed with a reinforced structure for stable and reliable installation.
- Angle Output Provides high accuracy roll/pitch/yaw angle output
- High Performance Offers low-variance and stable accelerometer and gyro measurement
- Shock Resistant Designed with a reinforced structure for stable and reliable installation
- Industry Grade Suitable for robotics and AGV applications with CAN interface
- 60V Compatible Can be connected directly to battery power system
Product | Hexfellow Y200 IMU |
Voltage | 12 - 60V |
Operating Temperature | -20℃~85℃ |
Mechanical Dimension | 60mm x 60mm x 15mm |
Communication Interface | CAN |
Max Output Frequency | 200 Hz |
Hexfellow Y200 IMU | x1 |

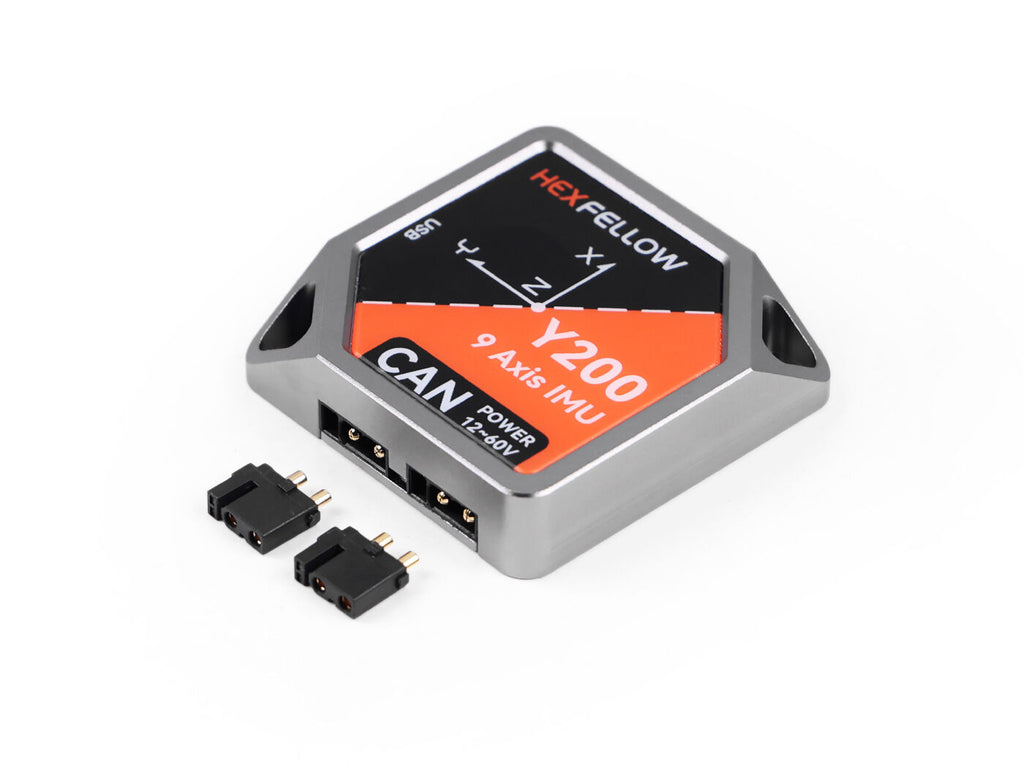

XT30 Connector | x2 |
USB Type-C to Type-A Cable | x1 |
| HSCODE | 9031809090 |
| USHSCODE | 9031808085 |
| UPC | |
| EUHSCODE | 9013101000 |
| COO | CHINA |
