Description

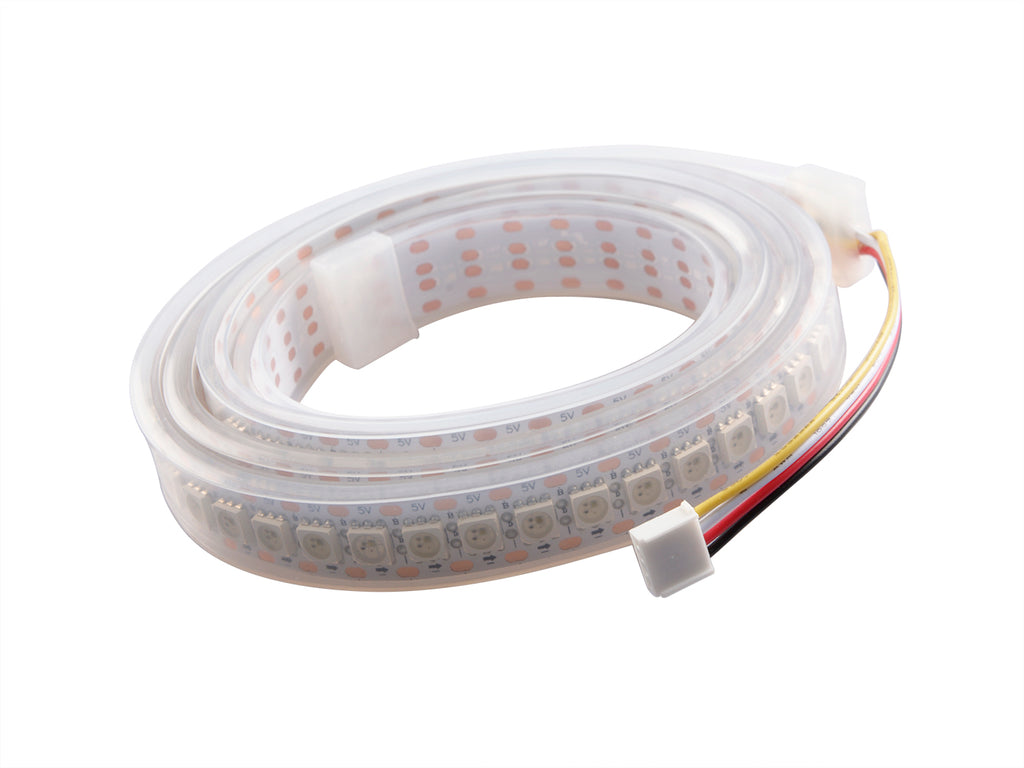

Several kinds of LED Strips have already been available in our bazaar for a long time, however, there were no Grove compatible LED strips. Now, we recommend the Grove - WS2813 RGB LED Strip Waterproof series for you.
This series products are awesome, and have three significant advantages over other products：
Grove Compatible - you can just plug your LED Strip to Seeedunio or Arduino+BaseShild via Grove Cable, no soldering, no complicated wiring.
WS2813 - WS2813 is an upgraded version of WS2812, which is much more stable and stronger than WS2812:
1- support Resume from broken point;
2- all electronic components are integrated into the lamp beads
Waterproof - we add a transparent waterproof slot for those LED Strips
According to the number of LEDs per meter, we have three models in this series. We have three models for this series of products:
Grove - WS2813 RGB LED Strip Waterproof - 30 LED/m - 1m
Grove - WS2813 RGB LED Strip Waterproof - 60 LED/m - 1m
Grove - WS2813 RGB LED Strip Waterproof - 144 LED/m - 1m
We hope you enjoy it, just use those LED Strips to decorate your house, color your devices, and light up your way in darkness.
Features
Grove Compatible
Resume from broken point, even if there were broken LEDs, the rest LEDs can work well.
WS2813B IC, 5050 LED
Waterproof, IP65
Full color RGB, 16777216 colors, 256 levels of brightness
Typical Applications
LED billboard
Holiday decorations
Stage decoration
The Resume from broken point Functions
As long as not two or more adjacent LEDs are broken, the remaining LEDs will be able to work normally.
Attention
The max. power of this LED strip is 43.2W, the max. current is 8.64A(All the led turn to white, level 255). We recommend that you use an extra power supply to power this LED strip. For example the max. current supplied by Arduino UNO vcc is 200mA which is not enough.
Technical Details
| Dimensions | 1000mm x 12mm x 0mm |
| Weight | G.W 83g |
| Battery | Exclude |
| Operating Voltage | DC 5V |
| Operating Temperature | -40℃ ~ 70℃ |
| Storage Temperature | -50℃ ~ 80℃ |
| Max. Power | 43.2W per meter / 0.3W per LED |
| Scanning Frequency | 2KHz/s |
| Max. Data Transfer Rate | 800Kbps/s |
| Reset Time | >280 us (typical = 300us) |
| LED Working Life-Span | 50000 Hours |
Part List
| Grove - WS2813 RGB LED Strip Waterproof - 144 LED/m - 1m | 1 |
ECCN/HTS
| ECCN | EAR99 |
| HSCODE | 9405409000 |
