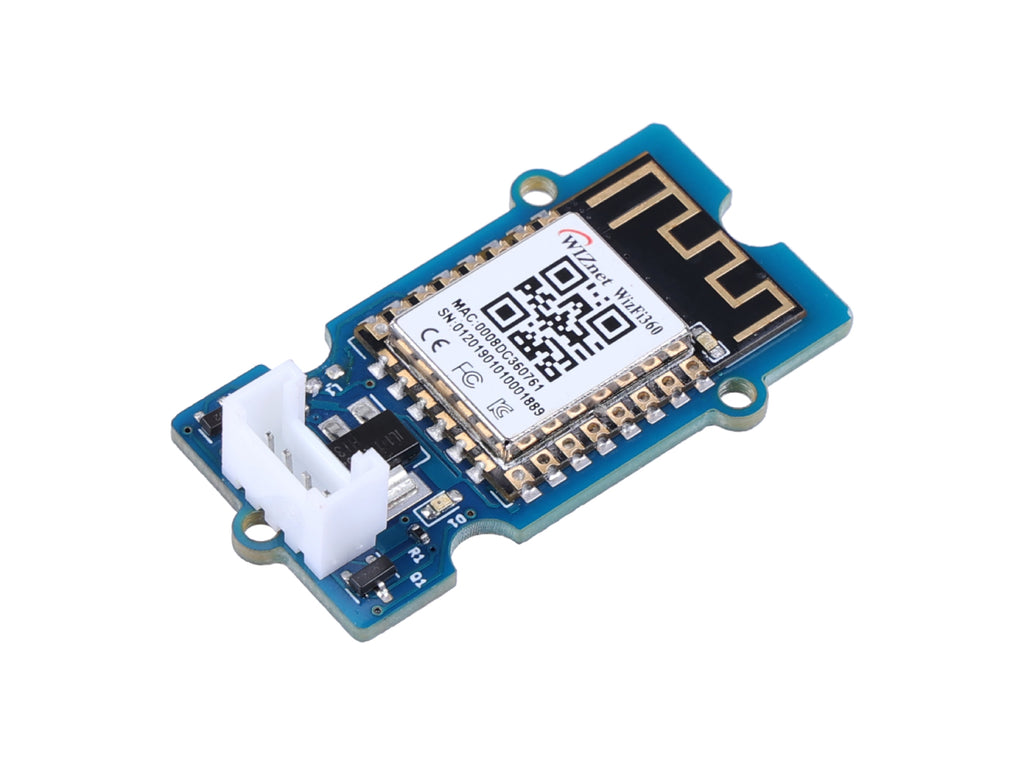

Grove UART WizFi360 is based on Wiznet's wizfi360 Wi-Fi module, which is a cost-effective WiFi module that supports both TCP/IP and microcontroller and multiple modes
Features
- Compatible with multiple modes: Support SoftAP/Station/SoftAP+Station mode
- High compatible baud rate: Serial port baud rate up from 600bps to 2Mbps with 16 common values
- Fast WiFi speed: Frequency range WiFi 2.4G, 802.11 b/g/n
- Easy to use: Just a fast & simple plug-and-play device that allows you to easily add wireless capabilities.
The story about Grove UART WizFi360, Grove - UART - WizFi360 is designed by Amal Mathew, he is a firmware engineer by profession and an electronics hobbyist by passion. Amal Mathew designed this Grove because by chance he got an opportunity to work with Wiznet's wizfi360 Wi-Fi module and see that Seeed is co-investing in Grove design activities on LinkedIn.
Description
Grove UART WizFi360 is based on Wiznet's wizfi360 Wi-Fi module. It is a microcontroller that supports both TCP/IP and microcontrollers. It takes only a few lines of code to allow your microcontroller to interact with WiFi networks. Each WizFi360 module is pre-installed AT command set firmware, which means you can send simple text commands to control the device. And with connectivity provided through a 2.4GHz wireless connection, as well as WizFi360's compatibility with IEEE802.11 b/g/n standards and support for SoftAP, StaTIon, and SoftAP+StaTIon modes. Grove UART WizFi360 saves a lot of time by being a standalone Internet support solution.
We have developed more than 400 Grove modules, covering a wide range of applications that can fulfill various needs. Click to explore the Grove Sensor family and get started to Grove your Idea. For all Grove users (especially beginners), we provide you with guidance PDF documents. Please download and read through Preface - Getting Started and Introduction to Grove before your use of the product.
Applications
- Home automation
- Sensor networks
- Mesh networking
- Wearable electronics
- Baby monitor
- Network Camera
- Industrial wireless control
- WiFi beacons
- Smart power plug
- Location-aware applications
Specifications
supporting agreement: | 802.11 b/g/n |
frequency: | 2.4 GHz to 2.5 GHz |
Data rate: | 11 Mb/s, 54 Mb/s |
Interface Type: | Serial |
Output: | 19 dBm |
Supply voltage - min: | 3 V |
Supply voltage - max: | 3.6 V |
Transmit Supply Current: | 210 mA, 230 mA |
Receive supply current: | 110 mA |
Lowest operating temperature: | - 40 C |
Highest operating temperature: | + 85 C |
Antenna Connector Type: | PCB |
Working power supply voltage: | 3 V to 3.6 V |
product type: | WiFi Modules |
Protocol - WiFi - 802.11: | WiFi |
Part List
Grove UART WizFi360 | x1 |
ECCN/HTS
| HSCODE | 8517709000 |
| USHSCODE | 8517180050 |
| UPC | |
| EUHSCODE | 8517180000 |
| COO | CHINA |
