Use voice to interact with things around you can always be one of the most interesting things of IoT application, we want to make something more different and cooler. Recently we just launched the voice control solution “Respeaker” on Kickstarter and it becomes the blockbuster. However not everybody needs a Respeaker to build voice control project, sometimes people only need a simple solution, here we would like to introduce the first generation of grove speech recognizer to realize your dream of smart home easily and fast.

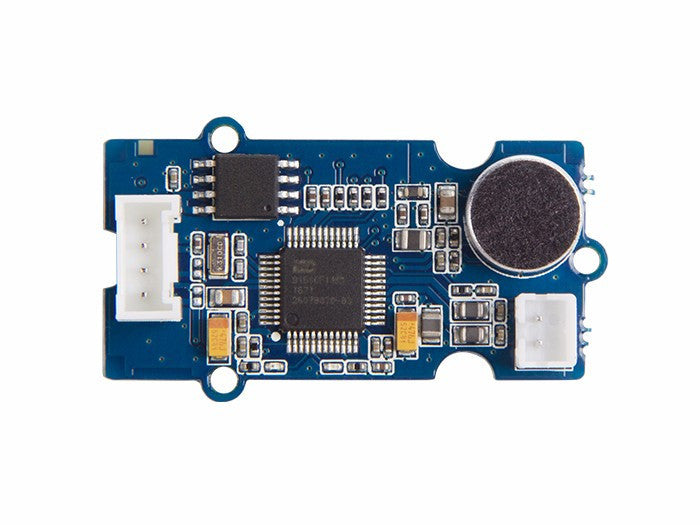

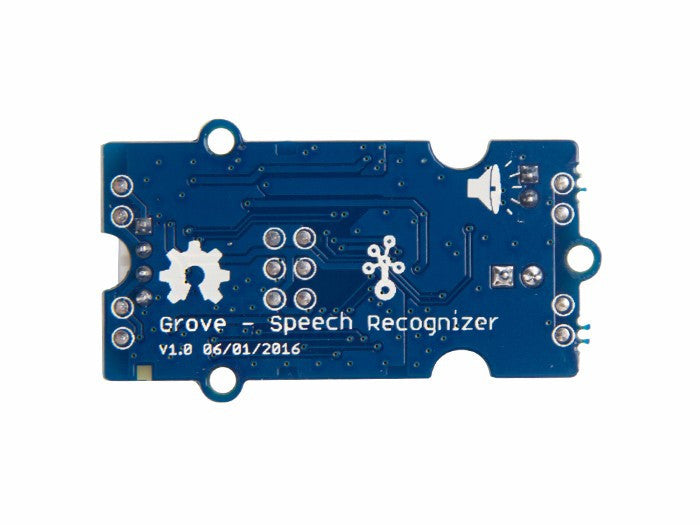

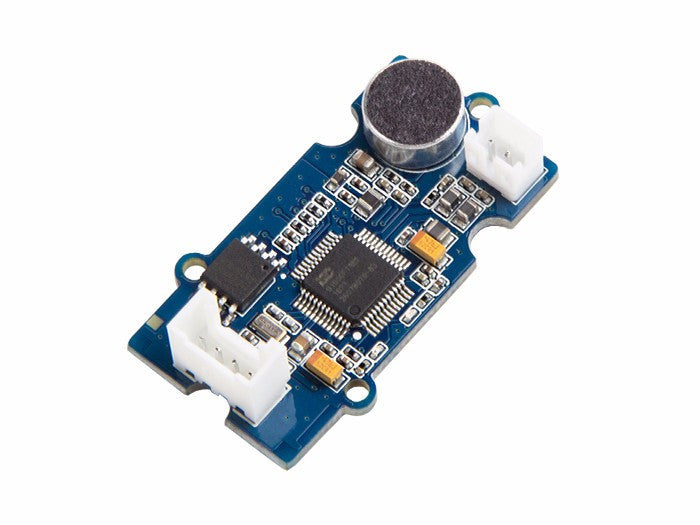

Grove speech recognizer is a designed for voice control application such as smart home, smart toy, voice control robot, anything you would like to control through voice, it worth a try. The board includes a Nuvoton ISD9160, a microphone, 1 SPI flash, 1 grove connector,1 speaker connector and 1 led to reflect to your voice.
Nuvoton ISD9160 is (SoC) Chipcorder that based on Cortex™-M0, it provides strong and economic solution for voice control applications. ISD9160 is not the only amazing thing in this grove. Let’s look at the microphone. Remember the uncomfortable moment when you have to speak directly and closely to the voice recognizer device to make sure it can hear you? It won’t happen this time! The microphone on grove-speech recognizer is Omni-directional, which means that whether a user speaks into the microphone from the front, back, left or right side, the microphone will record the signals all with equal gain.
This speech recognizer can recognize 22 pieces of commands including 'start', 'stop', 'Play music' and so on. Every time it recognizes a command, it will return a value and then the loudspeaker that connected to it will repeat the command. This value can be used to control other devices like motor, music player. We have tested it for hours to make sure it possesses a high recognition rate and a very low false trigger.
How to use it
Awaken Word: Hicell (Please pronounce it as one word)
When it recognizes the awaken word, LED turn red, then you can say the command word, if it recognize the command word, LED will turn blue.
Notes
The package does not include speaker.
The power of speaker should be lower than 1w to avoid any damage to the chip.
Features
Local Voice Recognition
Very low rate of false triggering
Speaker connector(JST2.0, speaker is not include)
Built-in microphone
3.3/5V working voltage
22 recognition entry
Default Baudrate: 9600
Documents
For libraries and documents, please visit our WiKi page.
For technical discussion, please come to our Forum.
For projects that you would like to share with the community, please visit Recipe.
