The Grove Smart IR Gesture Sensor is a state-of-the-art module that combines an infrared camera sensor with advanced AI algorithms. With the ability to detect more than 15 different gestures, it offers wide-ranging gesture recognition capabilities. The sensor supports both IIC and SPI communication protocols, ensuring seamless integration with various devices. Moreover, it provides convenient direct connectivity options for Grove, Type-C, and Seeed Studio XIAO. Experience precise and intuitive gesture control for your projects with the Grove Smart IR Gesture Sensor, empowering you to unlock new possibilities in interactive applications.
Feature
- Compact AI gesture sensor: Equip with an infrared camera sensor and apply AI algorithm to achieve gesture detection, in a compact size board of 4.3cm x 2.1cm
- Over 15 gestures with wide detection: Support various gestures such as N-finger push, pinch, tap, grab, rotation, thumb up/down, static, etc, with a detection range of 5-40cm
- High compatibility: Compatible with the XIAO series interface and the Grove connector through I2C communication while supporting images displayed on PC through SPI communication
- Flexible Voltage Selection: Grove Interface Compatible with 3.3V and 5V Systems
Description
Grove Smart IR Gesture Sensor is an intelligent gesture recognition module equipped with a PAG7646J1 infrared camera module, a PAG7661QN (ISP), and an LED fill light. It recognizes and interprets hand gestures through image recognition of the picture taken by the infrared camera, enabling clear gesture recognition even in dark environments.
The sensor supports various multi-finger gestures such as N-finger push, pinch, tap, grab, rotation, thumb up, thumb down, static gesture (1 to 5 fingers), and swipe. It can detect over 15 different types of hand gestures, making it suitable for a wide range of applications. With a detection range of 5-40cm, it provides accurate and reliable gesture recognition.

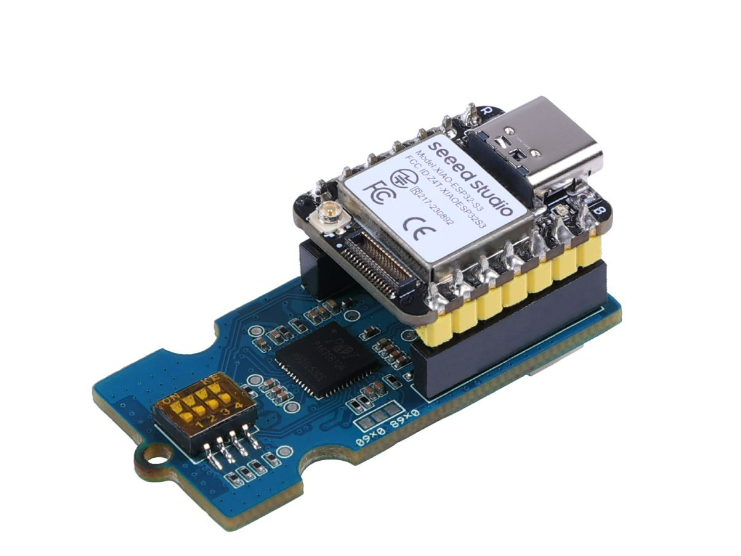

The High Compatibility of the sensor makes it easy to integrate into your projects. It is compatible with the XIAO series interface and supports the Arduino ecosystem by the Grove connector through the I2C connector. Gesture result data can be obtained by connecting to an MCU via the SPI pinhole, or Images can be displayed on a PC host through the Type-C interface. This flexibility makes it easy to use with a variety of systems and platforms.
Application
- Wireless Gesture Interaction
- Light Switch
- Function Panel Switch
- PPT interaction
- Robot Control
- Music Player Control
Specification
Parameter | Details |

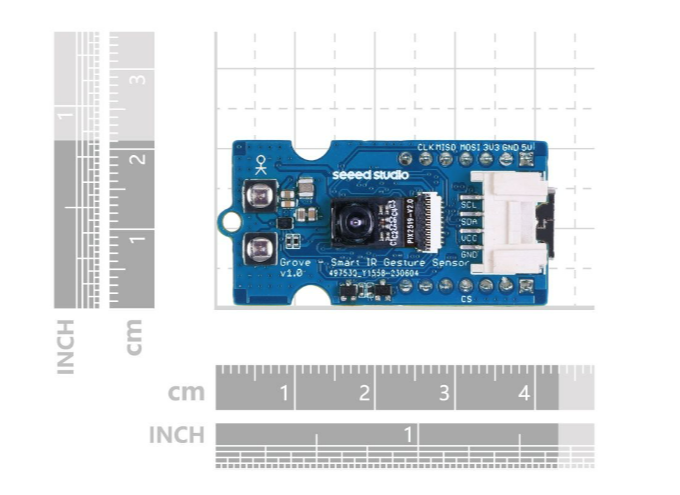

Size | 4.3cm x 2.1cm |
Connector* | IIC: Grove connector IIC: Seeed Studio XIAO Pins |
SPI: Type-C connector | |
Infrared camera sensor | PAG7646J1 |
Onboard LED fill light | AU3838A-ZRR-1000mA |
AI-based chip | PAG7661QN |
Power supply | 3.3v/5v |
Detection range | 5-40cm |
Gesture | N-finger push, pinch, tap, grab, rotation, thumb up, thumb down, static gesture (1 to 5 fingers), swipe |
Note

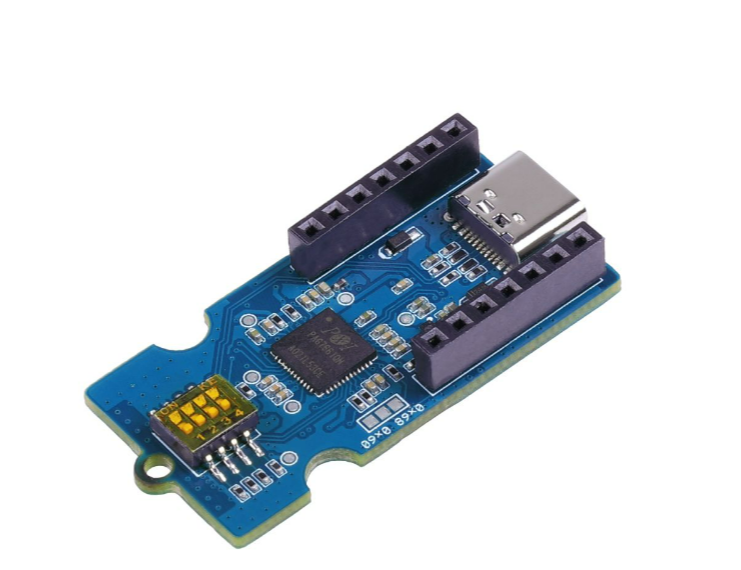

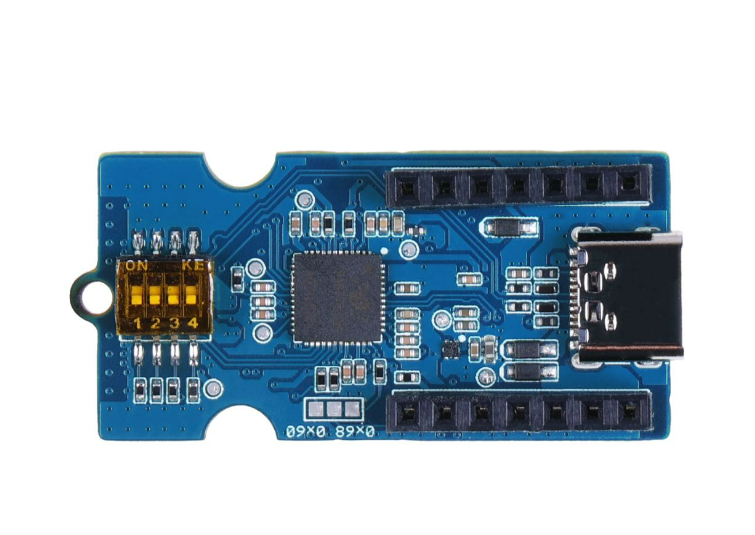

On the back left side is an SPI/IIC switch used by the user to toggle between SPI and IIC usage.

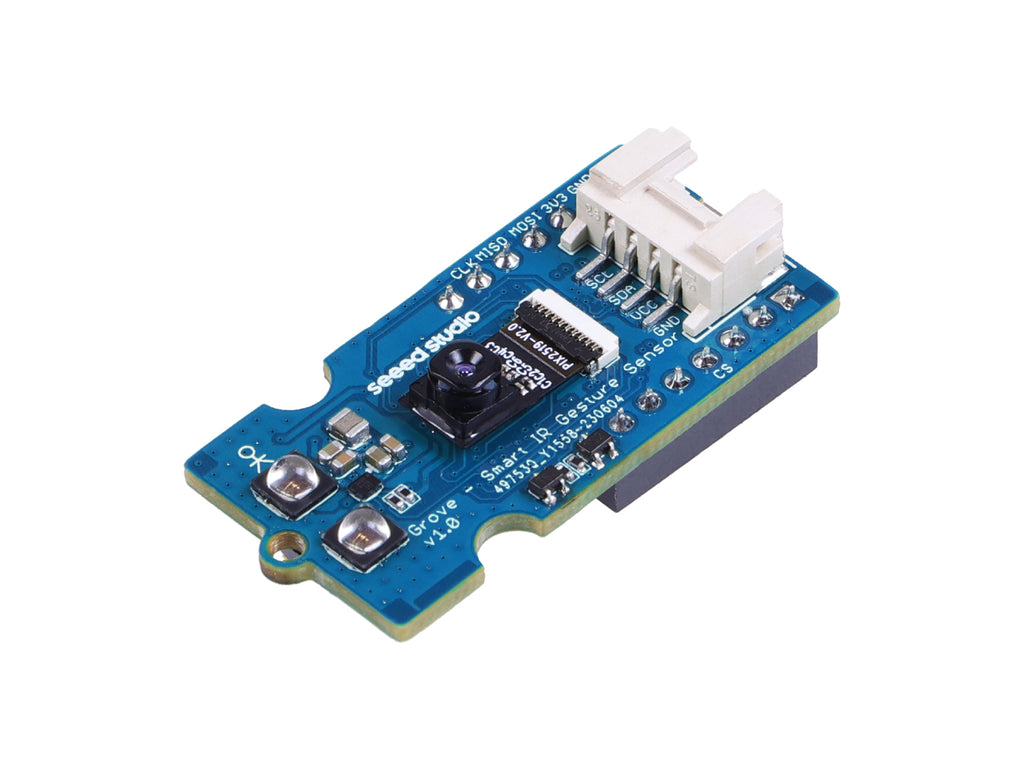

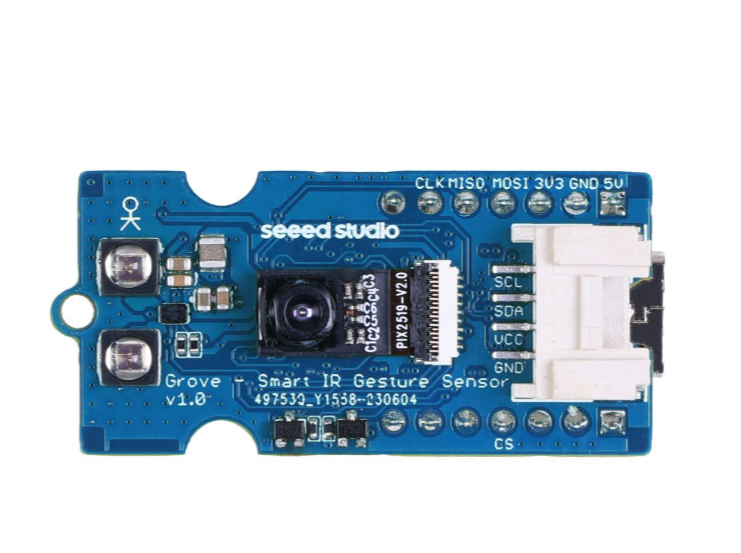

Hardware Overview
