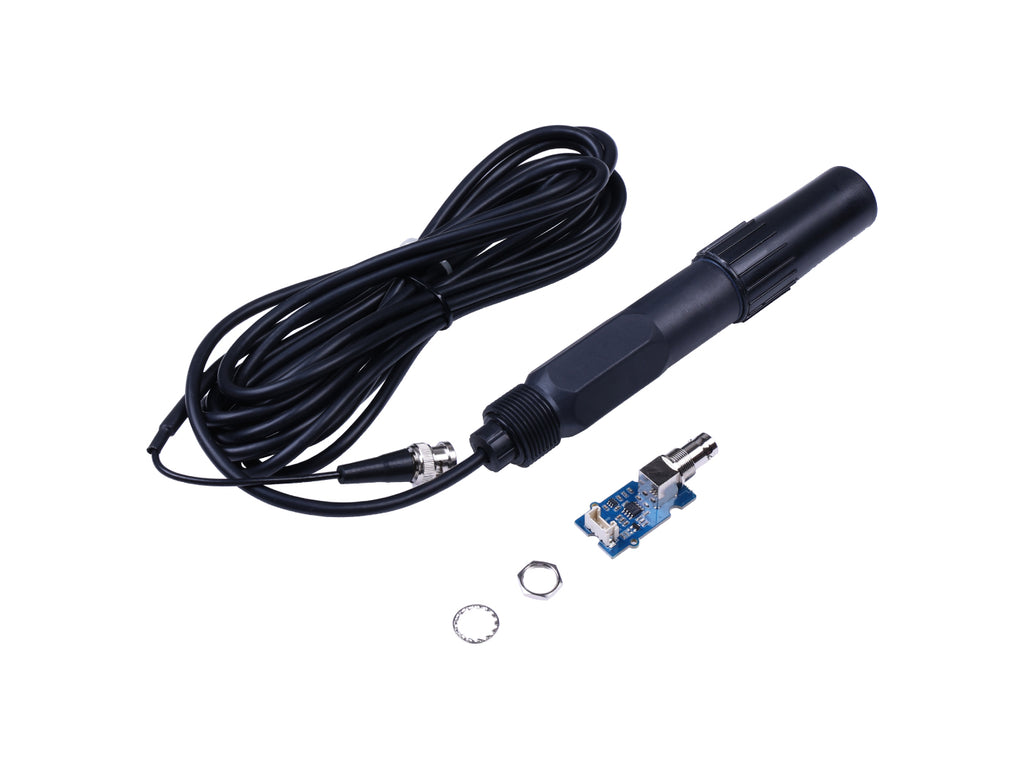

Grove - ORP Sensor Kit (HR-O) is a Grove sensor that measures the ORP value, detecting quality of the liquid. It works with a 5-meter IP68 ORP probe, offering a -2000mV to 2000mV sensing range, operating under 0-80℃, supporting Arduino programming. The sensor is environmentally friendly and RoHS certificated.
Feature
- Grove ORP Sensor Upgrade: Assemble 5-meters IP68 ORP probe, offering -2000 mV to 2000 mV sensing range, operating under 0-80℃, member of simple-to-use Grove ecosystem
- Enhanced Measurement Performance: Maintain ±15mV sensing accuracy at 0-60°C
- Working Voltage: Support both 3.3V and 5V working conditions
- Exchangeable Sensor Nodes: Support BNC-linker sensor probes
- RoHS Certification: Environmentally friendly, assured detection
Description
Grove - ORP Sensor Kit (HR-O) aims to measure the cleanliness of the water and its ability to break down contaminants. It works with a 5 meters IP68 ORP probe, offering a -2000mV to 2000mV sensing range, operating under 0-80℃ which is a member of the simple-to-use Grove ecosystem and supports Arduino programming. The sensor is environmentally friendly and RoHS certificated.
An ORP Sensor measures the activity of oxidizers and reducers in an aqueous solution, it measures the ability of a lake or river to cleanse itself or break down waste products. Different oxidation-reduction processes and conditions have different ORP values(mV), with aerobic conditions having higher ORP values and anaerobic conditions having lower ORP values. In common conditions like spas, it is widely acknowledged that the safe values are between 650 mV and 750 mV.
For more anaerobic and aerobic environments detection, you will find this sensor amazed that it offers an even wider range measurement and the value of which is from -2000 mV to +2000 mV. It also provides ±15mV sensing accuracy when it operates at 0-60°C.
With such performance, its assembly, operation, and value-read are pretty simple. Being a member of the Grove ecosystem and supported by Arduino, you can easily connect it to any Arduino-support board with a Grove cable and simply read the output ORP value.
Note
If you find white solid granular crystals around the probe shroud after receiving the product, this is normal and please do not worry. It is caused by temperature change, environmental change or redox during the process of delivery. However, it will not affect the nature of the internal potassium chloride solution and the normal operation of the sensor.
If you find it, please use a wet paper towel to gently wipe off the crystals on it, please do not let it near your children to avoid accidental ingestion.
Application
- Monitor and control oxidation-reduction reactions
- Disinfected water detection
- Health-friendly water detection
- Determine the types of microbial
- Dectct anaerobic microbial activity
- Wastewater treatment
- Aquaculture
- Industrial sewage discharge monitoring
Specification
Parameters |
Details |
Range measurement |
-2000mV to +2000mV |
Resolution ratio |
1 mV |
Accuracy |
±15mV |
Aero potential point(pH) |
7.00±0.30 |
Slope factor |
>96% |
Work voltage |
3.3V/5V |
Work temperature |
0-80℃ |
Reference system | |
Liquid junction boundary |
Polyvinyl tetrachloride |
Material of the housing |
PPS |
Membrane resistance |
<500 MQ |
Wire length |
5 meters |
Method of installation |
Drop |
Level of protection |
Ip68 |
Electrical connection |
BNC |
Part List
Driver board |
x1 |
ORP Sensor Probe |
x1 |
Grove cable |
x1 |
ECCN/HTS
| HSCODE | 9026809000 |
| USHSCODE | 9026104000 |
| UPC | |
| EUHSCODE | 9013101000 |
| COO | CHINA |
