Grove - OLED Display 0.96''

$24.71 AUD Inc. GST


SKU SS104030008
Ships in 24 hours 6 units
Ships in 3 to 10 days 260 units

increment
decrement
decrement increment

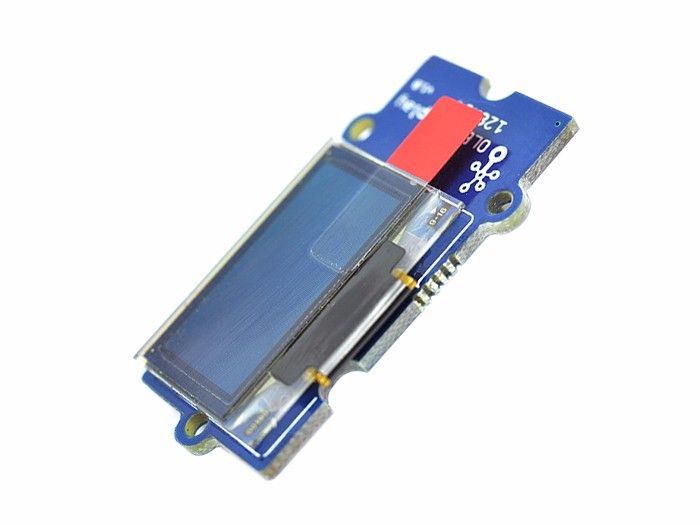

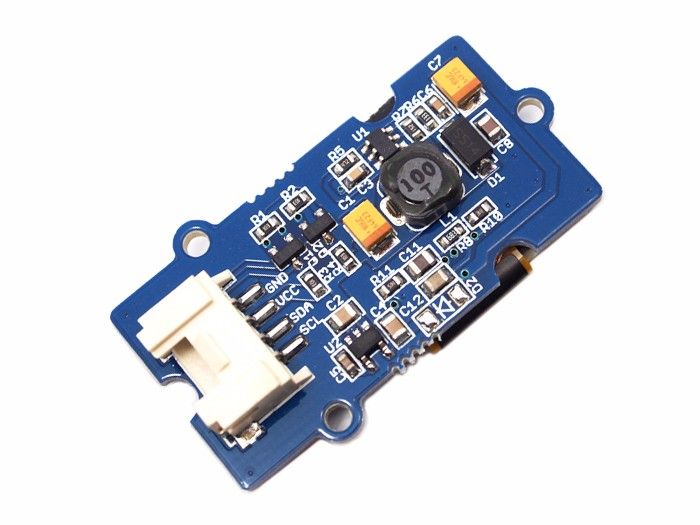

Grove - OLED 0.96'' is a 16 color grayscale 96×96 dot matrix OLED display module with Grove compatible 4pin I2C interface.Grove - OLED 0.96" is constructed with 96 x 96 dot matrix OLED module ([ LY120])and SSD1327 driver IC. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim / thin outline, wide viewing angle, wide temperature range, and low power consumption.
Features
  • Dot Matrix: 96 x 96 Pixels.
  • Color: Grayscale Display (16 Gray shades).
  • Supports both Normal and Inverse Color Display.
  • Supports Continuous Horizontal Scrolling.
  • Grove compatible 4pin I2C connector.
  • Works with both 5V and 3.3V logic MCUs.
  • Interface: I2C.
  • Wide range of operating temperature: -40°C ~ 7°C.
Application Ideas
  • Graphic display adapter for Seeeduino and Arduino using Grove stem board .
  • Display adapter for any 5V or 3.3V MCU which supports I²C interface.
  • Can be used with mbed microcontroller.
For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface - Getting Started and Introduction to Grove before your using of the product.
Documents

Please visit  wiki page for more info about this product.
