Features
- FFT Accelerator: Supports up to 1024 points of complex FFT/IFFT operations or 2048 points of real FFT/IFFI;
- Rich Peripherals: Support 1 analog Mic input and 4 digital Mic inputs and dual-channel DAC outputs;
- Built-in voltage conversion：Supports 3.6V to 5V range power inputs and built-in 5V to 3.3V and 3.3V to 1.2V LDOs to power the chip;
- Smart Detection: Built-in POR (Power on Reset), Low Voltage Detection and Watchdog;
- Rich Interface: 1 full-duplex UART up to 3Mbps and supports SPI, I2C, ADC, and PWM interfaces.
Description
Online Voice recognition modules require a reliable internet connection to generate responses and are not independent of the Microcontroller/Processor controlling them. While one can create an offline voice recognition module using a compatible processor like RaspberryPi, and train a custom neural network to do this, it is not feasible for battery-operated edge devices

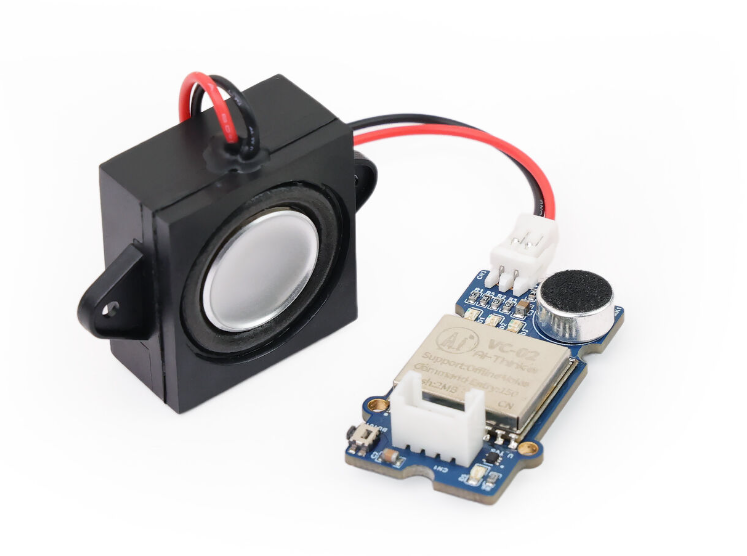

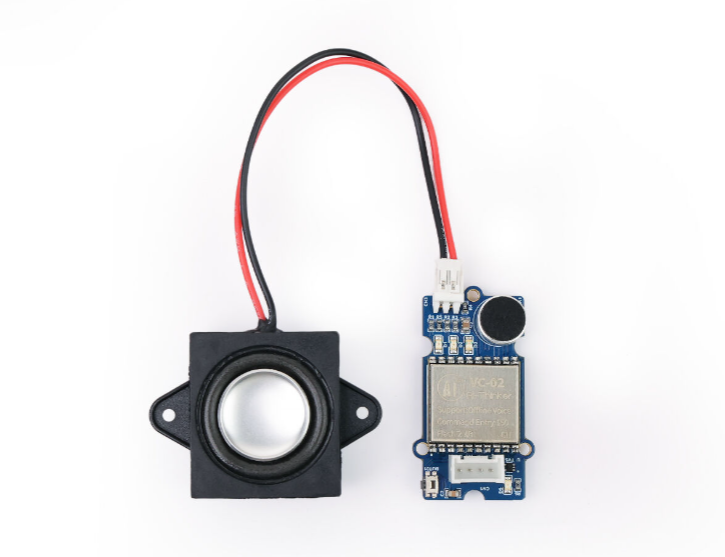

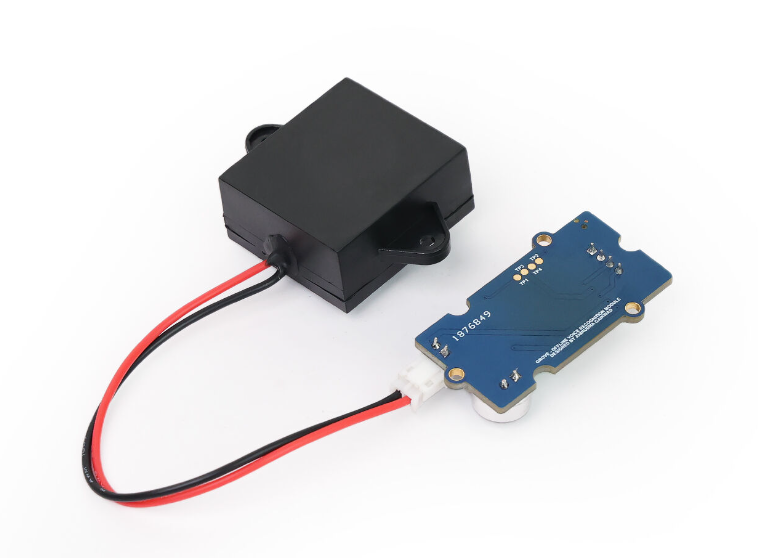

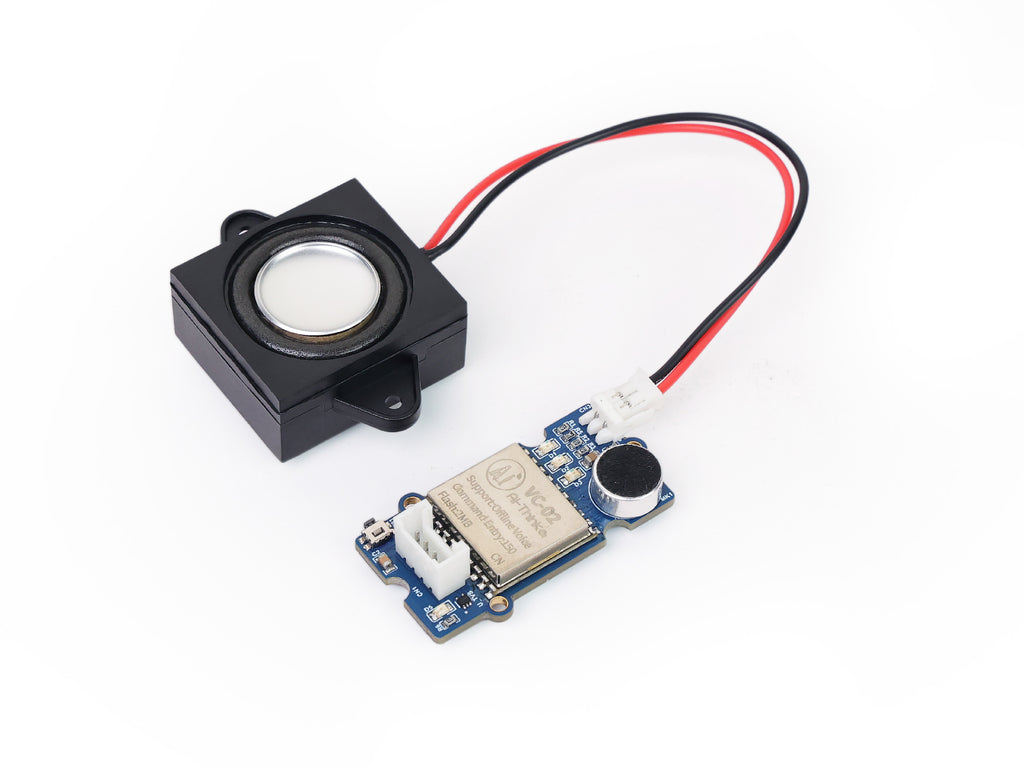

This Grove-Offline Voice Recognition Module is a truly offline voice recognition module with 150 pre-programmed voice commands, which can be communicated through UART. It features connections for the speaker and microphone, along with indicator LEDs. The power supply to the module is ESD-protected, adding more safety to the module. It is a perfect low-cost solution for adding voice control to your IoT projects!
We have developed more than 400 Grove modules, covering a wide range of applications that can fulfill various needs. Click to explore the Grove Ecosystem Introduction | Seeed Studio Wiki and get started to Grove your Idea. For all Grove users (especially beginners), we provide you with guidance PDF documents. Please download and read through Preface - Getting Started and Introduction to Grove before your use of the product.
Application
- Home automation
- In-car systems
- Industrial control, Medical devices
- Consumer electronics
- IoT devices
Specification
Specification | Details |
Size | 18*17*3.2mm |
Operating Temperature | -40°C~85°C |
Storage | -40°C~125°C, <90%RH |
Power supply range | Supply voltage 3.6V-5V, supply current >500mA |
Supported interfaces | UART/I2C/PWM/SPI/GPIO |
Number of available IO ports | 10 |
Serial Rate | Default 115200 bps |
SPI Flash | 2MB (internal) |
Hardware Overview

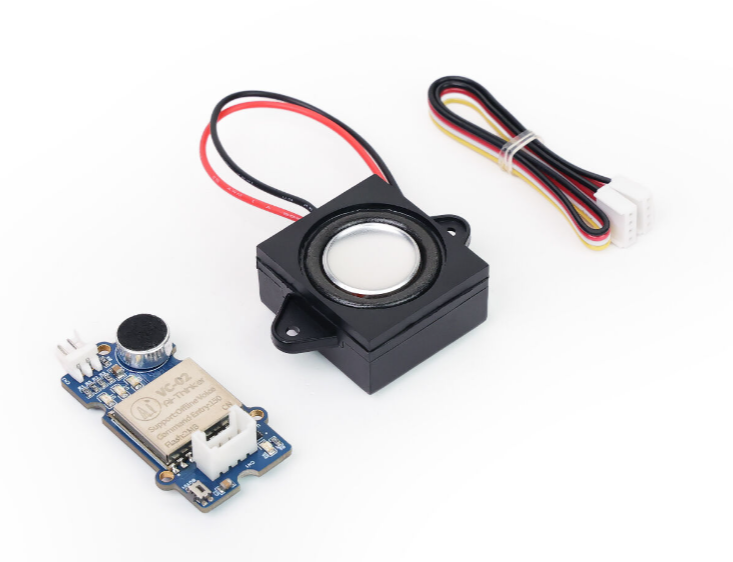

Part List
Offline Voice Recognition Module | x1 |
Speaker | x1 |
Grove Cable | x1 |
ECCN/HTS
| HSCODE | 9031809090 |
| USHSCODE | 9026104000 |
| UPC | |
| EUHSCODE | 9013101000 |
| COO | CHINA |
