Description

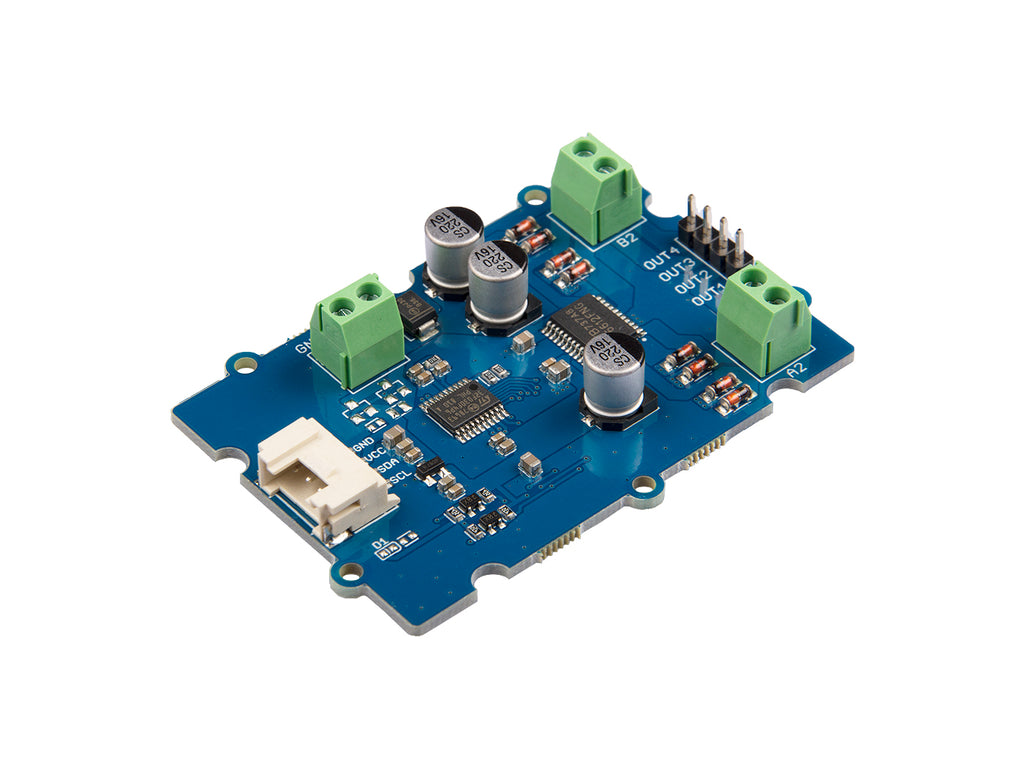

The Grove - I2C Motor Driver (TB6612FNG) can drive two DC motors up to 12V/1.2A or drive one stepper motor up to 12V/1.2A. With the on-board MCU, it can work with Arduino easily via the Grove I2C interface.
This diver board is based on TB6612FNG, which is a driver IC for DC motor and stepper motor with output transistor in LD MOS structure with low ON-resistor. Two input signals, IN1 and IN2, can choose one of four modes such as CW, CCW, short brake, and stop mode.
Features
On board MCU
CW/CCW/short brake/stop function modes
Built-in thermal shutdown circuit and low voltage detecting circuit
Standby (Power save) system
Typical applications
DC motor control
Stepper motor control
Pin Out
Technical Details
Dimensions | 60mm x 40mm x 13mm |
Weight | G.W 19.50g |
Battery | Exclude |
Part List
Grove - I2C Motor Driver (TB6612FNG) | 1 |
Grove Cable | 1 |
ECCN/HTS
ECCN | EAR99 |
HSCODE | 8517 |
