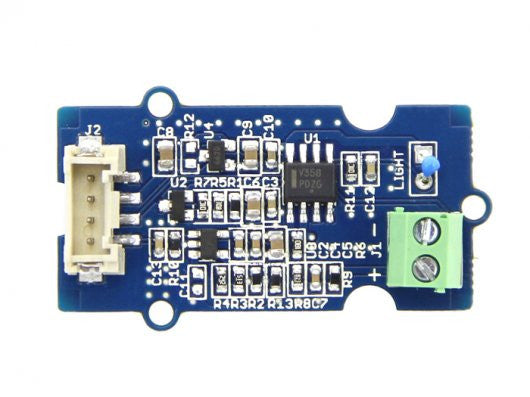

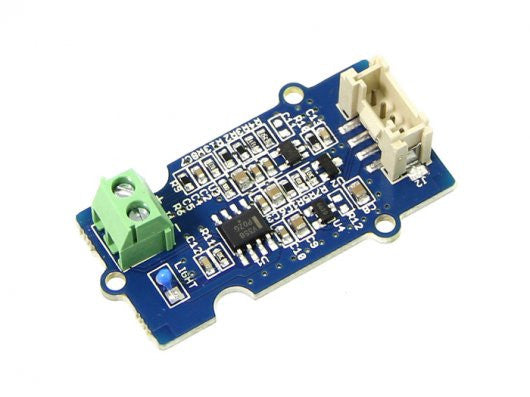

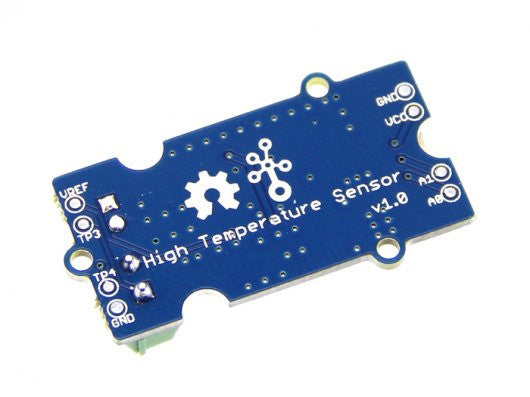

Grove - High Temperature Sensor

$19.49 AUD  Inc. GST

1

SKU SS111020002
Ships in 24 hours 2 units

increment
decrement
decrement increment

Thermocouples are very sensitive, requiring a good amplifier with a cold - compensation reference. The Grove - Temperature Sensor USES a K type thermocouple Temperature detection, with a Thermistor to detect The ambient Temperature as Temperature compensation. The detectable range of this Sensor is -50-600℃ , and The accuracy is ±(2.0% + 2℃)
Specifications
  • Voltage:3.3 ~ 5V
  • Max power rating at 25℃ :300mW
  • Operating temperature range:-40 ~ +125 ℃
  • The temperature measurement range is (-50 ~ +600℃)
  • Amplifier output voltage range (0 ~ 3.3 V) mv
  • Cold junction compensation (environment temperature measurement)
  • Thermocouple temperature measurement accuracy of + / - 2.0% (+ 2 ℃)
Package Include:

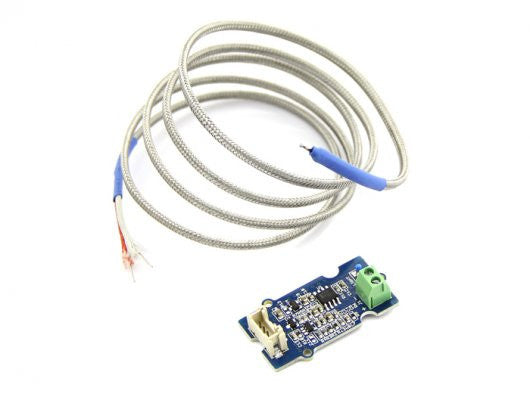

  • Grove - High Temperature Sensor x1

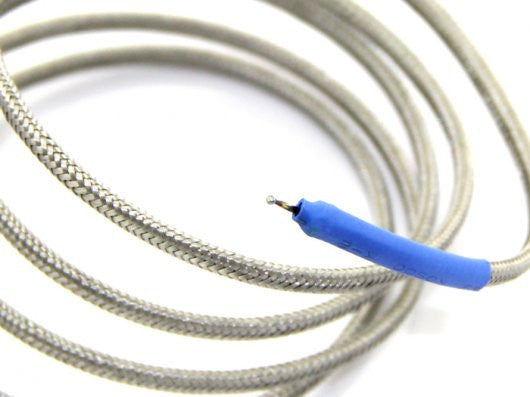

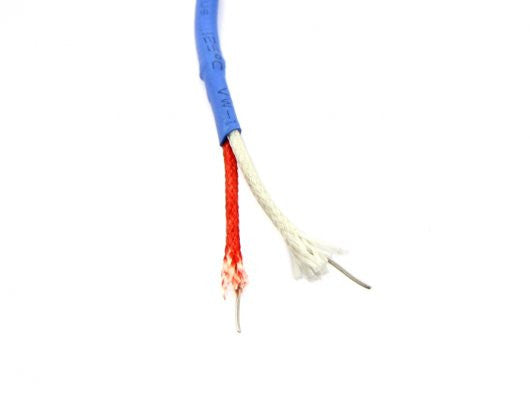

  • Thermocouple Temperature Sensor x1
  • 24AWG Grove Cable  - 4P-4P-2.0-200mm x1
 Documents
