Description

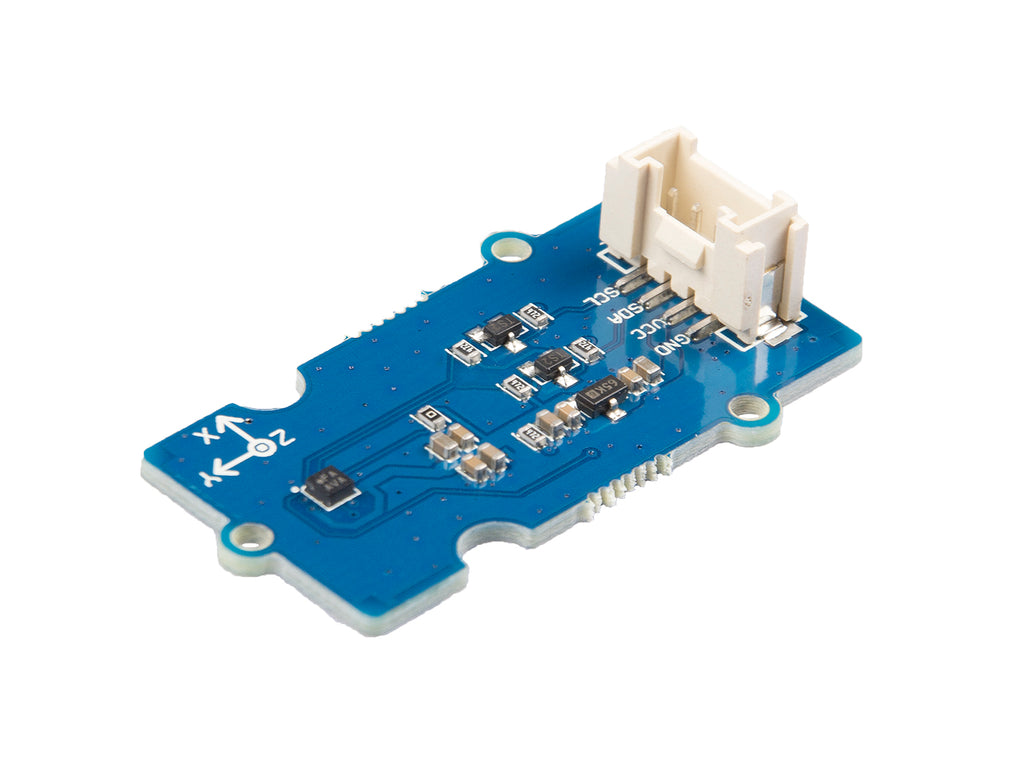

The Grove - 3-Axis Digital Accelerometer ±16g Ultra-low Power (BMA400) sensor is a 12 bit, digital, triaxial acceleration sensor with smart on-chip motion and position-triggered interrupt features. It can detect your movement posture, such as Walking, Running, Standing still.
Features
Ultra-low power
Programmable functionality
On-chip FIFO
On-chip interrupt features
Auto-low power/Auto wakeup
Activity/In-activity
Step counter
Activity Recognition(Walking,Running,Standing still)
Orientation detection
Tap/Double tap
Typical applications
Step Counting with ultra-low current consumption for extensive battery lifetime
Fitness applications / Activity Tracking
Tap / double tap sensing
Drop detection for warranty logging
Window/door measurements for climate control and alarm systems
Pin Out
Technical Details
| Dimensions | 40mm x 20mm x 7mm |
| Weight | G.W 9.20g |
| Battery | Exclude |
| Operating Voltage | 3.3V / 5V |
| Power consumption | 18uA @5V / 14uA @3.3V |
| Acceleration Range | ±2g, ±4g, ±8g, ±16g |
| Sensitivity | 1024LSB/g @±2g / 512LSB/g @±4g / 256LSB/g @±8g / 128LSB/g @±16g |
Part List
| Grove - 3-Axis Digital Accelerometer ±16g Ultra-low Power (BMA400) | 1 |
| Grove Cable | 1 |
ECCN/HTS
| ECCN | 7A994 |
| HSCODE | 9031900090 |
