Description

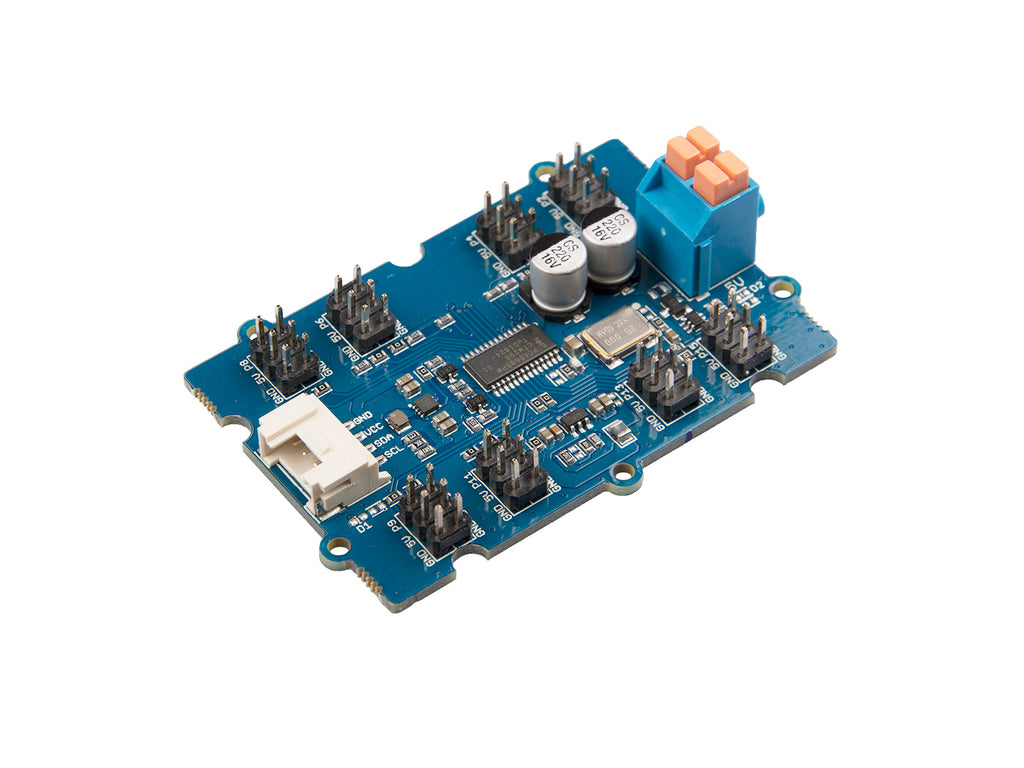

The Grove - 16-Channel PWM Driver is based on NXP PCA9685, which is a 16-Channel, 12 bit I2C PWM driver. This board can drive up to 16 servos with the external power supply. You can control this board with Arduino easily via the I2C Grove interface. In addition, you can use this board as a LED controller.
Feature
1 MHz Fast-mode Plus compatible I2C-bus
6 hardware address pins allow 62 PCA9685 devices to be connected to the same I2C-bus
Low standby current
Noise filter on SDA/SCL inputs
Typical applications
Servos driver
RGB or RGBA LED driver
Pin Out
Technical Details
| Dimensions | 60mm x 40mm x 20mm |
| Weight | G.W 20.40g |
| Battery | Exclude |
Part List
| Grove - 16-Channel PWM Driver (PCA9685) | 1 |
| Grove Cable | 1 |
ECCN/HTS
| ECCN | EAR99 |
| HSCODE | 8517 |
