Gravity: LED Button x 5 Pack
Gravity: LED Button x 5 Pack

Gravity: LED Button x 5 Pack

Price:
A$40.24   Inc. GST
SKU:
DF-DFR0785
1 unit Ships in 24 hours
112 units Ships in 7 to 10 days

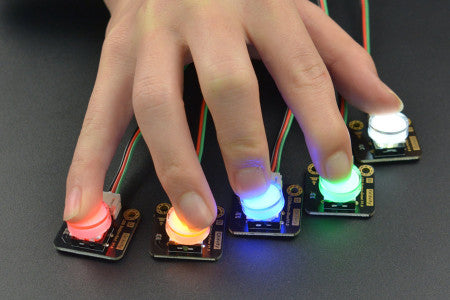

This is a simple LED-illuminated switch button. It’s just like a common switch button but lights up different colors(red/yellow/green/blue/white) when pressed down, which gives us visual feedback. These little buttons can be used with controllers like micro:bit, Arduino, etc., to realize various fun interactive projects.

Gravity: LED Button Kit

This is a digital button switch with an LED light display.



Experimental Cases

Supports programming platforms like MakeCode, Mind+ and Arduino IDE.

Gravity: LED Button Kit

1.Mind+ Program Example

Gravity: LED Button Kit


Program Effect

Gravity: LED Button Kit

Mind+ official download - Mind+ graphical programming software (mindplus.cc)For more fun, welcome to the Mind+ special column.


2.MakeCode Program Example

Gravity: LED Button Kit


Program Effect

Gravity: LED Button Kit


3.Arduino Program Example

Gravity: LED Button Kit


Program Effect

Gravity: LED Button Kit

Features:

  • 1. 5 lighting colors of red, green, white, yellow, and blue are optional.

    • Gravity: LED Button Kit

    There are 5 available colors to choose from: red, green, white, yellow, and blue

  • 2.Convenient and easy-to-use Gravity interface.

    • Gravity: LED Button Kit

    Gravity interface, convenient and easy to use

  • 3.Large button for easy control.

    • Gravity: LED Button Kit

  • 4.Various types of stickers are provided.

    • Gravity: LED Button Kit

    Gravity: LED Button Kit

    Applications:

  • Backlight keyboard
  • Music player panel
  • Recording control panel

    • Specification:

  • Working Voltage: +3.3-5V (3.3V is recommended)
  • Output: Digital signal
  • Interface: PH2.0-3P
  • Size: 27×26.5mm
  • LED Light Color: red, yellow, green, blue, white

    • Note: When pressed down, the module outputs High, and the LED lights up. When released, the module outputs Low and the LED turns off.

    Documents:

  • Product wiki

    • Product Includes:

  • Gravity: Digital Button Switch with LED x5 (red/ yellow / green/ blue/ white)
  • Digital Sensor Connector  x5
  • Sticker x2
