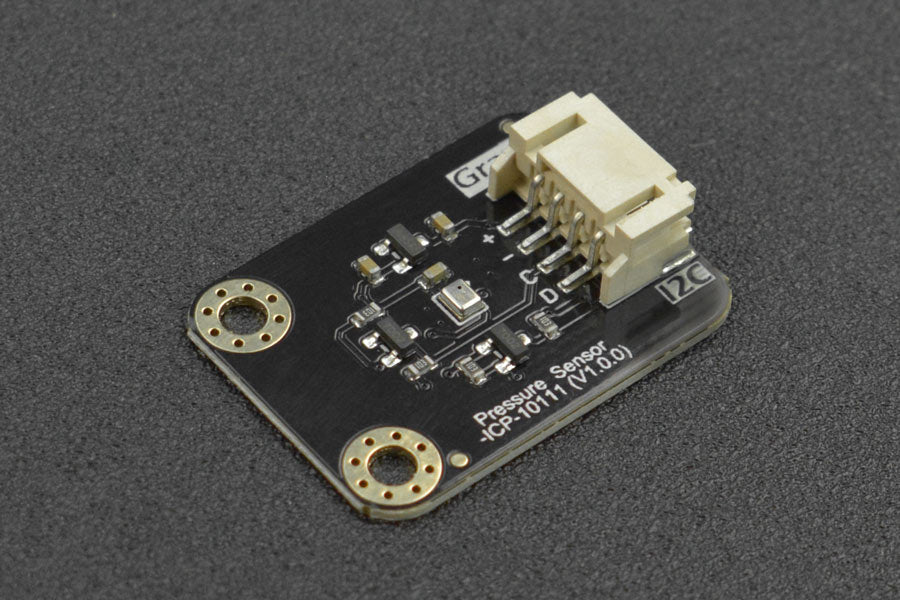

Gravity: ICP-10111 Pressure Sensor

Sale price A$19.18   Inc. GST
257 units Ships in 7 to 10 days

This barometric pressure temperature sensor is equipped with TDK's newly-launched ICP-10111 barometric pressure sensor, which is based on MEMS capacitor technology to achieve ultra-low power consumption, industry-leading relative accuracy, and temperature offset coefficient.

The Gravity: ICP-10111 barometric pressure temperature sensor can measure the pressure difference with an accuracy of ±1Pa, an accuracy enabling altitude measurement differentials as small as 8.5 cm, less than the height of a single stair step.

The pressure noise can be as low as 0.4Pa, and the read data will be more stable. There is a built-in temperature sensor for air pressure compensation. The ICP-10111 offers a temperature coefficient offset of ±0.5 Pa/°C, more stable for long-term use. The combination of high accuracy, low power, and temperature stability in a small footprint enables higher performance barometric pressure sensing for sports activity identification, mobile indoor/outdoor navigation, and altitude-hold in drones.

Gravity: ICP-10111 Pressure Sensor

Board Overview

Gravity: ICP-10111 Pressure Sensor

Connection Diagram


  • Relative accuracy ±1Pa, as small as 8.5cm height measurement difference
  • ±0.5Pa/ temperature coefficient offset, high stability for long-term use
  • 0.4Pa Pressure noise, more stable data
  • Applications:

  • UAV height control
  • Indoor navigation and positioning
  • Vertical speed measurement
  • Enhancing reality and virtual display applications
  • Specification:

  • Working Voltage: 3.3V~5.5V
  • Working Current: 2mA
  • Communication: I2C
  • I2C Address: 0x63
  • Barometric Pressure Measurement Range: 30~110kPa
  • Relative Barometric Pressure Measurement Accuracy: ±0.01 hPa (950hPa~1050hPa, 25)
  • Absolute Barometric Pressure Measurement Accuracy: ±1 hPa (950hPa-1050hPa, 0~65)
  • Temperature Coefficient Offset: ±0.5 Pa/ (100kPa, 25~45)
  • Absolute Temperature Measurement Accuracy: ±0.4
  • Working Temperature: -40~85
  • Dimensions: 30mm x 22mm/1.18 x 0.87inch
  • Documents:

  • Product wiki
  • Schematics
  • Dimension
  • ICP10111 Datasheet
  • Product Includes:

  • Gravity: ICP-10111 Pressure Sensor x1
  • 2.54-4P I2C/UART Sensor Connector x1
