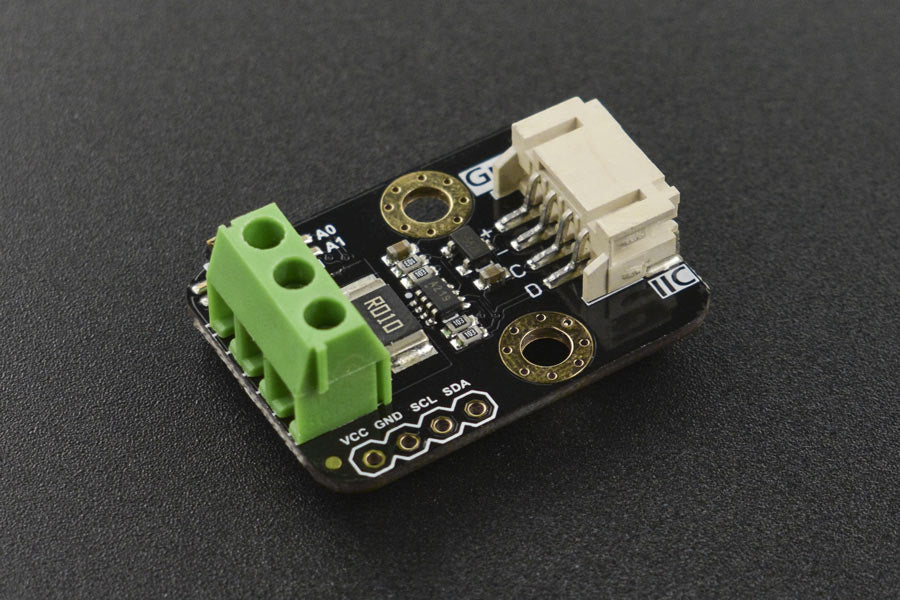

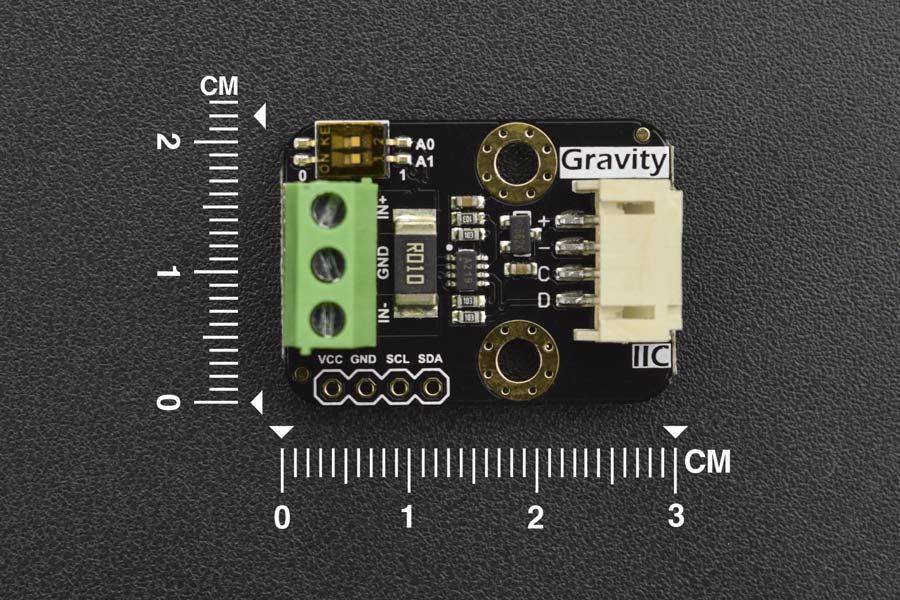

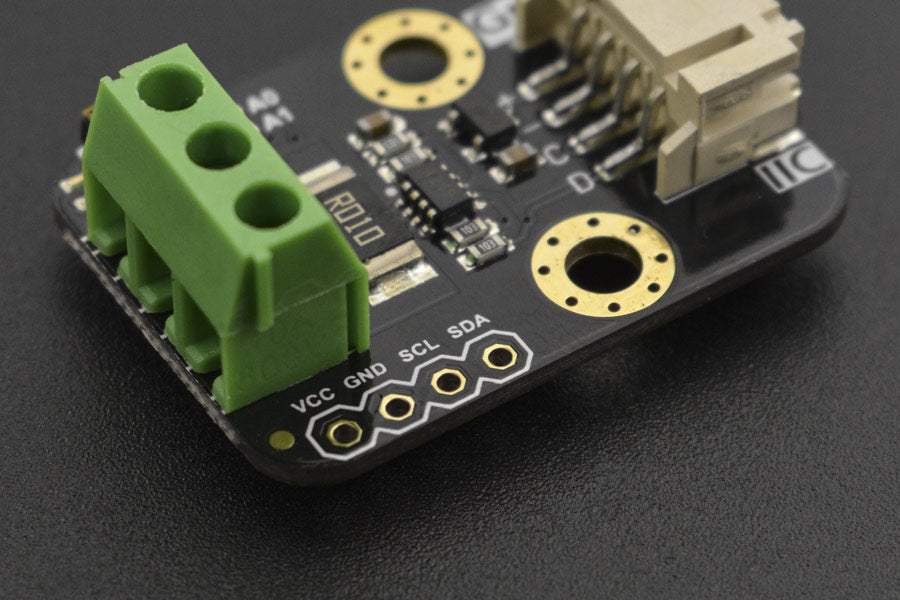

The module adopts TI INA219 zero temperature drift current/power monitoring chip and 2W high power low temperature drift 10mΩ alloy sampling resistor. The voltage and current resolution can reach 4mV and 1mA respectively. Under the full scale measurement condition, the maximum relative error of voltage and current measurement can be superior to ±0.2%. It also provides four I2C addresses that can be configured via the 2P DIP switch. The module accurately measures bi-directional high-side currents (current flowing through the power supply or battery positive), which is especially useful in solar or battery fuel gauge applications where the battery needs to be charged and discharged. This status can be simply determined by positive or negative current readings. In the motor applications, the current can be monitored in real time by monitoring whether the motor current is too large due to overload. In addition, you can use this module to measure the power consumption of various electronic modules or the entire project to evaluate battery life.
Gravity: I2C Digital Wattmeter Connection Diagram (Arduino UNO)
Gravity: I2C Digital Wattmeter Connection Diagram (Raspberry Pi 3B)
Measuring the power consumption of the Gravity: pH meter
Monitor the power consumption of the solar panel, battery and outputs of a solar system
- High precision, high resolution, large range, low temperature drift
- Bidirectional current high side measurement
- Compatible with 3.3V/5V controller
- Sophisticated and compact, easy to embed in the project
- Solar Power Management
- Battery Fuel Gauge
- Electronic Module Power Evaluation

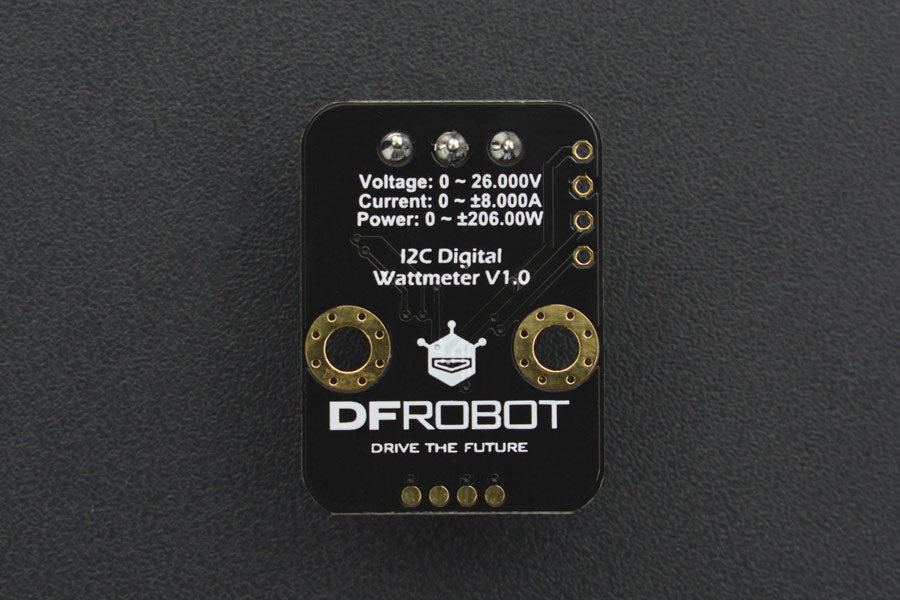

- Input Voltage (VCC) : 3.3V~5.5V
- Voltage Range (IN+ or IN- relative to GND): 0 ~ 26 V
- Voltage Resolution: 4 mV
- Voltage Relative Error:
- Current Range: 0 ~ ±8A (Bidirectional current)
- Current Resolution: 1mA
- Current Relative Error:
- Power Range: 0 ~ 206 W
- Power Resolution: 20 mW (Hardware) / 4 mW (Software)
- Quiescent Current: 0.7 mA
- Interface: Gravity I2C (logic level: 0-3.3V)
- I2C Address: Four options 0x40, 0x41, 0x44, 0x45
- Dimension: 30.0mm*22.0mm/1.18*0.87 in
- Weight: 4g

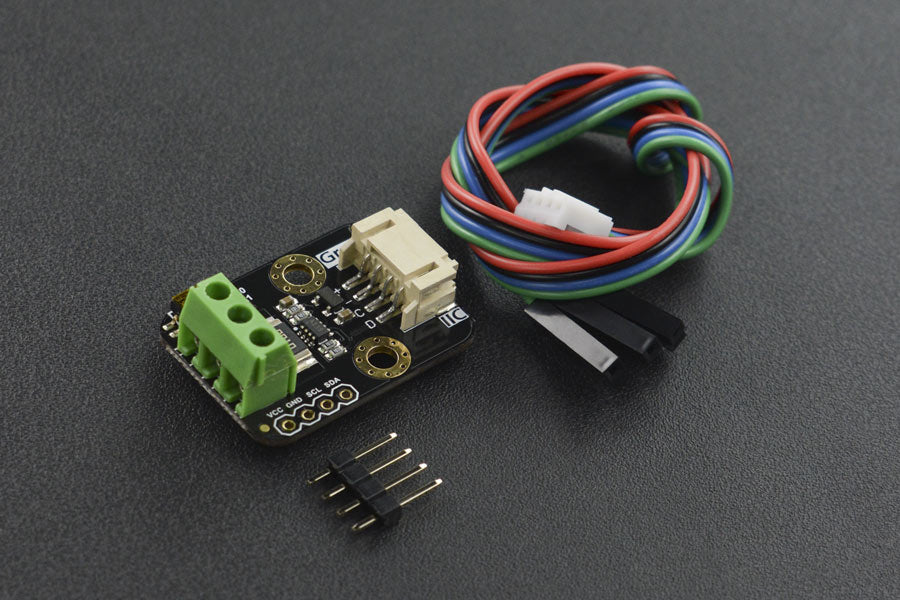

- Gravity: I2C Digital Wattmeter x1
- XH2.54-4P Black Header x1
- Gravity-4P I2C/UART Sensor Wire x1
