Gravity: HUSKYLENS 2 Plus Kit - Edge AI Vision Sensor with Wi-Fi 6 & Wide-Angle Camera

SKU: DF-KIT0222
Sale price A$223.76   Inc. GST
1765 units ships in 7 to 10 days

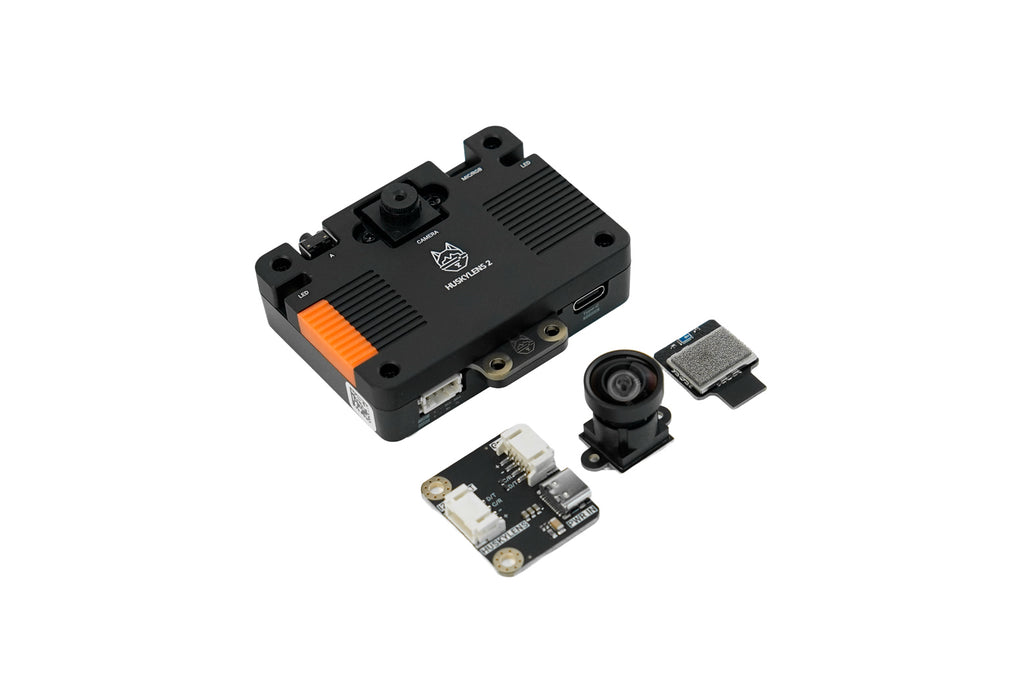

The HUSKYLENS 2 Plus Kit includes HUSKYLENS 2, HUSKYLENS 2 WiFi Module, and the HUSKYLENS 2 Wide-angle Camera Module, enabling more powerful intelligent recognition and remote interaction capabilities. HUSKYLENS 2 offers multiple AI features including object recognition, face recognition, gesture recognition, color tracking, and posture detection, allowing users to get started quickly without complex programming. When used with the WiFi Module, it supports MCP communication, wireless image transmission, and wireless model download, greatly improving flexibility for usage and project deployment. The Wide-angle Camera Module further expands the field of view and is especially suitable for scenarios such as mobile robot navigation, multi-person recognition, and space monitoring. This complete solution combines ease of use, scalability, and professional performance, making it ideal for STEM education, maker labs, and competition project development.

Overview and Features of Gravity: HUSKYLENS 2 Plus Kit - Edge AI Vision Sensor with Wi-Fi 6 & Wide-Angle Camera

Powerful AI Vision Recognition Capabilities

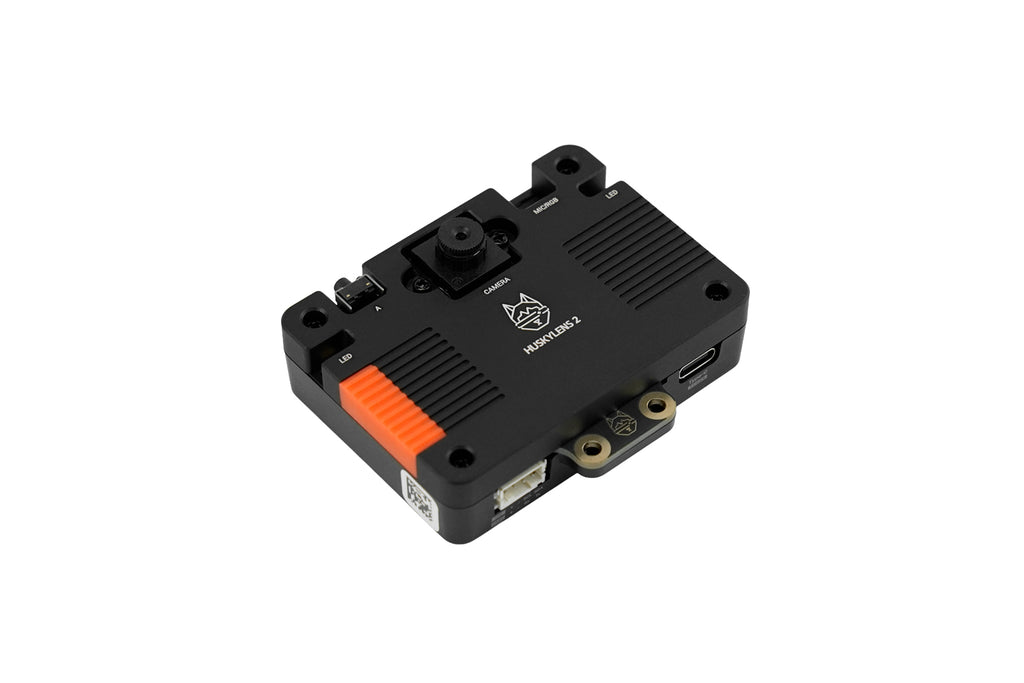

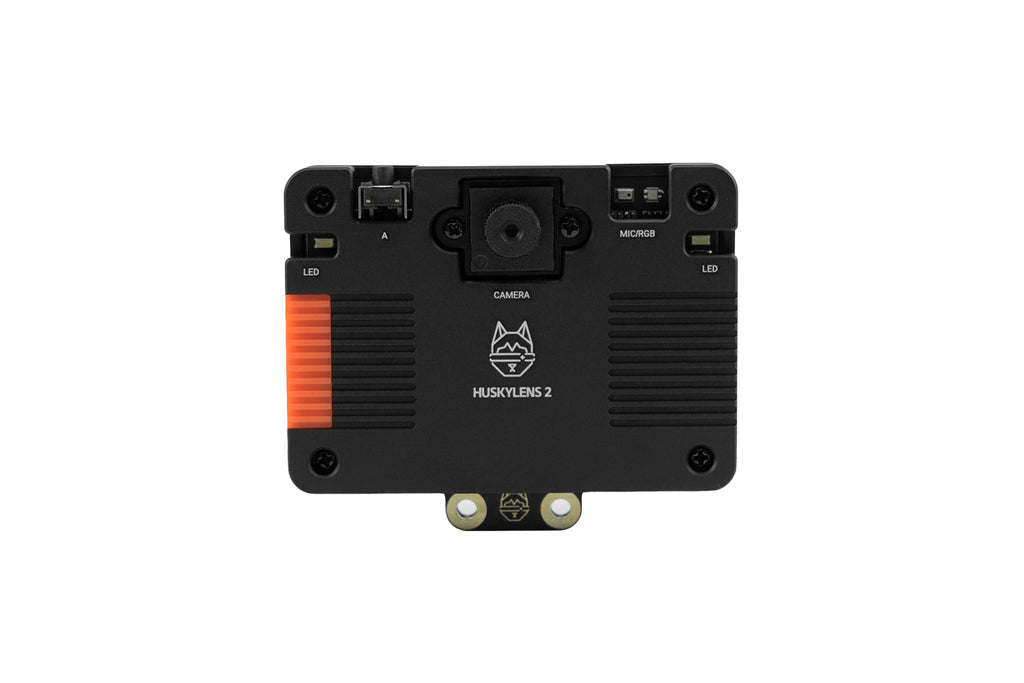

HUSKYLENS 2 integrates high-performance edge AI vision capabilities with multiple built-in visual recognition algorithms, enabling applications such as object recognition, human tracking, motion sensing, and scene understanding with ease. Users can quickly build localized AI vision applications without setting up complex machine learning environments or relying on cloud computing.

Powered by an upgraded vision processing architecture, HUSKYLENS 2 not only delivers stable recognition of common objects, but also supports real-time tracking and continuous learning in dynamic environments. It is ideal for robotics interaction, intelligent control, automated inspection, creative installations, and many other AI-driven projects.

HUSKYLENS 2 features an intuitive “learn-and-use” training workflow that allows users to teach the device new objects or features directly on-device with simple operations. This dramatically lowers the barrier to AI development, making advanced vision applications accessible even to beginners with no prior AI experience.

At the same time, HUSKYLENS 2 offers excellent real-time responsiveness and edge inference performance, enabling stable offline operation with lower latency and improved reliability. Whether for STEM education, maker projects, or robotics competitions, it provides a smarter and more efficient AI vision experience.


Wireless Connectivity for Greater Expansion

With the HUSKYLENS 2 WIFI Module, HUSKYLENS 2 is no longer limited to traditional wired connections. It unlocks a more flexible, wireless, and networked AI vision experience, making it easier to integrate into robotics systems, IoT platforms, and cloud-based applications.

The WIFI Module supports features such as wireless image transmission, wireless model downloads, and MCP communication, allowing users to perform remote debugging, model updates, and data interaction more conveniently while significantly reducing deployment and maintenance complexity.

By leveraging wireless connectivity, developers can easily build applications including remote monitoring, smart inspection, wireless robot control, and cloud-managed AI systems. It also enables classrooms, maker spaces, and competition projects to break free from cable limitations for a cleaner and more flexible development experience.

Whether used for education or professional prototyping, the HUSKYLENS 2 WIFI Module brings greater efficiency, scalability, and freedom to AI vision projects.

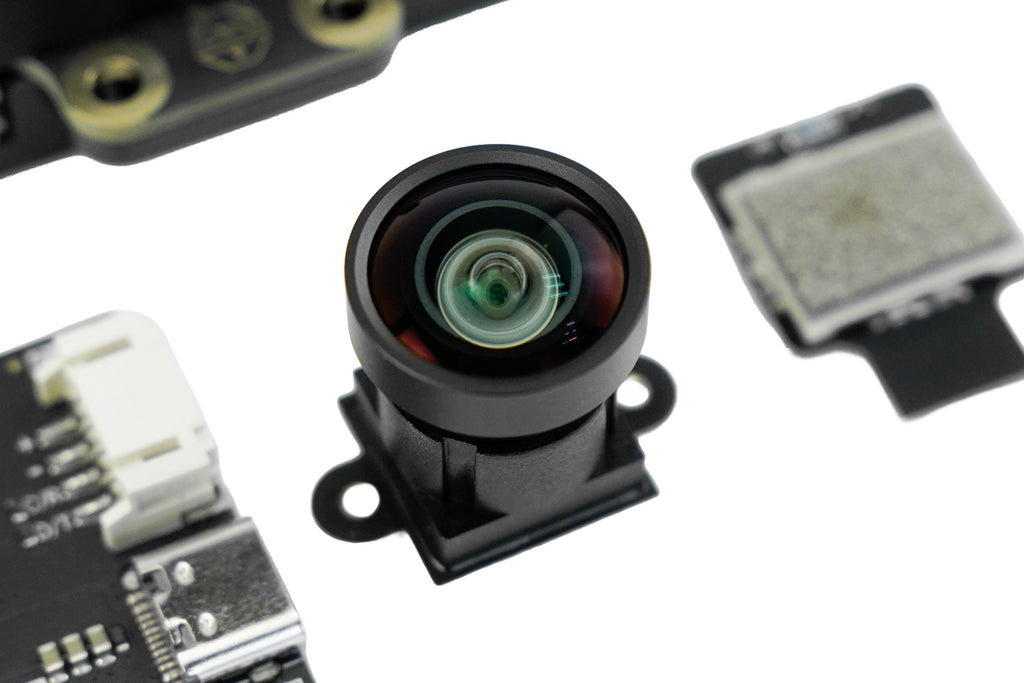

Wide-angle Vision for a Larger Field of View

The HUSKYLENS 2 Wide-angle Camera Module features a high field-of-view wide-angle lens that captures more environmental information in a single frame, significantly reducing blind spots commonly found in traditional vision systems.

Compared with standard lenses, the wide-angle module offers clear advantages in applications such as mobile robotics, spatial awareness, and multi-user interaction. It enables more effective large-area target detection, multi-object recognition, and dynamic environment tracking, greatly enhancing overall visual perception and recognition efficiency.

In scenarios including robot navigation, intelligent inspection, classroom interaction, and space monitoring, the wide-angle vision system helps devices detect targets earlier and obtain more complete environmental data, improving both operational stability and user interaction experiences.

Even in complex or fast-changing environments, the HUSKYLENS 2 Wide-angle Camera Module maintains smooth and reliable visual recognition performance, providing broader and more dependable perception capabilities for AI vision applications.

Applications:

  • STEM education, maker labs, and robotics competitions
  • Mobile robot navigation and intelligent inspection
  • Remote monitoring and cloudmanaged AI systems
  • Classroom interaction and space monitoring
  • Creative installations and automated inspection
  • Wireless robot control and smart home vision systems
  • Specification:

    HUSKYLENS 2 Specification

  • Processor: Kendryte K230 Dual-Core 1.6GHz
  • AI Computing Power: 6 TOPS
  • Memory: 1GB LPDDR4
  • Storage: 8GB eMMC
  • Image Sensor: GC2093, 2MP, 1/2.9”60FPS

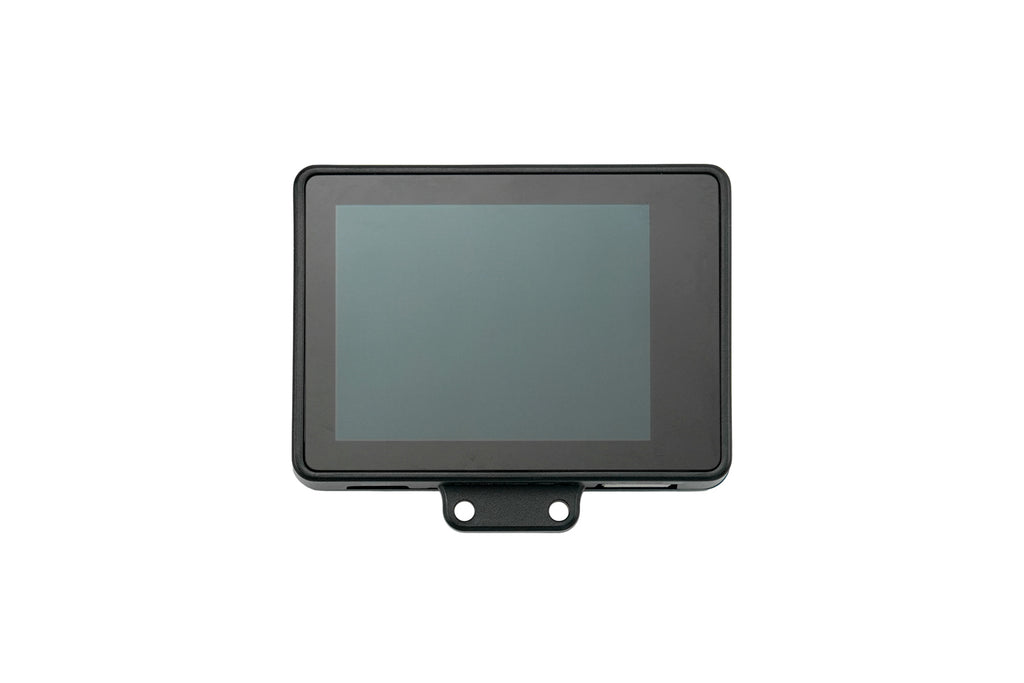

  • Display: 2.4” IPS Touch Screen(640x480), Full-Lamination
  • Buttons: 1 x Function Button
  • Fill Lights: 2 x LEDs
  • RGB Indicator: 1x RGB LED
  • Wi-Fi: 2.4GHz Wi-Fi 6(Slot-in Module)
  • Expandable Storage: 1x TF Card Slot
  • Microphone: Capactive Silicon Microphone
  • Speaker: 1W Acoustic Speaker
  • Operating Voltage: 3.3-5V
  • Power Consumption: 1.5-3W

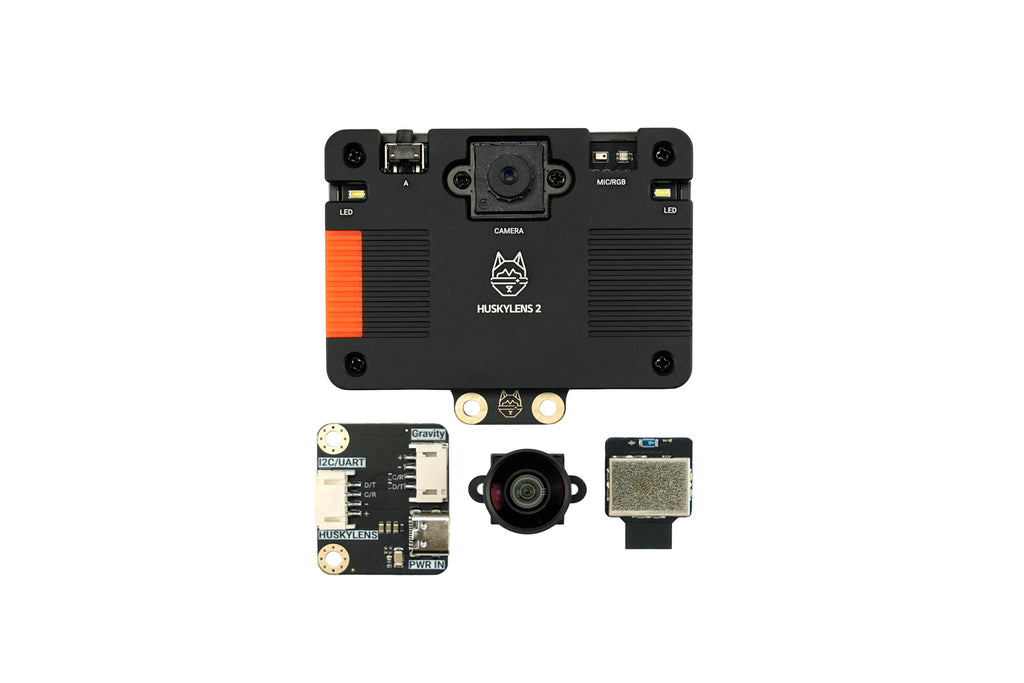

  • Dimensions: 70 x 58 x 19mm
  • Net Weight: 90g
  • Interfaces: USB-C, Gravity(I2C/UART),TF Card Slot

  • HUSKYLENS 2 WiFi Module Specification:

  • WiFi Standard: Wi-Fi 6
  • Wireless Frequency: 2.4GHz
  • Max Rate: 286.8Mbps
  • Bandwidth: 20/40MHz
  • Encryption Protocols: WEP/WPA/WPA3/WPA3
  • Interface Type: USB

  • Camera Specification:

  • Field of View (FOV): D = 116.6°, H = 107.6°, V = 72.6°
  • Effective Focal Length: 2.02 mm
  • Effective Capture Distance:Approximately 0.1~1.5m

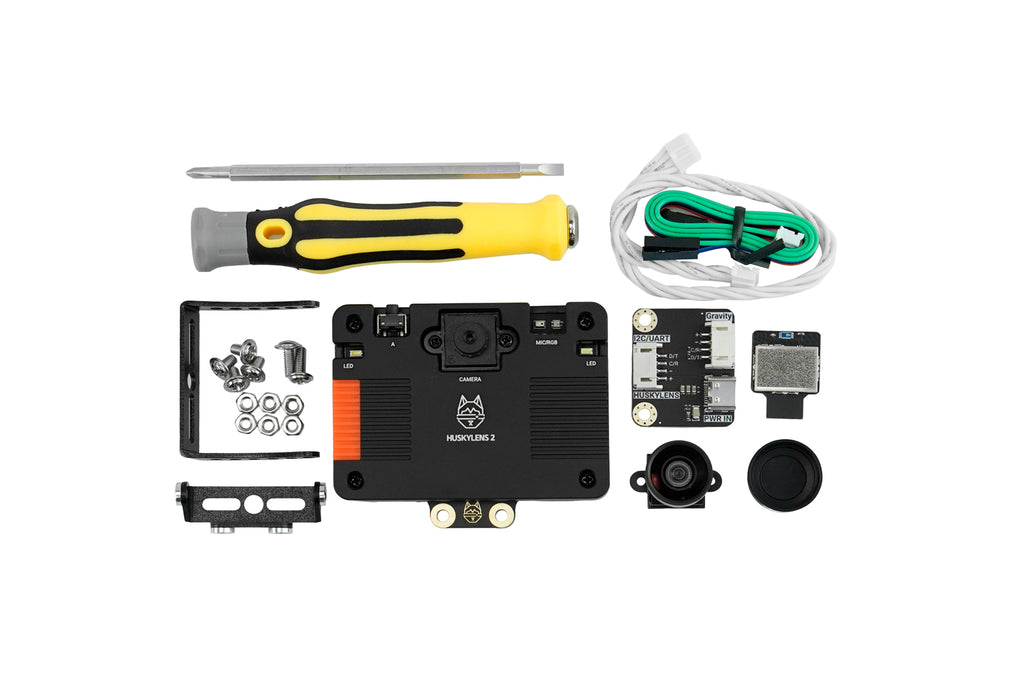

  • Product Includes:

    HUSKYLENS 2:

  • HUSKYLENS 2 x1
  • M3 Screws x6
  • M3 Nuts x6
  • Mounting Bracket x1
  • Raised Bracket x1
  • Gravity: 4Pin Sensor Cable (30cm) x1
  • PH2.0 Double-ended Silicone Cable (20cm) x1
  • Power Adapter Board x1

  • HUSKYLENS 2 WiFi Module:

  • HUSKYLENS 2 WiFi Module x 1

  • HUSKYLENS 2 Wide-angle Camera Module:

  • HUSKYLENS 2 Wide-angle Camera Module x 1
  • Small Phillips Screwdriver x 1
