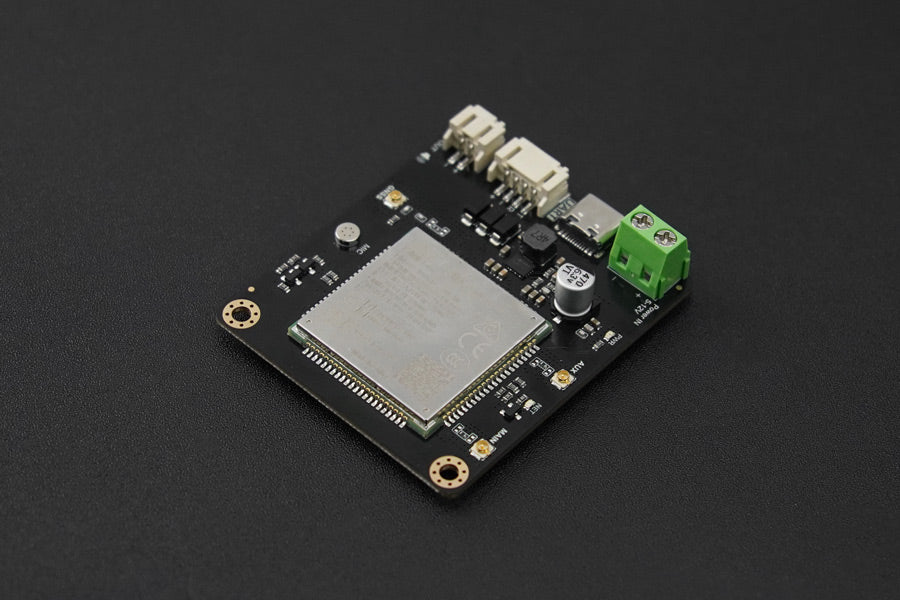

Gravity: High-Speed CAT4 SIM7600G-H Global 4G Communication and GNSS Positioning Module

Price:
Sale price A$145.20   Inc. GST
SKU:
DF-TEL0162
150 units Ships in 7 to 10 days

The SIM7600G-H is an integrated wireless communication module featuring 4G CAT4 (with anuplink speed of 50Mbps and a downlink speed of 150Mbps) and GNSS positioning (supportingGPS, BD, GLONASS). It extensively supports multiple bands, including LTE-FDD, LTE-TDD, WCDMA,and GSM, making it suitable for global regions and most operators' networks. The module is compatible with Arduino, Raspberry Pi, and LattePanda single-board computers, and can be used as a 4G network card.

The specific bands areas follows:

  • LTE-TDD: B34/B38/B39/B40/B41
  • LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66
  • UMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19
  • GSM/GPRS/EDGE: 850/900/1800/1900MHz

  • Additionally, the SIM7600G-H module integrates support for various network protocols includingTCP/IP, IPV4, Multi-PDP, FTP, FTPS, HTTP, HTTPS, DNS, and more. This allows for complex networkcommunications using AT commands without the need to learn or understand the underlyingnetwork protocols, offering strong compatibility and ease of use.

    The SIM7600G-H communication module comes equipped with both UART and USB interfaces. Itcan connect to other MCUs or main controllers via UART or to computers, Raspberry Pi, etc., as aUSB network card through the USB interface. It supports mainstream operating system drivers(Windows, Linux, Android, and other USB drivers).

    Furthermore, the SIM7600G-H module includes a microphone and audio power amplifier circuit,enabling it not only to function for data transmission but also for making calls and sending textmessages. When combined with GNSS positioning, it can be conveniently used in scenarios likeanti-theft, logistics, and transportation


    The CAT1 SIM7600G 4G Communication Module can be connected to single-board computers like Raspberry Pi, LattePanda, etc., and can be used as a 4G network card for SBCs.

    Connection Diagram of SIM7600G 4G Module and LattePanda 3 Delta single board computer

    Connection Diagram of CAT4 SIM7600G-H 4G Communication Module and LattePanda 3 Delta single board computer


    Connection Diagram of SIM7600G 4G Module and Raspberry Pi 5 single board computer

    Connection Diagram of CAT4 SIM7600G-H 4G Communication Module and Raspberry Pi 5 single board computer


    The SIM series wireless communication modules offer multiple products to choose from. Thisseries of 4G products is differentiated by communication rates and satellite positioningcapabilities. Click here to check the selection guide of 4G communication modules.

    Functional Diagram of SIM7600G-H 4G Module

    Functional Diagram of SIM7600G-H 4G Module


    Connection Diagram of SIM7600G-H 4G Module and Arduino UNO

    Connection Diagram of SIM7600G-H 4G Module and Arduino UNO

    Features:

  • Controlled via AT commands, eliminating the need to learn complex underlying networkprotocols.
  • Supports GNSS satellite positioning (GPS, GLONASS, BD).
  • Supports multiple frequency bands including LTE-FDD, LTE-TDD, WCDMA, and GSM.
  • SMS functionality supports MT, MO, CB, Text, and PDU modes.
  • Supports various network protocols such as TCP/IP, IPV4, Multi-PDP, FTP, FTPS, HTTP, HTTPS,and DNS.
  • Capable of data communication, voice calls, and SMS functionalities.
  • Provides USB network card functionality.
  • Applications:

  • IoT data transmission and remote control
  • Mobile device monitoring
  • Logistics and transportation
  • Warehousing and theft prevention
  • Surveillance and positioning
  • Specification:

  • Power Supply Voltage:
                  Terminal connector: 5-12V
                  TYPE-C: 5V
  • UART Interface:
                  Voltage level: 3.3V-5V
                  Physical interface: PH2.0-4P Gravity sequence standard
  • Audio Output Interface: PJ2.0-2P
  • Frequency Band Applicable Regions: Global
  • Supported Bands:
                  LTE-TDD: B34/B38/B39/B40/B41
                  LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66
                  UMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19
                  GSM/GPRS/EDGE: 850/900/1800/1900MHz
  • 4G Communication Rate: CAT4 (Uplink speed 50Mbps, Downlink speed 150Mbps)
  • GNSS Satellite Positioning: GPS, BD, GLONASS
  • 4G Antennas:
                  MAIN antenna IPEX male connector ×1
                  AUX antenna IPEX male connector ×1
  • GNSS Antenna: IPEX antenna male connector ×1
  • Voice Microphone: ×1
  • SIM Card Slot: Push-lock type
  • LED Indicators:Power status: Red
  •               Network status: Blue
  • Operating Temperature: -40°C ~ 85°C
  • Product Dimensions: 60mm×52mm
  • Documents:

  • Product wiki
  • Schematic
  • AT Command Set
  • 2D_CAD
  • 2D_DXF
  • 3D_STP
  • Product Includes:

  • CAT4:SIM7600G-H 4G Communication Module ×1
  • 4G TEL, GPS antenna pack ×1
  • Triple-cut universal SIM card adapter ×1
  • Gravity PH2.0-4P Communication Connection Cable ×1
