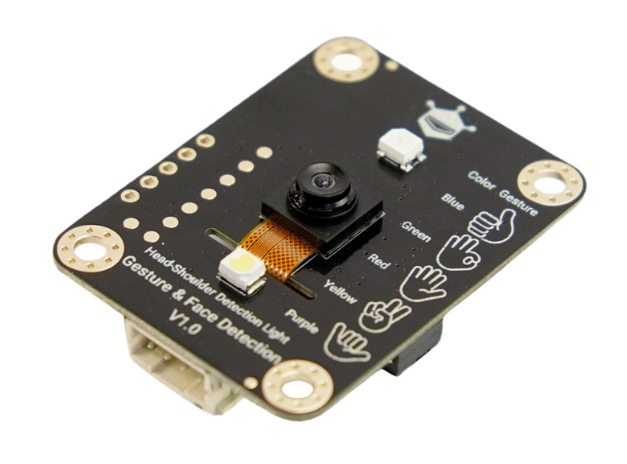

The AI Visual Gesture and Human Presence Tracking Sensor is a high-performance, offline AI recognition module designed for non-contact interaction. Featuring advanced gesture recognition and head-and-shoulder detection, it identifies up to five distinct gestures and senses human presence within a range of 3 meters. Compatible with Arduino, Raspberry Pi, and IoT ecosystems, it enables seamless, touch-free control in hygiene-sensitive environments, high-noise scenarios, and smart automation systems.
Figure: Detects Five Distinct Gestures
Advanced AI-Powered Gesture Recognition
The sensor accurately recognizes 5 predefined gestures at distances up to 3 meters, enabling intuitive and contact-free interaction. Ideal for applications such as non-contact device operation, smart home control, and interactive public displays.Human Presence and Motion DetectionWith built-in head-and-shoulder detection, the sensor identifies human presence and movement in its field of view. It outputs the number and coordinates of detected upper-body targets, allowing smart devices like fans or lighting systems to dynamically respond to user location—enhancing automation and energy efficiency. Versatile Integration and Seamless ConnectivitySupporting both I2C and UART communication, the sensor integrates easily with various embedded platforms. Operating at 3.3V–5V, it is also compatible with graphical programming platforms such as MakeCode and Mind+, simplifying development and deployment.
Features:
- Offline AI visual recognition with fast and accurate response
- High-sensitivity recognition of five hand gestures
- Reliable detection at distances up to 3 meters
- Supports head-and-shoulder detection with coordinate and count output
- Dual communication interfaces: I2C and UART
- Compatible with 3.3V and 5V logic and power supply
- Supports graphical programming via MakeCode and Mind+
Applications:
- Smart home automation
- Hands-free control in hygiene-critical areas
- Interactive multimedia and information systems
Specification:
Electrical Specifications
- Operating Voltage: 3.3V – 5V
- Logic Level Voltage: 3.3V
- Current Consumption: 100mA

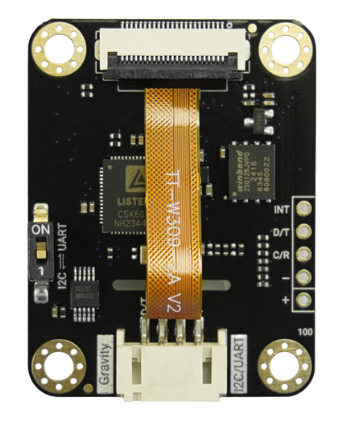

Communication & Interface
- Connector Type: PH2.0-4P / 2.54mm pin header
- Communication Protocols: I2C / UART
- I2C Address: 0x72
- Default UART Baud Rate: 9600bps
- UART Protocol: Modbus
- Interrupt Output: 2.54mm pin header
Recognition Capabilities
- Supported Gesture Types (5):
Thumbs up
Extend the middle, ring, and little fingers
Open palm facing outward
Extend the index and middle fingers
Extend the thumb and little finger - Maximum Recognizable Faces & Head-Shoulder Count: 10
- Detection Area for Face & Shoulders: Recognizes upper-body presence within camera range
- Face Recognition Confidence Score: 0 – 100
- Position Coordinate Output: Supported
- Gesture Recognition Distance: 0.5m – 3m
- Face Recognition Distance: 0.5m – 3m
- Camera Field of View (FoV): 85° (diagonal)
- Camera Focal Length: 1.56mm

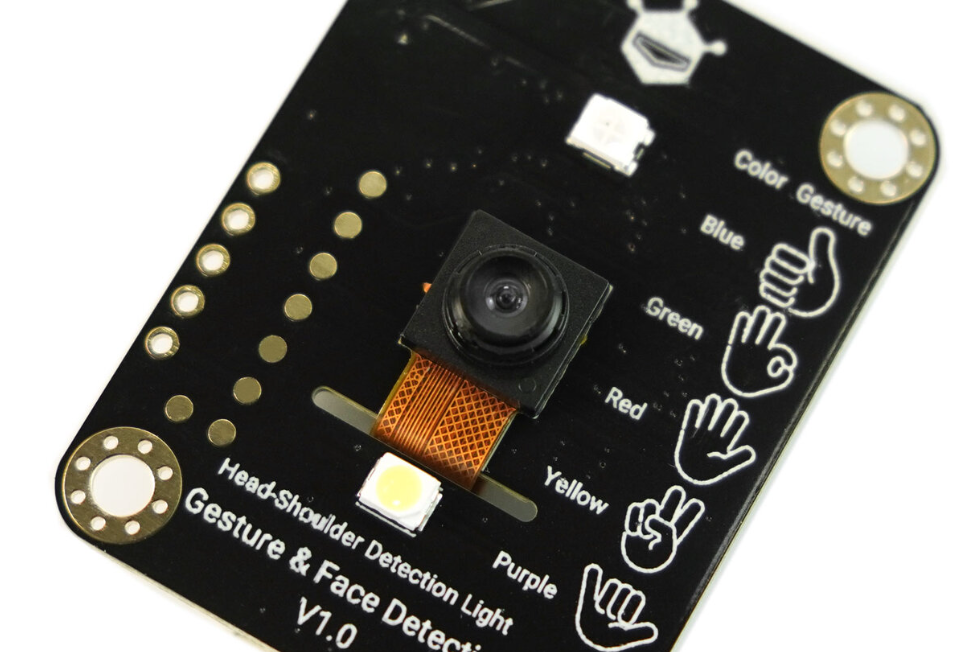

Visual Indicators
- Gesture Recognition RGB Indicator:
Blue: Thumbs up
Green: Extend the middle, ring, and little fingers
Red: Open palm outward
Yellow: Extend the index and middle fingers
Purple: Extend the thumb and little finger - Presence Detection LED: Illuminates when a person is detected, turns off when no presence is detected

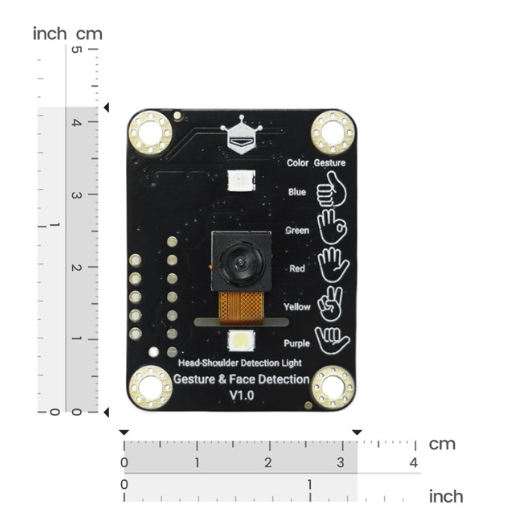

Mechanical Dimensions
- PCB Dimensions: 42mm × 32mm
- Mounting Hole Spacing: 25mm × 35mm
- Mounting Hole Diameter: 3.1mm
Documents:
- Product wiki
- Arduino Tutorial
- Mind+ (Based on Scratch3.0) Graphical Programming
- Makecode Tutorial
- 2D CAD
- 2D DXF
- 3D STP

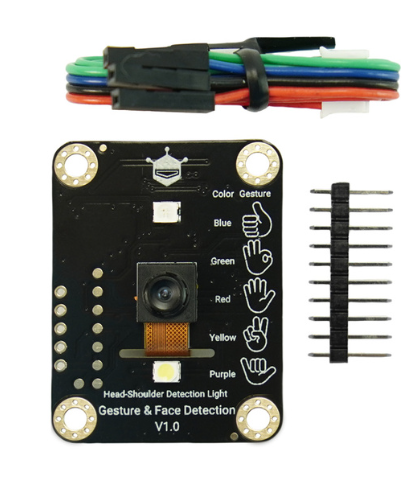

Product Includes:
- AI Visual Gesture and Human Presence Tracking Sensor x1
- Gravity PH2.0 - 4P connecting line x1
