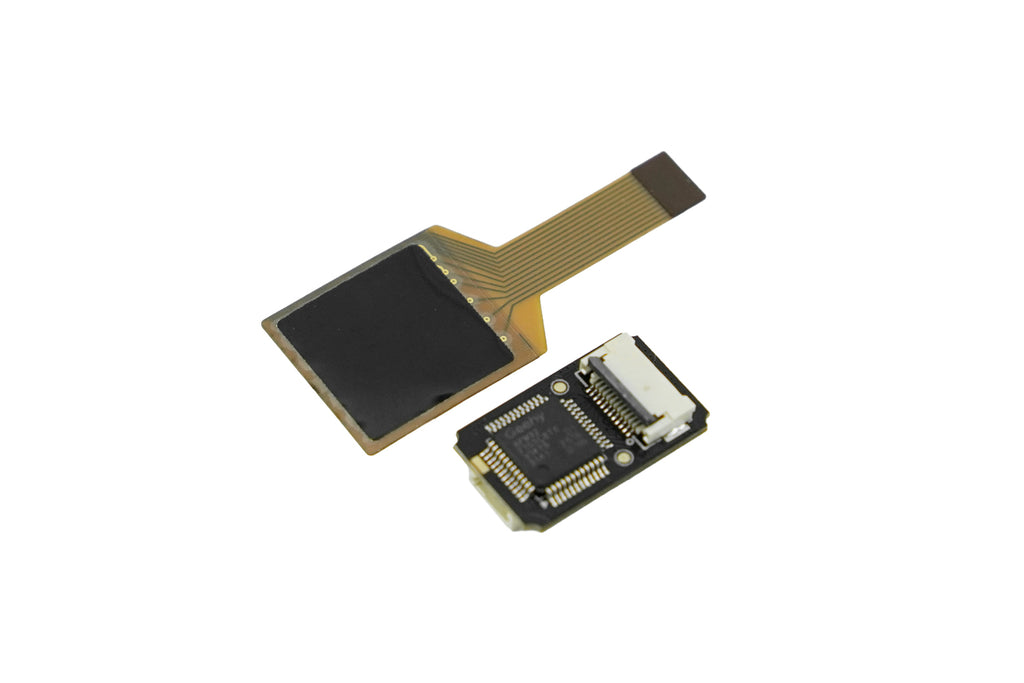

This Gravity: 6×6 Flexible Tactile Pressure Sensor Array is a high-performance tactile sensing solution specifically designed for intelligent gripping systems, human-computer interaction (HCI), and advanced scientific research. Utilizing cutting-edge flexible thin-film technology, the sensor integrates 36 independent detection units within a compact 15×15mm sensing area. This density allows for the real-time capture of precise pressure distribution and subtle tactile changes.
Unlike traditional single-point pressure sensors, this array supports UART interface cascading, significantly reducing the complexity of multi-sensor wiring. Its ultra-thin and bendable physical profile acts as an "electronic skin," allowing it to seamlessly conform to robotic grippers, wearable devices, or DIY dexterous hands. With the dedicated Tactile Sensor Tool host software and comprehensive embedded software support, developers can achieve rapid project prototyping and verification.
Tactile Matrix Array: Precise Pressure Distribution Mapping
The sensor's interior is engineered with a matrix of 6 horizontal columns and 6 vertical rows, forming a grid of sensing points with a precision pitch of just 2.5mm. This high-density layout enables the device to generate real-time "Pressure Heatmaps," providing exceptional accuracy whether monitoring overall force distribution or analyzing localized pressure points. Engineered for high-speed performance, the sensor achieves microsecond-level response times (10μs), ensuring seamless data capture for dynamic applications.
Ultra-Compact: Non-Invasive Integration for Various Projects

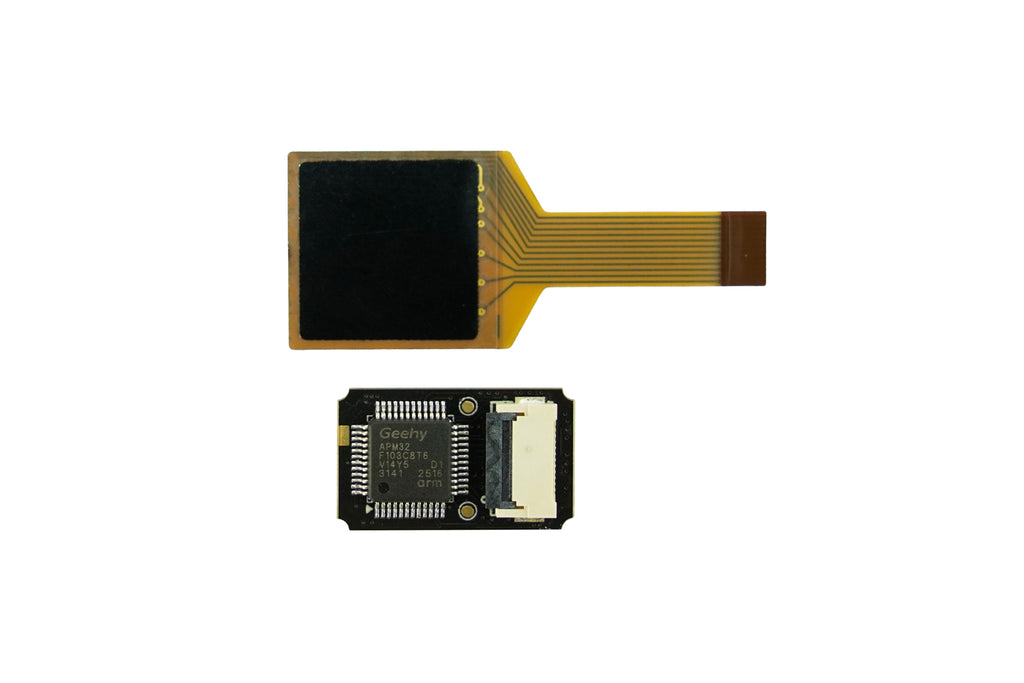

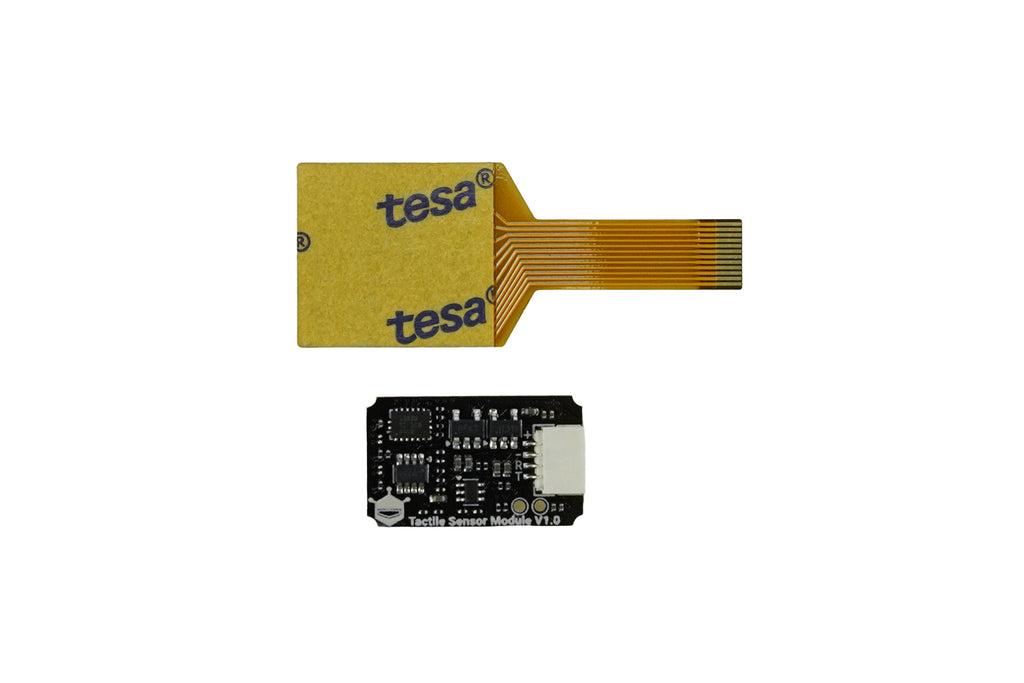

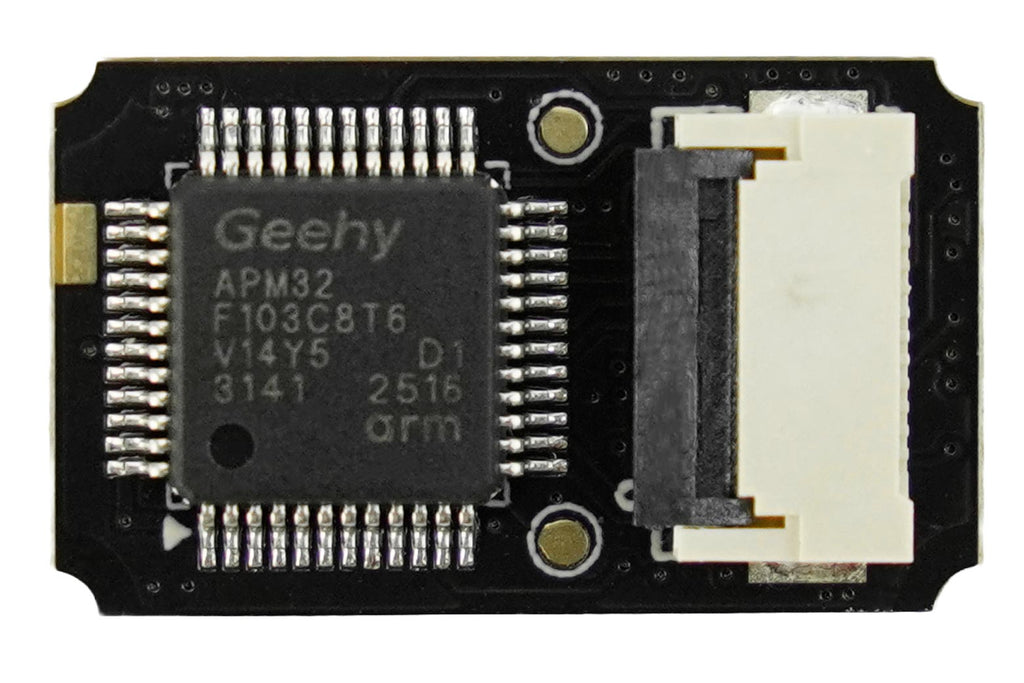

To meet the rigorous space constraints of advanced projects, this product features an ultra-thin sensor profile and a tiny 20×12mm adapter board. Its compact dimensions, combined with the adhesive backing on the sensor, allow it to be easily mounted and embedded into space-limited robotic grippers or small-scale wearable devices without requiring structural modifications.
UART Cascading & Ease of Use: Rapid Prototyping

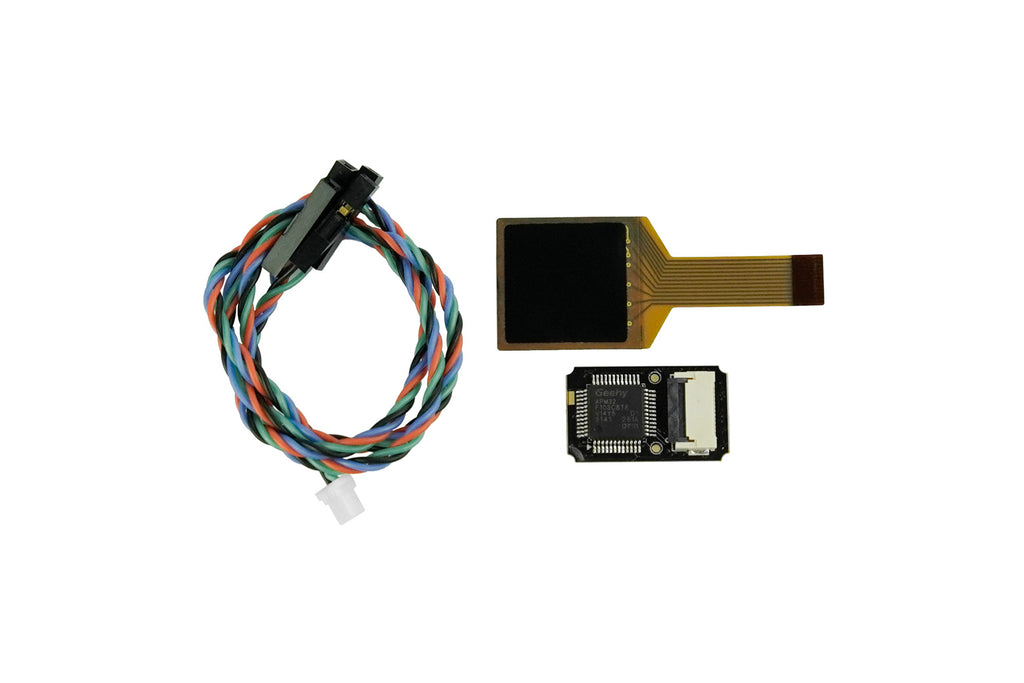

The sensor features an optimized communication protocol with full support for the Arduino, ESP32, and Raspberry Pi ecosystems. It comes equipped with a 30cm flexible silicone cable that is both durable and easy to connect. Via the UART interface, users can effortlessly retrieve data from all 36 pressure channels, eliminating the need to build complex custom analog acquisition circuitry.
Flexible FPC Material: Heat Resistance & High Durability
Constructed from high-quality Flexible Printed Circuit (FPC) material, the sensor features a compact structure that remains resistant to deformation even under high temperatures. With a service life exceeding 1 million cycles, the product ensures a consistent repeatability of ±5%, even during long-term, high-intensity repetitive mechanical motions.
Developer Pro-Tips
Applications:
Specification:
Product Includes:
