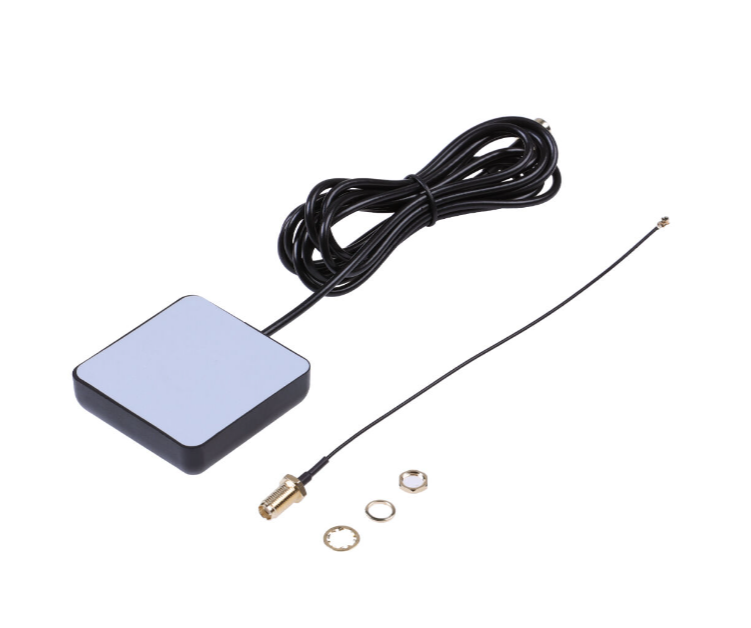

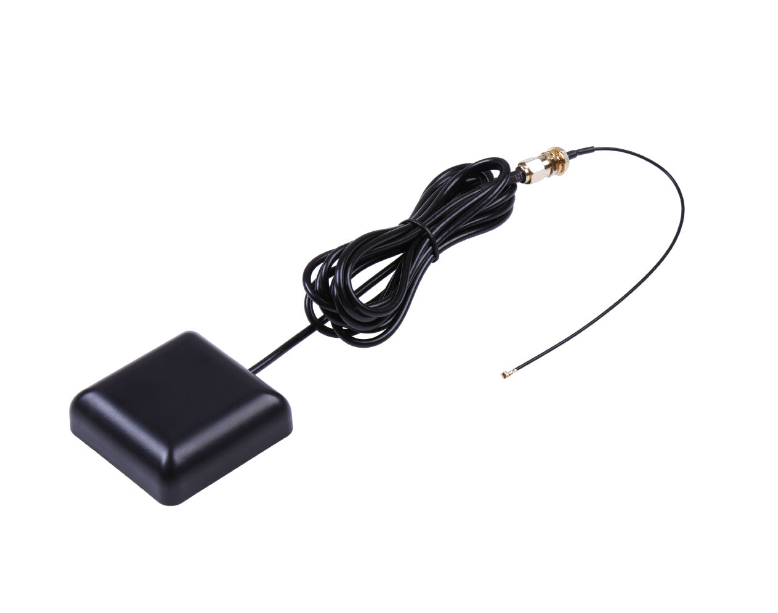

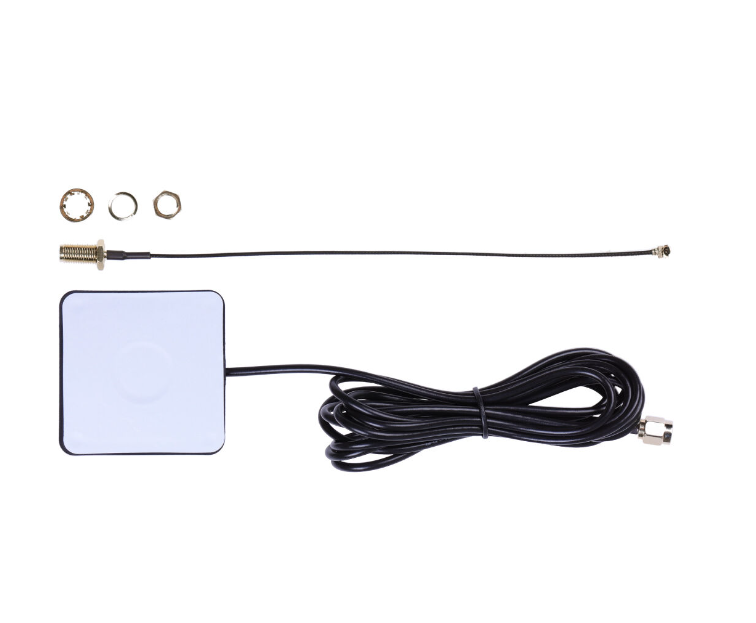

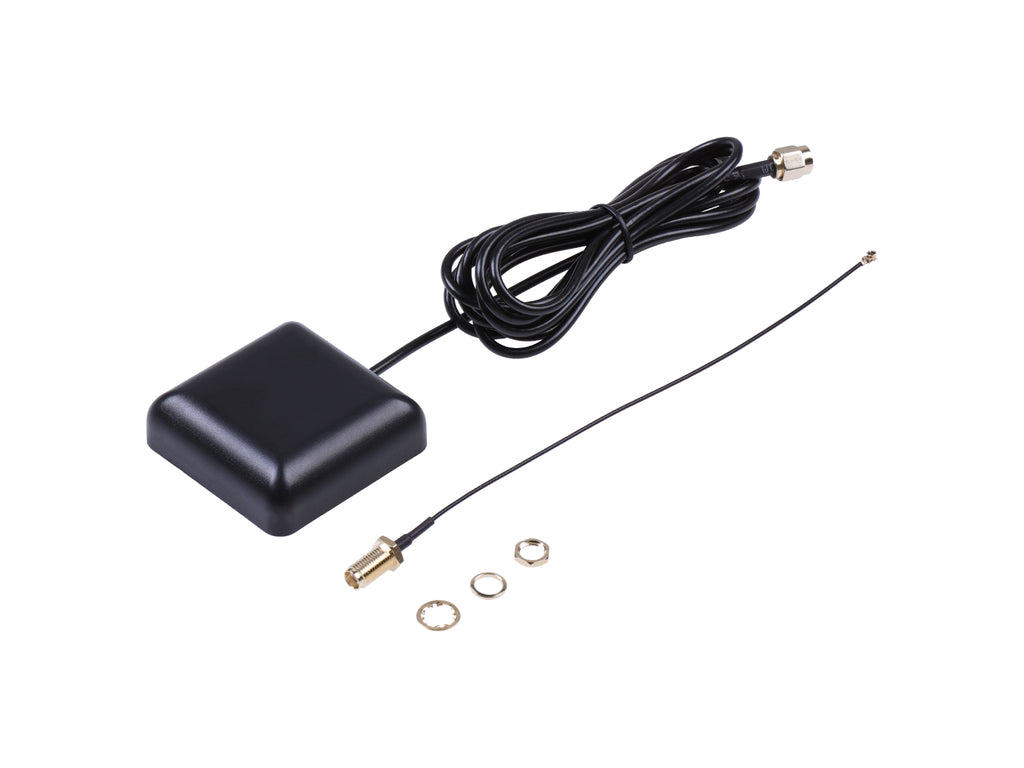

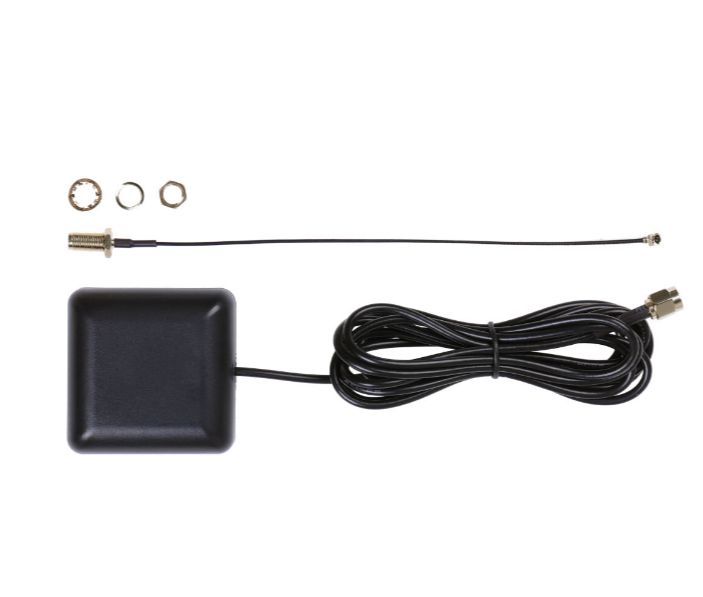

This GPS Antenna Kit is perfectly suited for GPS, BD, and GLONASS applications. Its design is optimized for maximum performance and small size, granting reliability in various navigation and positioning systems. Its RHCP polarization and notable gain specs offer consistent and precise signal reception for the reTerminal DM, no matter the environment.
Feature
- GPS Antenna compatible for reTerminal DM
- Multiple navigation system applications supported:
- BD: BeiDou Navigation System
- GPS: Global Positioning System
- GLONASS: GLONASS Navigation System
- Enhanced Frequency Range:
- BD: 1561±2MHz
- GPS: 1575.42MHz±2MHz
- GLONASS: 1602MHz±5MHz
Application
- Wireless communication systems in industrial automation
- Wireless data transmission for smart agriculture
- Connection for remote monitoring and control systems
- Wireless networking for smart homes and buildings
- Wireless monitoring in environmental monitoring systems
- Wireless connectivity for IoT devices in various industries.
Specification
Electrical characteristics
Parameter | Value |
Antenna model | 3540A |
Dimensions | 35mm x 35mm x 4mm |
Frequency Range | BD: 1561±2MHz GPS: 1575.42MHz±2MHz GLONASS: 1602MHz±5MHz |
V.S.W.R | 2.0 MAX |
Bandwidth@10dB | BD: 5MHz GPS: 5MHz MIN GLONASS: 10MHz MIN |
Passive Gain | BD: 5.0 dB typ @ 70x70mm ground plane GPS: 5.0 dB typ @ 70x70mm ground plane GLONASS: 5.0 dB typ @ 70x70mm ground plane |
Active Gain | BD: 22±3dB typ @ 2000mm RG174 line GPS: 23±3dB typ @ 2000mm RG174 line GLONASS: 22±3dB typ @ 2000mm RG174 line |
LNA Gain | BD: 22±3dB typ @ 2000mm RG174 line GPS: 22±3dB typ @ 2000mm RG174 line GLONASS: 22±3dB typ @ 2000mm RG174 line |
Impedance | 50Ω |
Polarization | RHCP |
DC Voltage | 3.3±0.3V |
DC Current | 12±2mA(@3.0V) |
Material
Part Name | SPEC |
Antenna | Dielectric Ceramics |
Shielding | Tinplate |
PCB | FR4 |
Sheathing | ABS (black) Dimensions: 50.8mm×50.8mm×16.5mm |
RF Cable | RG174 Length: 2000mm |
RF Connector | SMA MALE |
Magnet | Nd2FeB magnet |
Working Temperature | -40℃～+85℃ |
Relative Humidity | 10%～95% RH |
Storage Temperature | -55℃～+100℃ |
Vibration | Sine sweep @1.5mmAM 10~55Hz each Axis |
Hardware Overview
How to connect with reTerminal DM
As you can see below: this antenna should be installed on the 4G module on the reTerminal DM.
Part List
GPS Antenna Kit for reTerminal DM | x1 |
ECCN/HTS
| HSCODE | 8517710000 |
| USHSCODE | 8517620010 |
| UPC | |
| EUHSCODE | 8531202090 |
| COO | CHINA |
