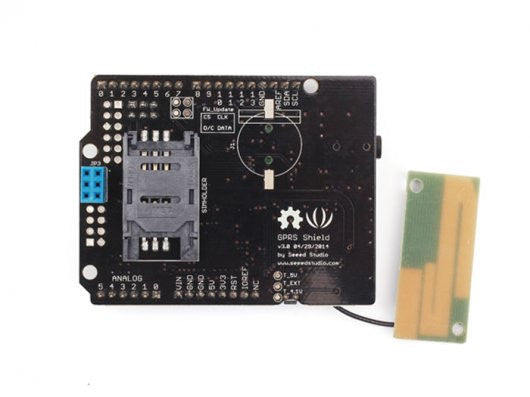

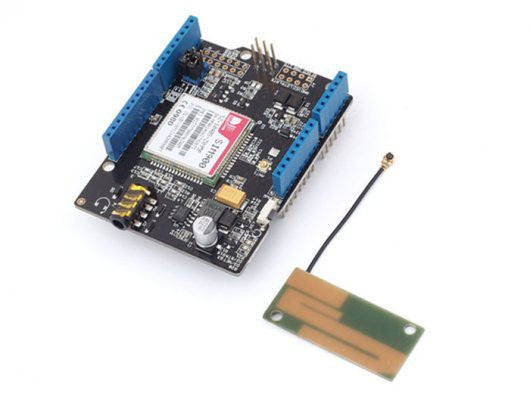

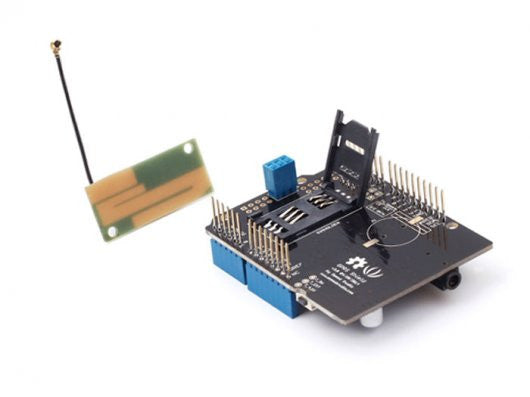

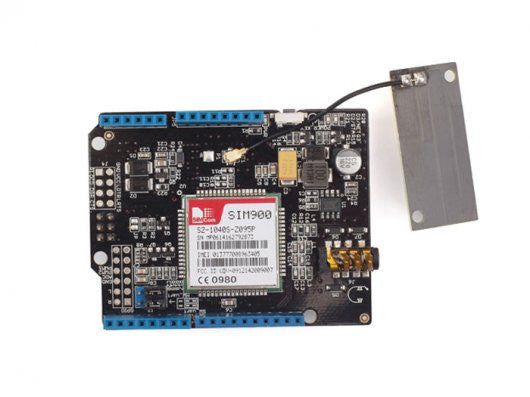

GPRS Shield V3.0

$84.01 AUD  Inc. GST


SKU SS113030009
Ships in 24 hours 19 units

increment
decrement
decrement increment

The difference between this version and the previous version is, changing the arduino socket to the latest Arduino Uno standard. Except this, all the features are same with the previous version.
Compatible with standard Arduino and Arduino Mega
Selectable interface between hardware serial port and software serial port
Quad band support: 850/900/1800/1900MHz
Support TCP/UDP protocols
Full control via AT commands set: Standard - GSM 07.07 & 07.05 and Enhanced - SIMCOM AT Commands
2-in-1 headset jack
Convenient external SIM card holder
Low power consumption: 1.5mA(sleep mode)

Specification

Compatible:Arduino UNO/Seeeduino directly ; Other main board via jumpers;
Selectable interface:UART, Software seria;
Quad band support:850/900/1800/1900MHz;
Communication support:Standard - GSM 07.07 & 07.05 and Enhanced - SIMCOM AT Commands;
Operation temperature:-40°C to +85 °C;
Protocol support:0710 MUX protocol, embedded TCP/UDP protocol, FTP/HTTP, FOTA, MMS, embedded AT;
Certification of SIM900:CE, IC, FCC, ROHS, PTCRB, GCF, ICASA, REACH, AT&T
Dimensions:68.58 * 53.34mm;
Power supply:5v via 5V pin, 6.5~12v via Vin pin;
