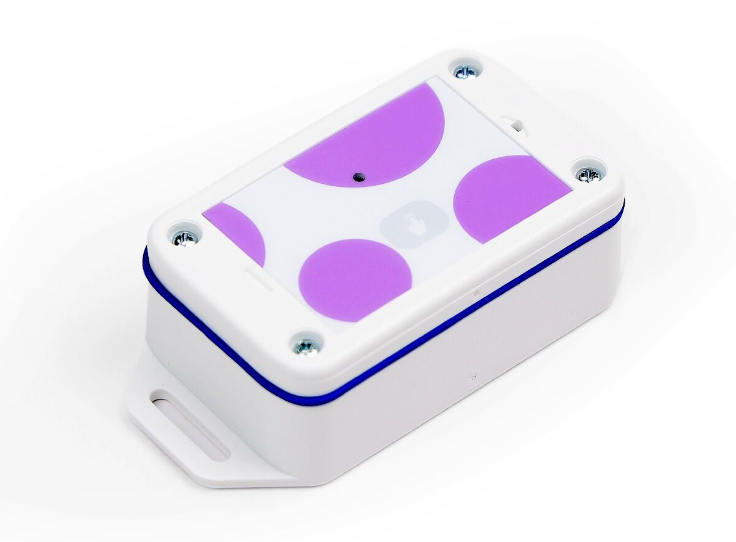

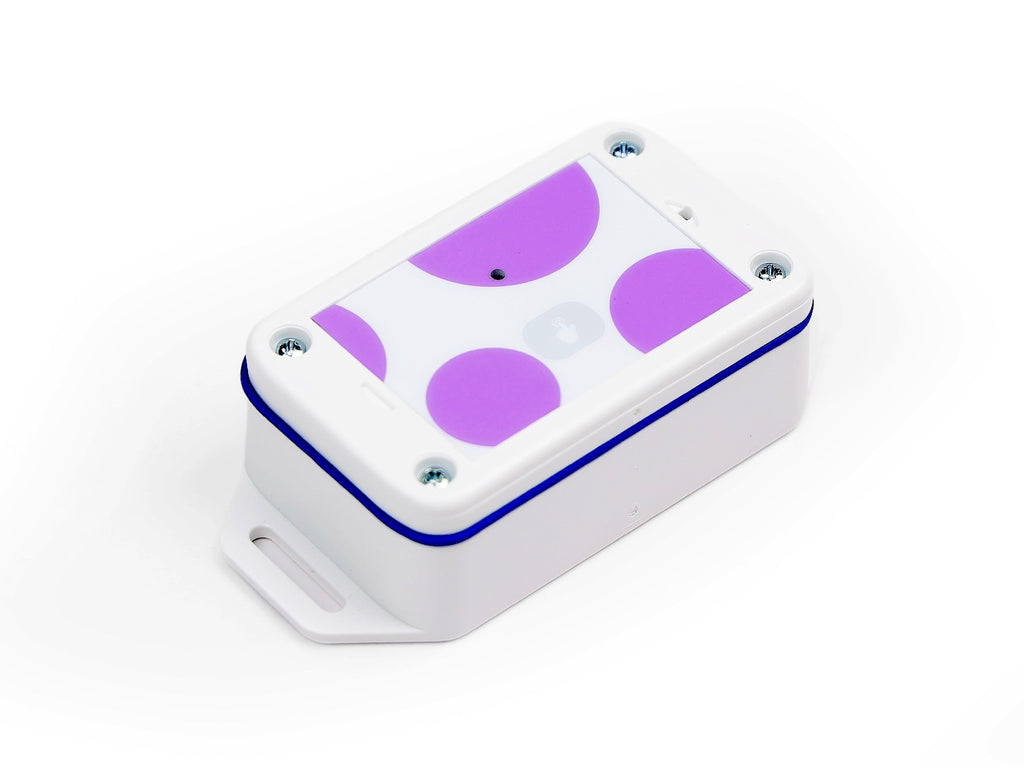

Generic Node (Sensor Edition)

Price:
Sale price A$148.35   Inc. GST
SKU:
SS114992725
203 units Ships in 7 to 10 days

Features

Generic Node (Sensor Edition) Node is a LoRaWAN® node containing multiple on-board components and peripherals, and with the provided SDK you can easily build IoT applications.

The additional strong end to end encryption and firmware over the air update in a device make it a roaming, secure and low-cost sensor that lasts on a battery for many years.

When the device is in the field, it will be the same device from production all the way to installation, which will bring immense economies of scale advantages.





Application

  • Hospital
  • Retail
  • Smart Building
  • Smart City
  • Agriculture
  • Smart Office

Specifications

Air Temperature

Range

-40 to 125 °C

Accuracy

± 0.2 °C

Response time (τ63%)

8 s

Air Humidity

Range

0 to 100 %RH

Accuracy

± 2 %RH

Response time (τ63%)

5 s

Accelerometer

Full Scales

±2g/±4g/±8g/±16g

Output Data Rates

1Hz to 5.3 Hz

Operating Temperature

-40 to +85 °C.

General Parameters

Microcontroller

STM32WL55CCU6 Dual-core M4/M0 + SoC

Flash

256 Kbytes

SRAM

64 Kbytes

External Flash

16 Mbit

Support Protocol

Based on LoRaWAN v1.0.2 protocol

Frequency

150MHz - 960MHz

LoRa Power Output

up to +14dBm (EU868),+22.00 dBm (US915)

Support modulations

LoRa, (G)FSK, (G)MSK, and BPSK

Current Consumption

~1.8 μA (sleep mode w/RTC)

Communication Distance

1 to 5km (depending on gateway antenna and environments)

IP Rating

IP 65

Operating Temperature

-40 to +85 °C

Operating Humidity

0 to 100 %RH

Device Weight

80g

Certification

CE

Battery (* Not contained in equipment)

Alkaline Battery

standard 2xAA

Battery Life

≥ 4 years

Other battery Voltage

2.2V to 5.5V

Hardware overview





Programming / debug pins - there are 7 pins.

  • NRST - reset
  • SWD / PA13 - programming/debug pin (bi-directional data pin)
  • CLK / PA14 - programming/debug pin (clock signal)
  • TxD / PA2 - serial pin (serial communication transmit data)
  • RxD / PA3 - serial pin (serial communication receive data)
  • GND - ground
  • VCC - voltage out, 2.8 V

User GPIO pins - there are 7 pins.

  • PB3 - SWO / RTS / internally connected to the user button
  • PA15 - internally connected to the piezo speaker
  • PA12 - I2C, SCL
  • PA11 - I2C, SDA
  • VCC - voltage out, 2.8 V
  • GND - ground
  • VIN - voltage in

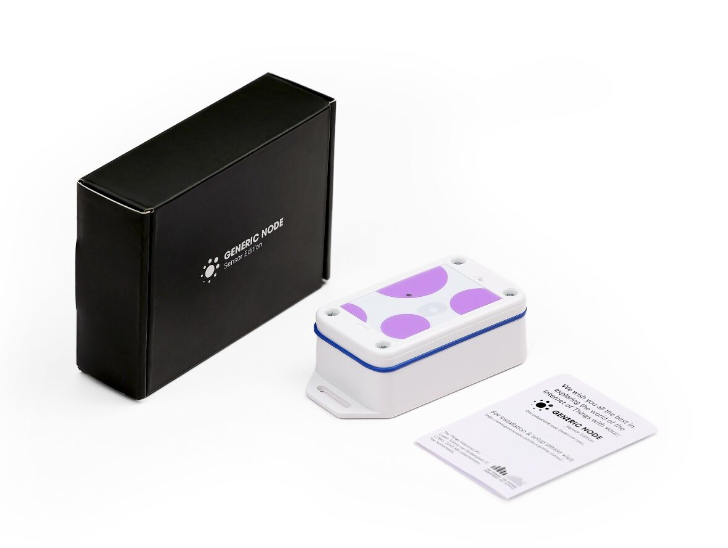

Part List

Sensor Node

x1

User Guide

x1

ECCN/HTS

HSCODE9025800090
USHSCODE9026104000
UPC
EUHSCODE9013101000
COOCHINA
