Doesn't this fixture clamp look like a character in a Pixar movie? If you just drew two little eyes on it then you could just imagine it hopping around on nifty, adorable little adventures that are heartwarming and...sorry, we got carried away.

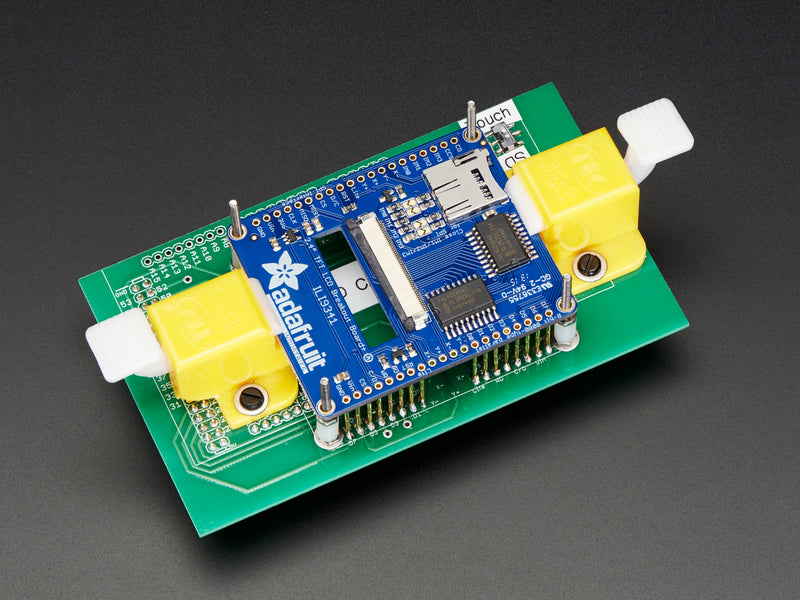

This fixture clamp is a great way to hold a printed circuit board in place while you're testing or programming. It comes with two mounting screws so you can attach the clamp to your tester. Just press down on the white lever to add or remove a PCB then release to keep the board in nice and snug.
We do have a rough placement object in our EagleCAD library, its called FIXCLIP, your mileage may vary!
- Base Plate: 34mm x 26mm / 1.3" x 1.0"
- Top: 26mm deep x 22mm tall x 18mm wide / 1.0" deep x 0.9" tall x 0.7" wide
- Lever is 21mm / 0.8" high
- Mounting holes are 25mm apart
- Weight: 11g
This is the only diagram we have:
