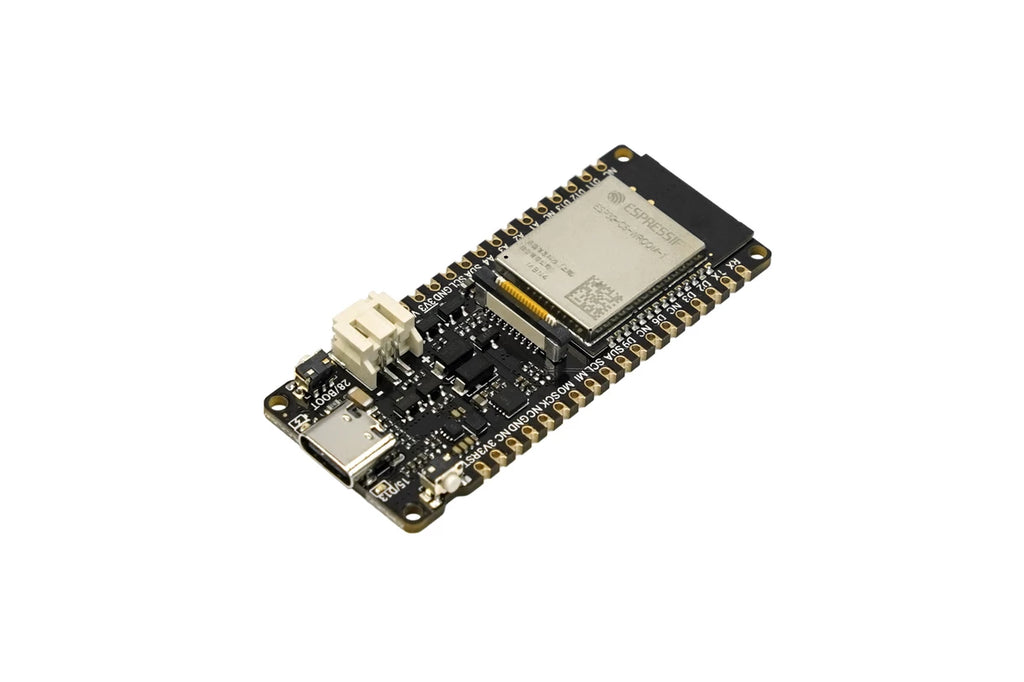

The FireBeetle 2 ESP32-C5 is a high-performance, low-power IoT development board designed for advanced smart home and extensive IoT applications. Its core strength lies in the groundbreaking Espressif ESP32-C5 chip, offering dual-band (2.4 & 5 GHz) Wi-Fi 6 for unparalleled wireless performance, a comprehensive multi-protocol hub supporting BLE, Zigbee, and Thread, and an advanced power management system with integrated solar charging.Powered by a 240 MHz RISC-V processor with 384 KB SRAM and 4 MB Flash, it achieves an ultra-low deep-sleep current of just 23 μA. This makes it an ideal solution for demanding applications. Whether for building a low-latency robotics controller, a solar-powered outdoor sensor, or a powerful, custom multi-protocol device for a Home Assistant ecosystem, the ESP32-C5 provides the necessary performance and flexibility.
Superior Wireless Performance with Dual-Band Wi-Fi 6
The ESP32-C5 is Espressif's first chipset to integrate dual-band Wi-Fi 6, representing a monumental leap in wireless capabilities for IoT devices. By providing access to the 5 GHz band, the FireBeetle 2 ESP32-C5 bypasses the heavily congested 2.4 GHz spectrum, resulting in significantly higher transmission rates, lower latency, and dramatically reduced interference. This is critical for:
Furthermore, Wi-Fi 6 technology enhances network efficiency through features like OFDMA (Orthogonal Frequency Division Multiple Access) for better multi-device performance and TWT (Target Wake Time) to reduce device power consumption, intelligently extending battery life.
Flexible Power, Endless Deployment
The FireBeetle 2 ESP32-C5 is engineered with a robust and versatile power management system, providing the flexibility to deploy projects anywhere, regardless of power constraints.
Unified Wireless Hub for Future-Proof IoT
Extending beyond a single protocol, the FireBeetle 2 ESP32-C5 is a true multi-protocol hub, supporting Wi-Fi, Bluetooth 5 (BLE), Thread 1.3, and Zigbee 3.0. This versatility enables the creation of sophisticated, cross-platform IoT ecosystems.
Rapid Prototyping with the FireBeetle Ecosystem
Designed with the developer in mind, the FireBeetle 2 ESP32-C5 incorporates features that simplify development and accelerate prototyping.
Note:
Applications:
Specification:
Basic Parameters
Hardware Information
Wi-Fi
Bluetooth
IEEE 802.15.4

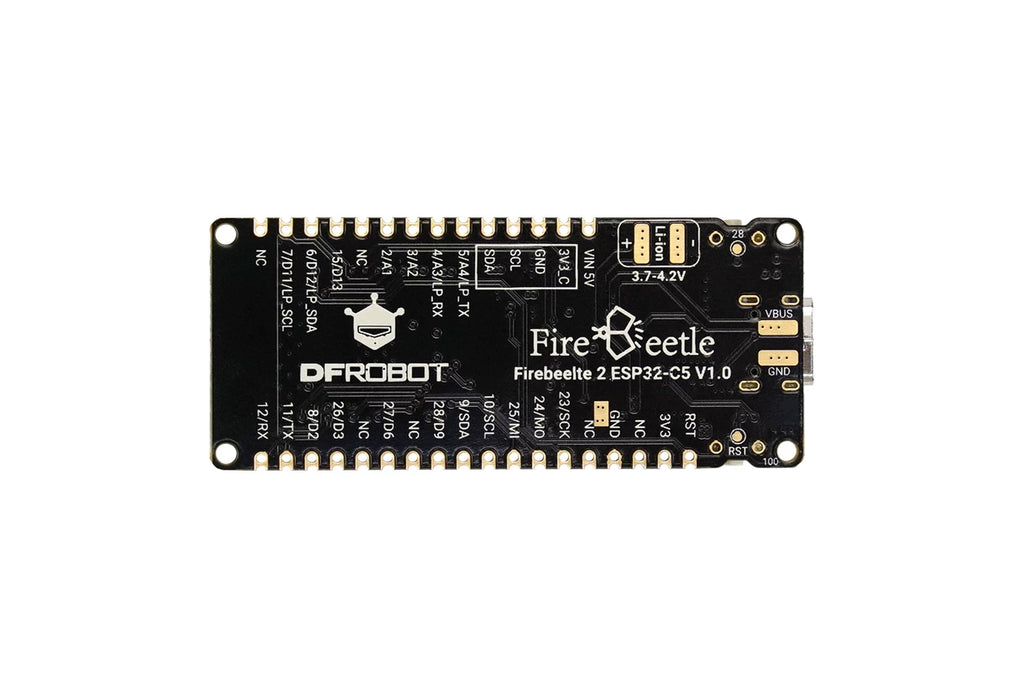

Interface Pins
Documents:
Product Includes:
