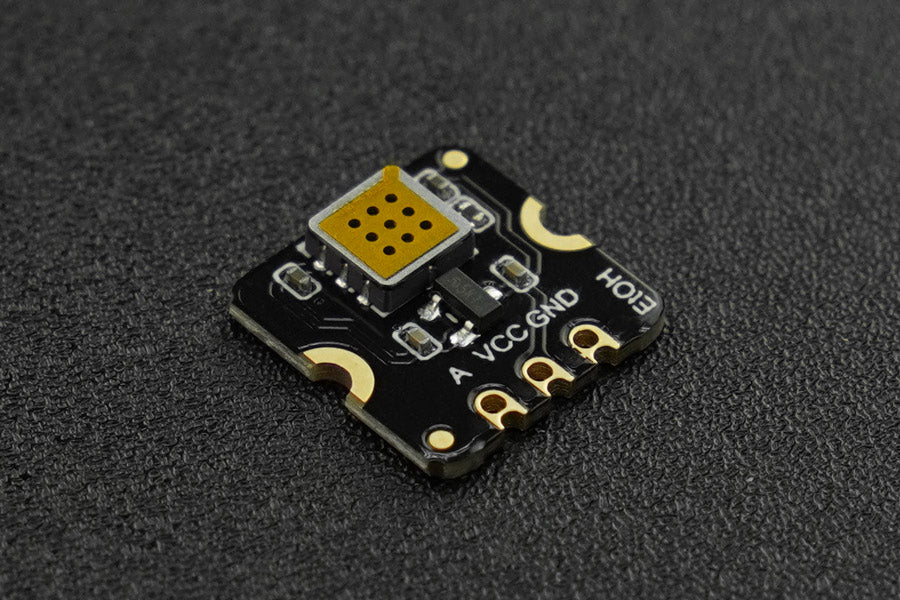

Fermion: MEMS Ethanol EtOH Gas Detection Sensor (Breakout, 1-500ppm)
Fermion: MEMS Ethanol EtOH Gas Detection Sensor (Breakout, 1-500ppm)

Fermion: MEMS Ethanol EtOH Gas Detection Sensor (Breakout, 1-500ppm)

Price:
A$12.23   Inc. GST
SKU:
DF-SEN0569
291 units Ships in 7 to 10 days

Fermion: MEMS Ethanol EtOH Gas Detection Sensor incorporates advanced micro-electromechanical system (MEMS) technology, featuring a 13x13x2.5mm size, 20mA power consumption, low heat generation, and a short preheating time & fast recovery rate. It is capable of quantitatively detecting ethanol concentrations and is suitable for applications such as ethanol gas leakage detection and portable ethanol detectors.

The MEMS series currently encompasses 11 different types of gas sensors (HCHO, CO, CH4, VOC, NH3, H2S, EtOH, Smoke, Odor, H2, NO2), which can be combined as per specific requirements.

Please note: This sensor is capable of only qualitative measurements. For quantitative measurements, kindly consider purchasing theGravity: Factory Calibrated Electrochemical Gas Sensor Series.

Wiring Diagram of Fermion: MEMS EtOH Sensor and Arduino UNO

Figure: Wiring Diagram of Fermion: MEMS EtOH Sensor and Arduino UNO


Precautions for use

  • Kindly remove the protective film before usage.
  • To prevent exposure to volatile silicon compounds vapors (such as silicone adhesive, hair gel, silicone rubber, or other locations where volatile silicon compounds are present).
  • Avoid exposure to high concentrations of corrosive gases (such as H2S, SOX, Cl2, HCl, etc.).
  • Prevent contamination from alkalis, alkali metal salts, and halogens.
  • Refrain from prolonged exposure to extreme environments (such as high temperatures, high humidity, high pollution).
  • Avoid contact with water, condensation, and freezing.
  • Minimize excessive vibration, impact, and dropping.
  • Please refrain from employing this module in systems that involve personal safety concerns.
  • For extended periods of non-usage, it is advisable to preheat the module for at least 24 hours.

    • Features:

  • Compact size, measuring only 13*13*2.5mm
  • Low power consumption, operating current 20mA
  • High sensitivity and rapid response recovery
  • Advanced MEMS technology

    • Applications:

  • Breathalyzer: measures the blood alcohol content (BAC) of a person by analyzing their breath.
  • Indoor air quality monitoring: monitors the level of volatile organic compounds (VOCs) in the indoor environment.
  • Food quality control: measure EtOH emission from food samples and determine their shelf life or quality.

    • Specification:

  • Gas detected: Ethanol (EtOH)
  • Detection range: 1-500ppm
  • Operating voltage: 3.3-5V
  • Operating current: 20mA
  • Output signal: Analog voltage
  • Sensitivity: R0(in air)/Rs(in 150ppm EtOH) ≥ 3
  • Operating temperature: -10-50
  • Operating humidity: 15-90%RH (non-condensing)
  • Lifespan: ≥5 years (in air)
  • Dimension13×13 x 2.5mm/0.0.51×0.51x0.1"

    • Documents:

  • Product wiki
  • Schematics & Dimension
  • Characteristic Parameter

    • Product Includes:

  • Fermion: MEMS Ethanol EtOH Gas Sensor (breakout) × 1
  • 2.54mm pitch header pin × 1
