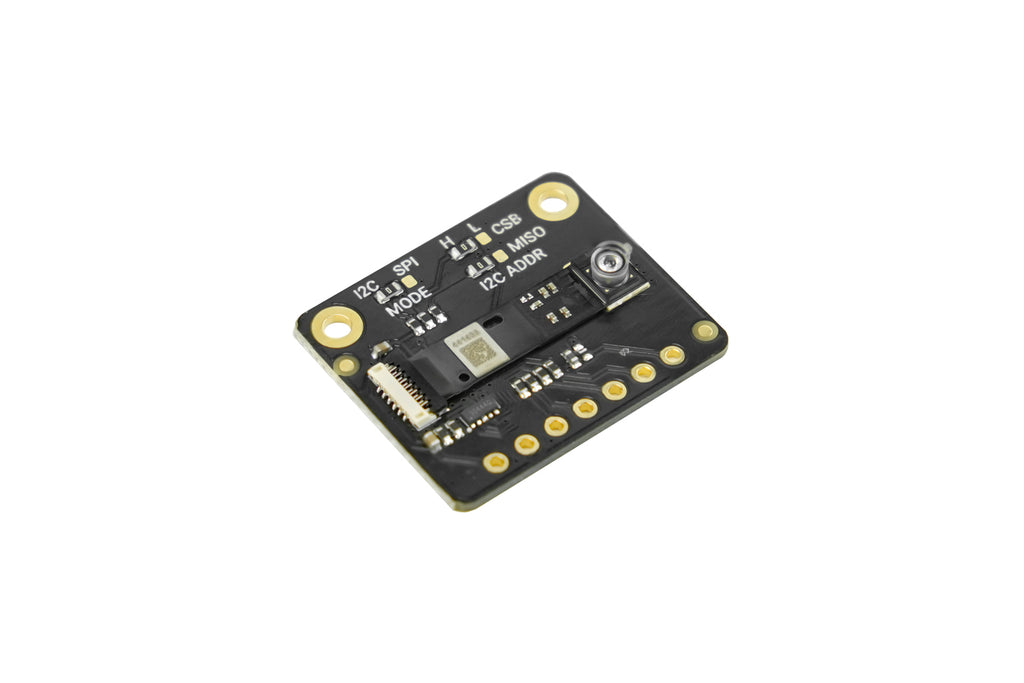

The Fermion: BMV080 PM2.5 Air Quality Sensor represents a significant evolution in environmental monitoring technology, engineered around the Bosch BMV080—the world's smallest particulate matter sensing unit. Unlike traditional bulky alternatives, this ultra-compact breakout board utilizes innovative laser-based light scattering and a fanless measurement principle to deliver laboratory-grade precision in a footprint of just 24×20mm. By eliminating the need for mechanical fans, the optical counting module overcomes common industry pain points such as noise, dust accumulation, and mechanical failure, offering a lifespan of up to 10 years. Capable of simultaneously measuring PM1, PM2.5, and PM10 mass concentrations with an accuracy of ±10μg/m³, the device operates with an ultra-low current consumption of 6μA in sleep mode. This combination of miniaturization, high precision, and energy efficiency makes the particulate matter detector the optimal solution for space-constrained applications, ranging from portable air monitors and smart home thermostats to battery-powered IoT nodes.

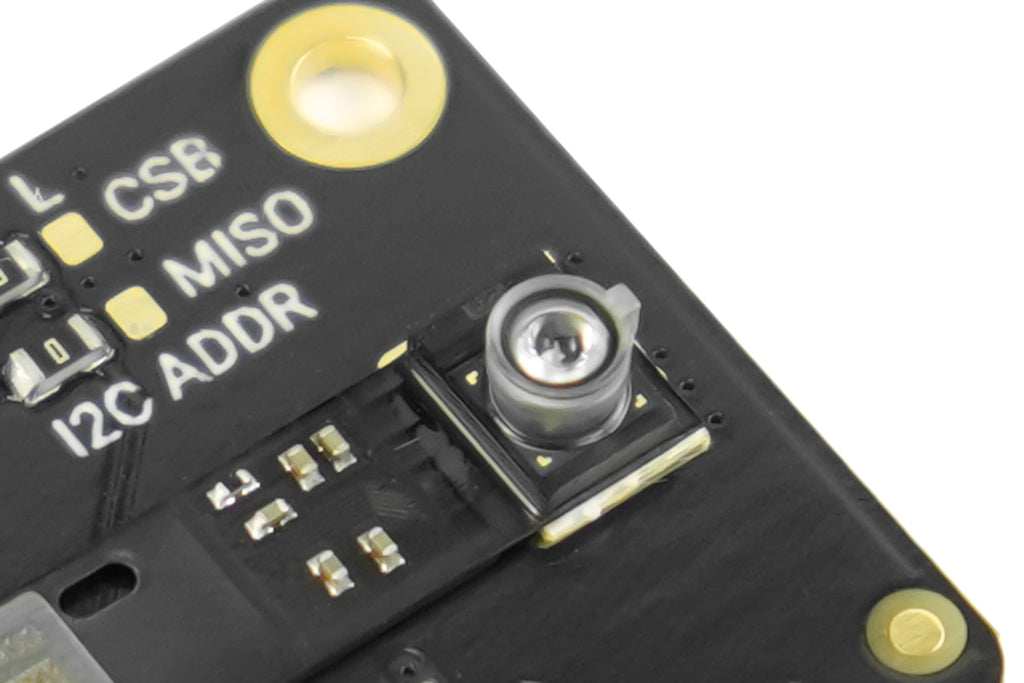

BMV080 sensor operating principle
Revolutionary Fanless Architecture
Conventional particulate matter detectors rely on built-in fans to draw in air samples, a design that inevitably leads to dust accumulation on optical components, audible noise, and a reduced lifespan of typically 1-2 years. The Fermion BMV080 employs a physics-based optical counting method that measures freely diffusing particles directly. This fanless approach ensures completely silent operation and significantly enhances reliability, extending the operational service life to over a decade while removing the maintenance burden associated with mechanical air ducts.
Unmatched Compactness for IoT Integration

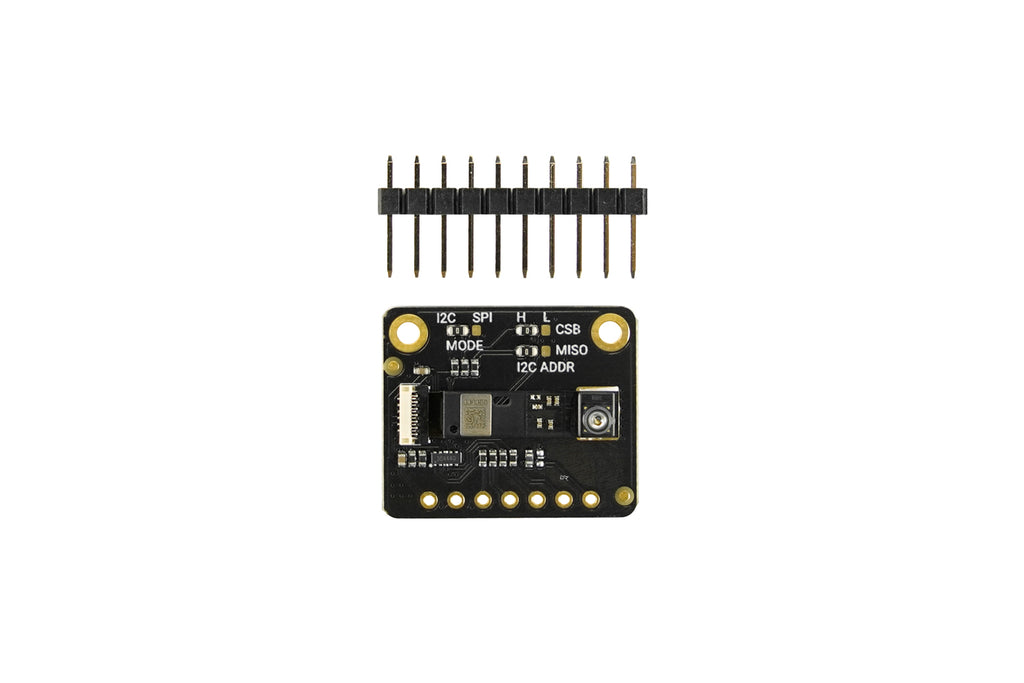

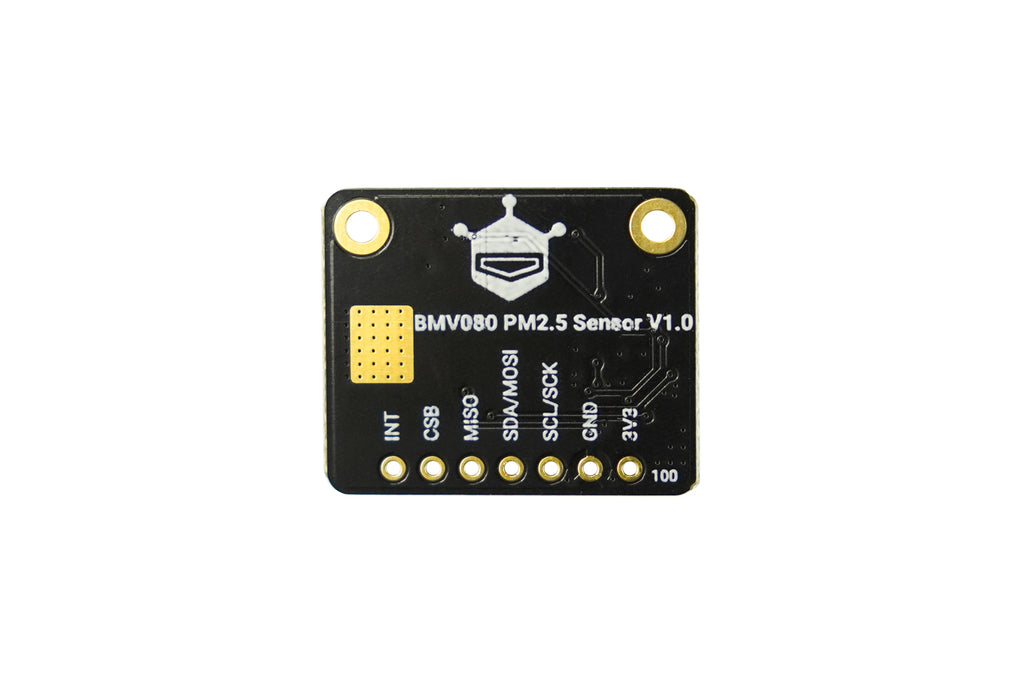

With a physical volume over 450 times smaller than standard comparable devices, this environmental sensing component redefines the possibilities for embedded design. The compact breakout board exposes all necessary pins, supporting both I2C and SPI communication protocols for flexible system architecture. Despite the diminutive size, full native functionality of the Bosch sensor is retained, ensuring that developers do not have to compromise on performance to achieve a small form factor.
Precision Multi-Parameter Monitoring
Data reliability is paramount in air quality analysis. The laser scattering technology embedded within this air quality monitoring module ensures stable and consistent measurement across a broad range of 0-1000μg/m³. It provides real-time data on PM1, PM2.5, and PM10 concentrations simultaneously. This multi-parameter capability allows for a comprehensive analysis of air quality conditions, from daily indoor environments to severe pollution scenarios, with a high resolution of 1 μg/m³.
Ultra-Low Power Consumption
Designed with portable and battery-operated systems in mind, the unit excels in energy efficiency. The advanced power management of the core chip allows for a sleep current as low as 6μA. This specification is critical for continuous monitoring applications where battery life is a primary constraint, such as wearable environmental trackers or remote, solar-powered sensing stations.
Applications:
Specification:
Basic Parameters
BMV080 Parameters

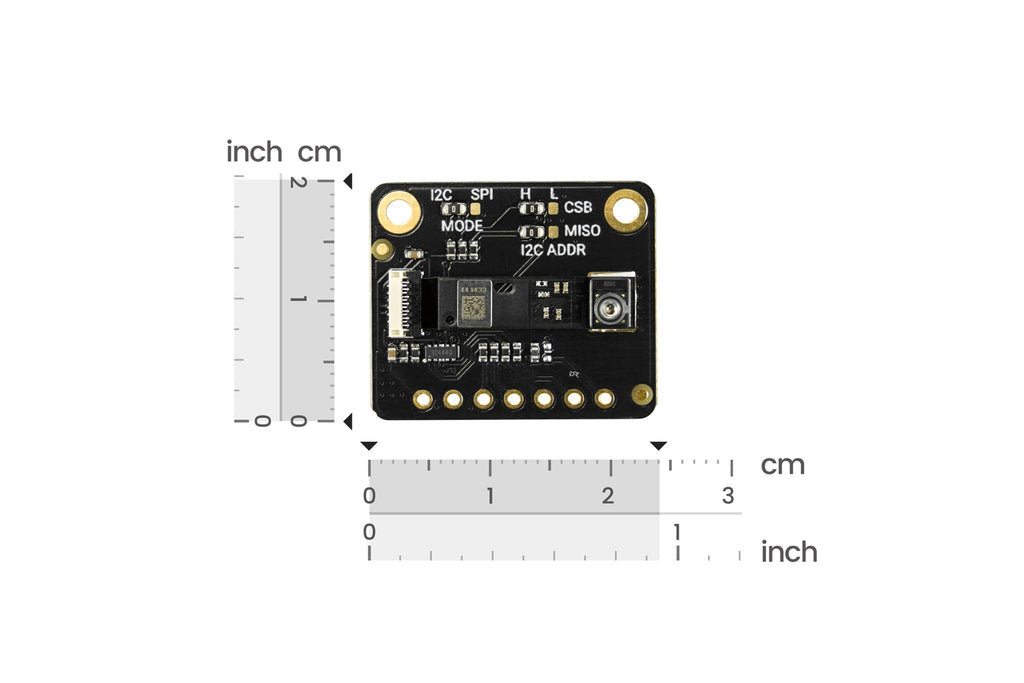

Physical Dimensions
Documents:
Product Includes:
