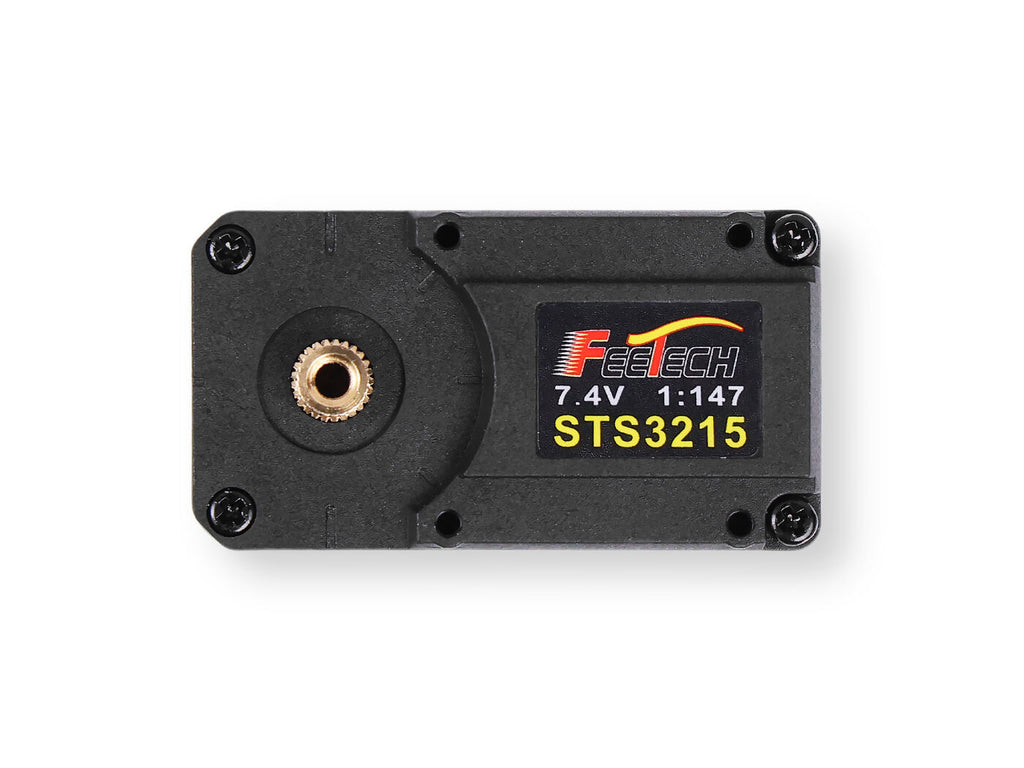

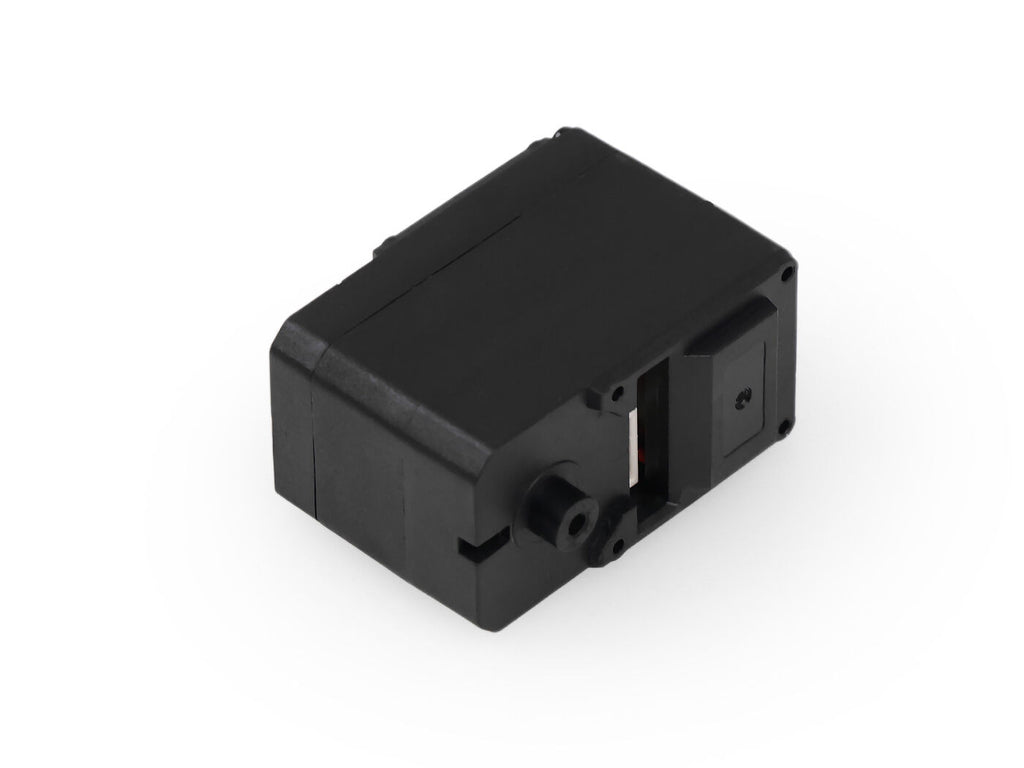

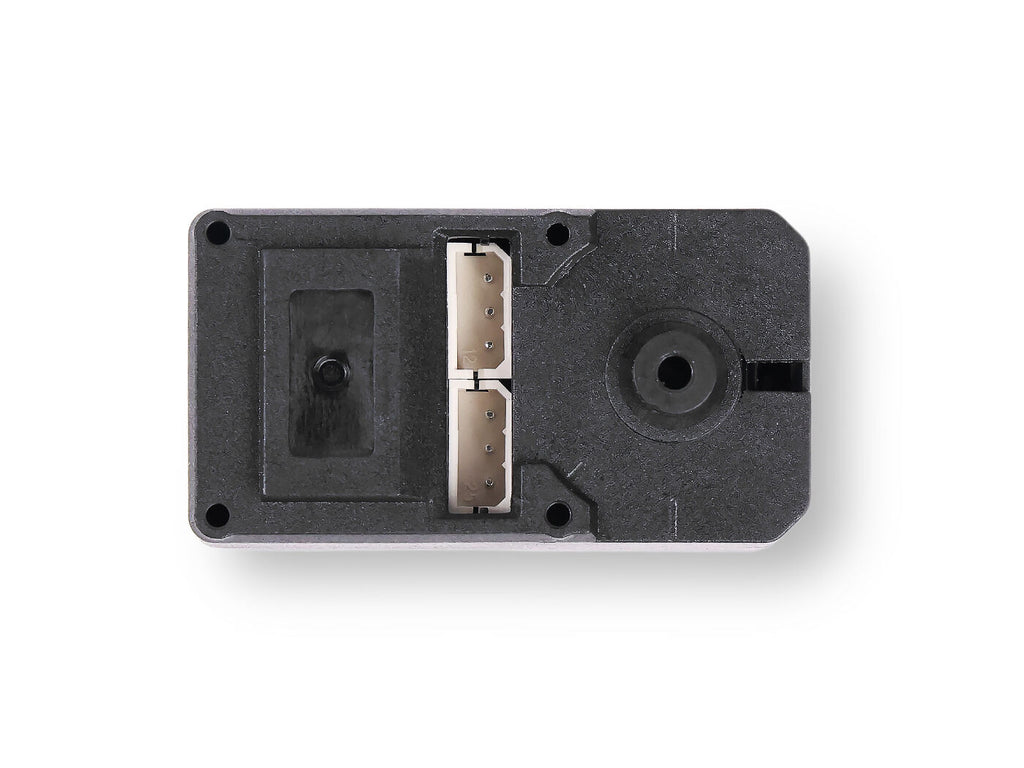

STS3215 C046 is a 7.4V serial bus smart servo, with plastic case, core motor, 1:147 metal gearbox and 12 bit high precision magnetic coding sensor. The stall toruqe is 14.4 kg. cm and the rated torque is 4.8kg.cm. Designed for versatility, it is suited for use in industrial automation, robotics, and low-torque drive applications, such as LeRobot SO-Arm 101.
- High Precison Provides 360-degree positioning with precise angle control and multi-turn continuous rotation capability
- Metal Gearbox Includes 1:345 gear reduction ratio metal gearbox
- Easy Calibration Offers one-touch midpoint calibration
- Rich output Provides real-time feedback of position, speed, voltage, current, temperature, and load
- 12V Servo Could be used with 12V power supply
Product | Feetech ST3215 C047 |
Voltage | 4- 14V |
Operating Temperature | -10℃~60℃ |
Mechanical Dimension | 45.2mm x 24.7mm x 35mm |
Communication Interface | Serial |

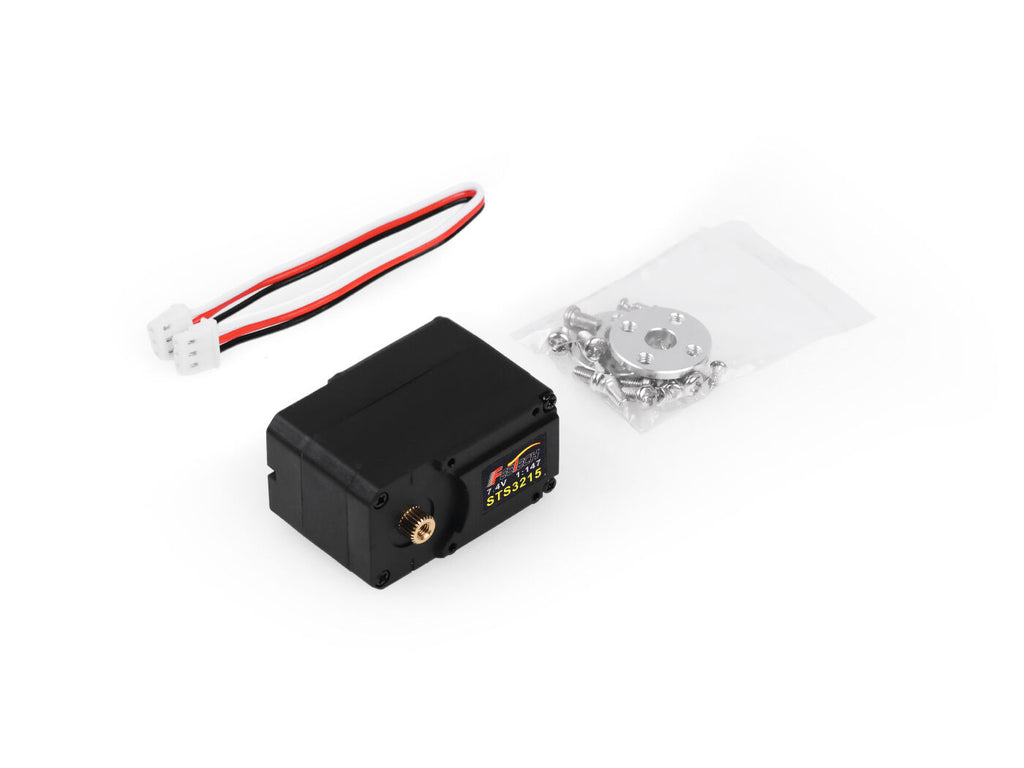

ST3215-C047 Servo | x1 |
Servo Horn | x2 |
Screw | x18 |
JST Wire | x1 |
| HSCODE | 8501109990 |
| USHSCODE | 8501106080 |
| UPC | |
| EUHSCODE | 8501109390 |
| COO | CHINA |
