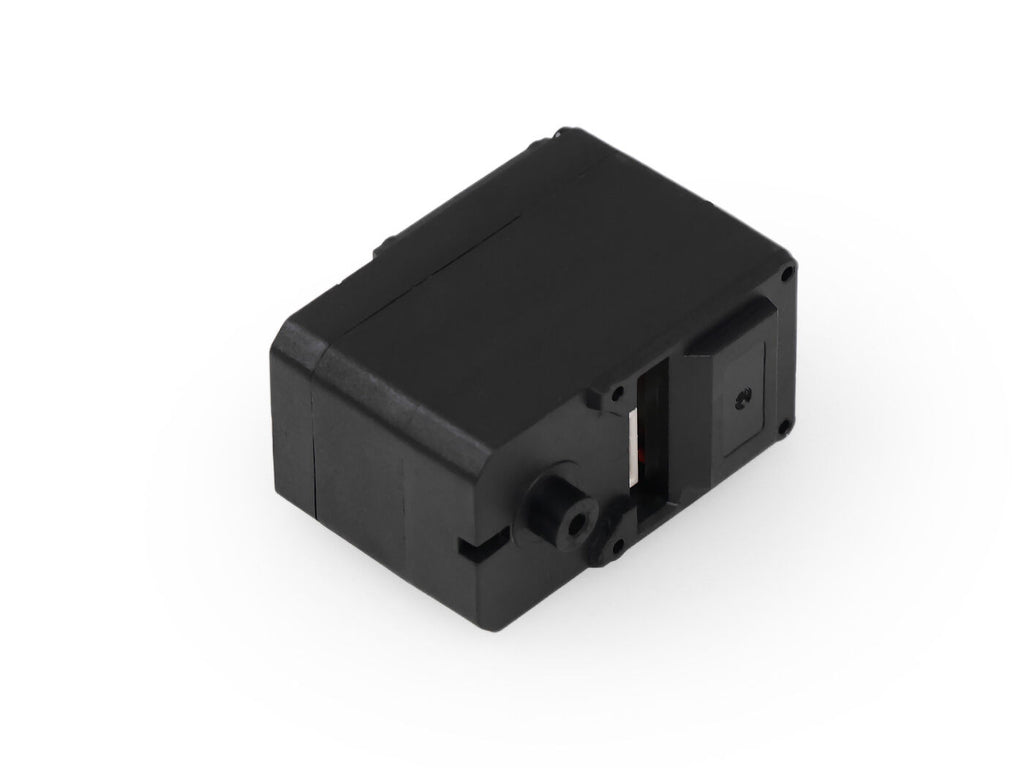

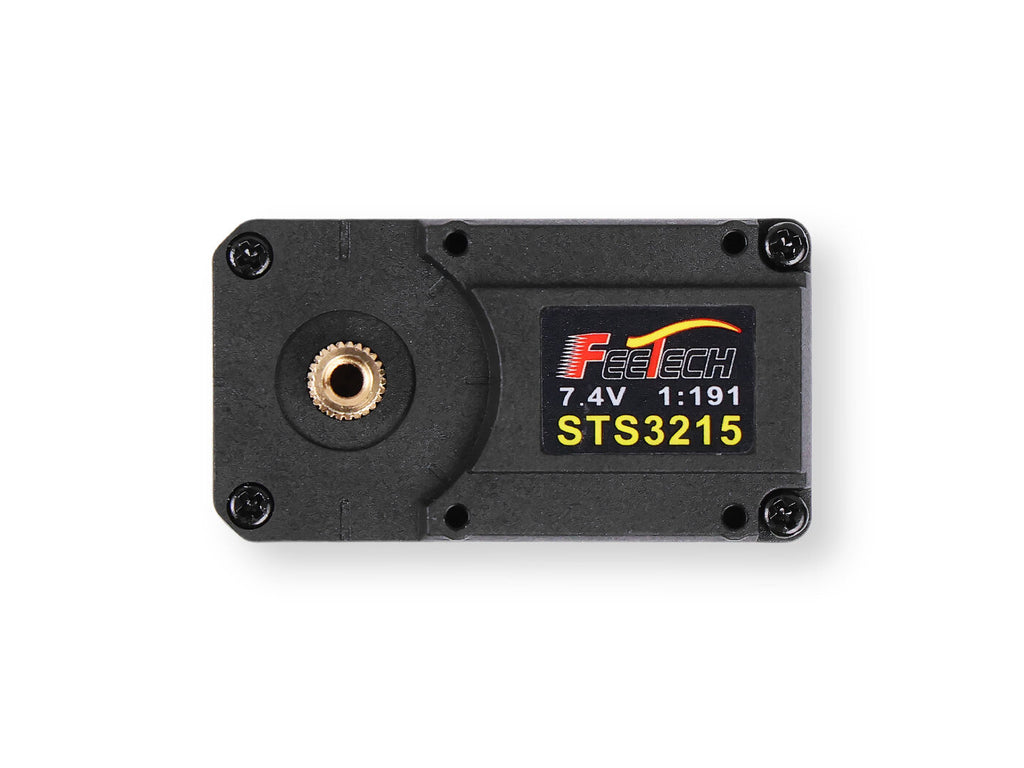

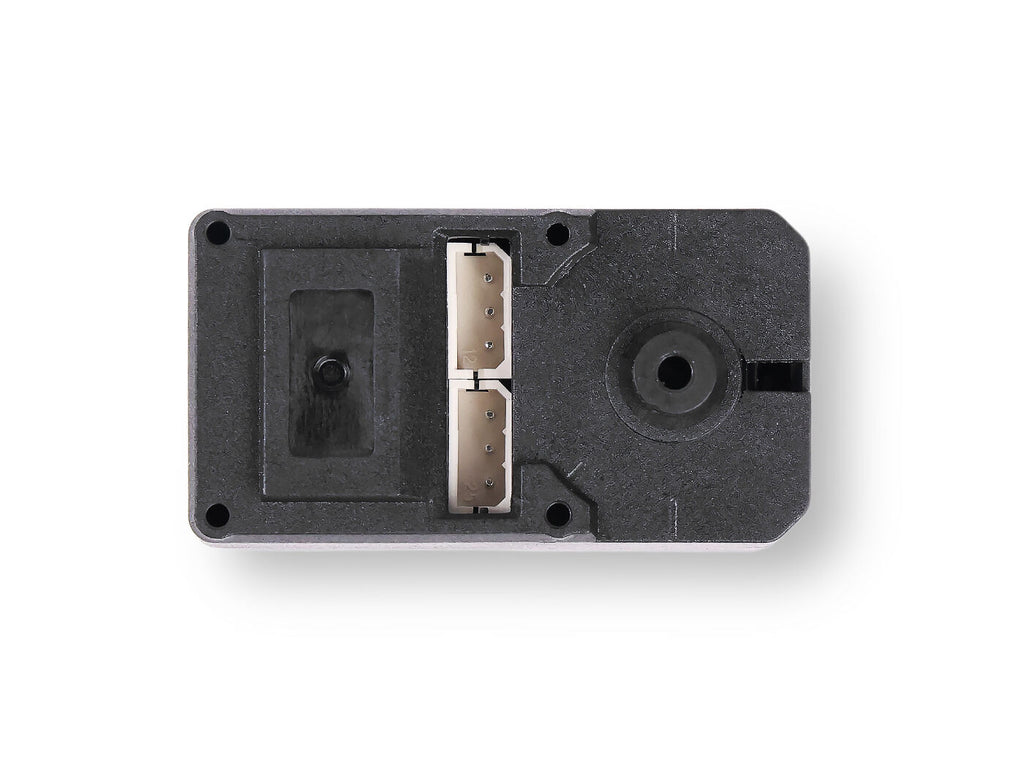

STS3215 C044 is a 7.4V serial bus smart servo, with plastic case, core motor, 1:191 metal gearbox and 12 bit high precision magnetic coding sensor. The stall toruqe is 27.4 kg. cm and the rated torque is 9kg.cm. Designed for versatility, it is suited for use in industrial automation, robotics, and low-torque drive applications, such as LeRobot SO-Arm 101.
- High Precison Provides 360-degree positioning with precise angle control and multi-turn continuous rotation capability
- Metal Gearbox Includes 1:147 gear reduction ratio metal gearbox
- Easy Calibration Offers one-touch midpoint calibration
- Rich output Provides real-time feedback of position, speed, voltage, current, temperature, and load
- Overload protection Provides overload and overcurrent protection
Product | Feetech ST3215 C046 |
Voltage | 4- 7.4V |
Operating Temperature | -20℃~60℃ |

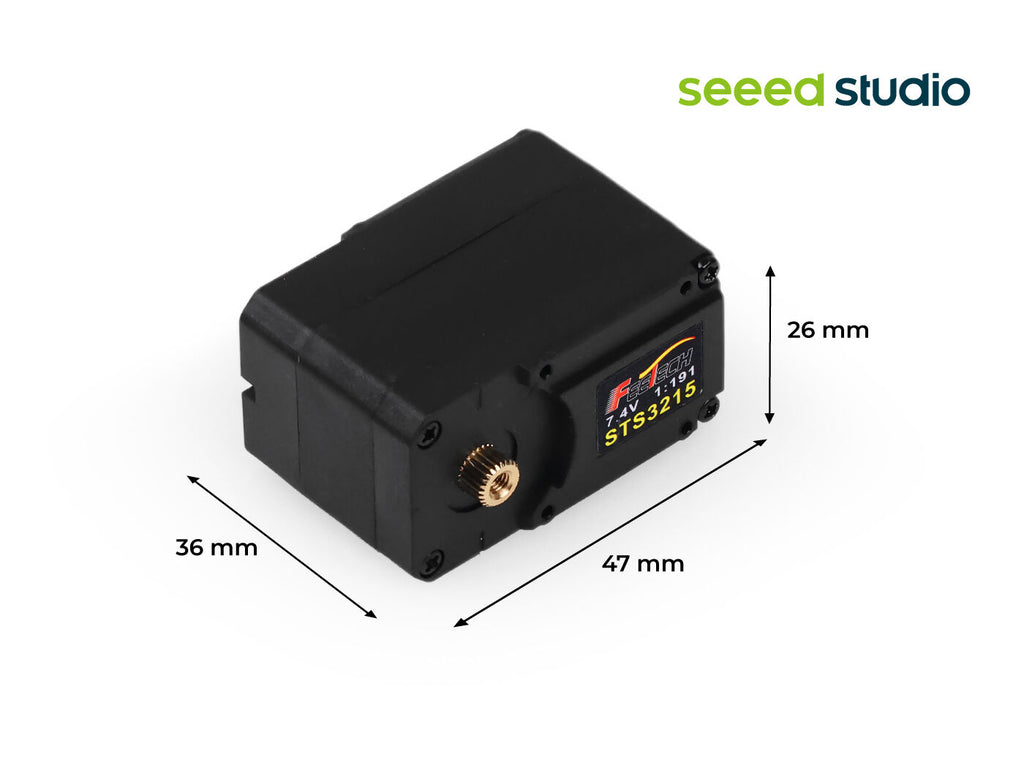

Mechanical Dimension | 45.2mm x 24.7mm x 35mm |
Communication Interface | Serial |

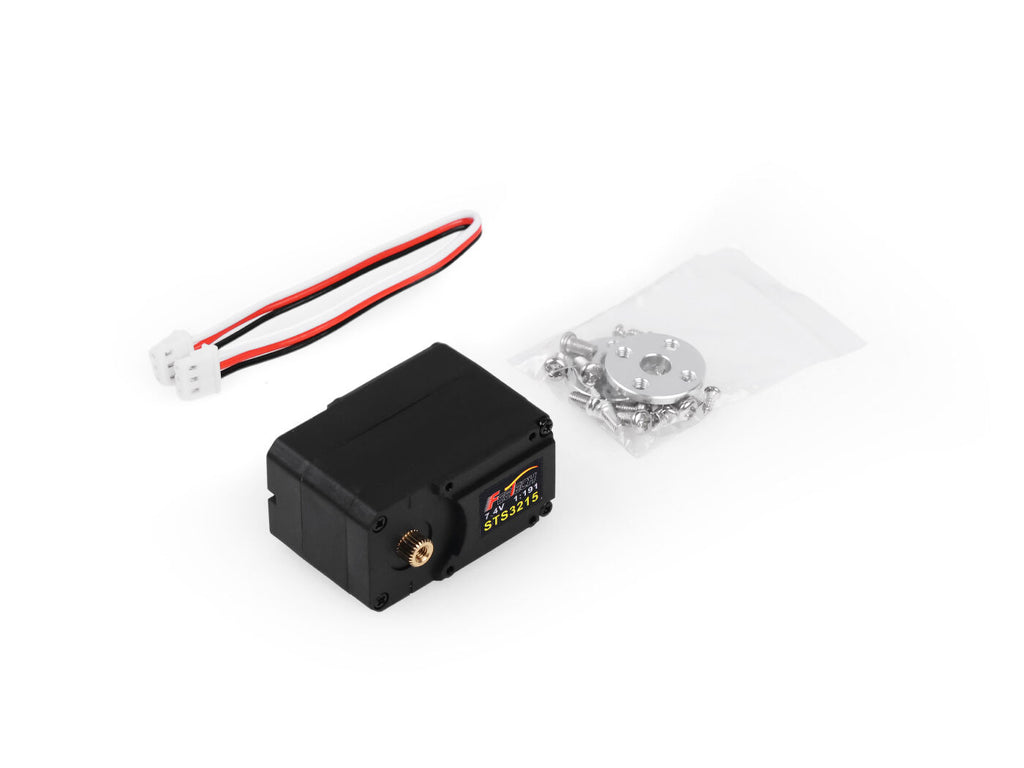

ST3215-C046 Servo | x1 |
Servo Horn | x2 |
Screw | x18 |
JST Wire | x1 |
| HSCODE | 8501109990 |
| USHSCODE | 8501106080 |
| UPC | |
| EUHSCODE | 8501109390 |
| COO | CHINA |
