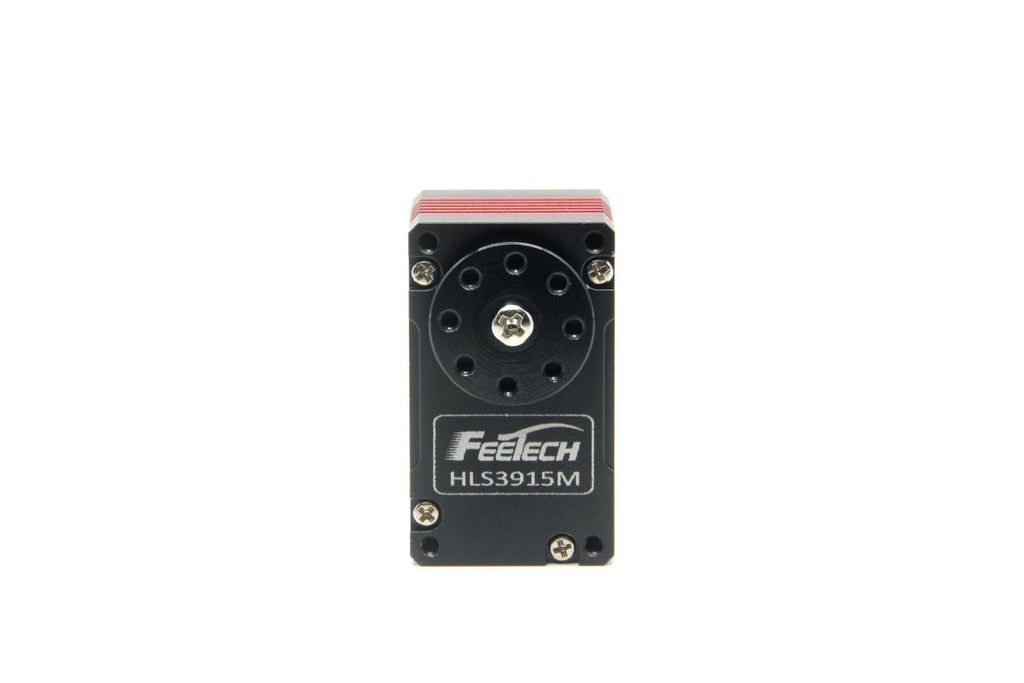

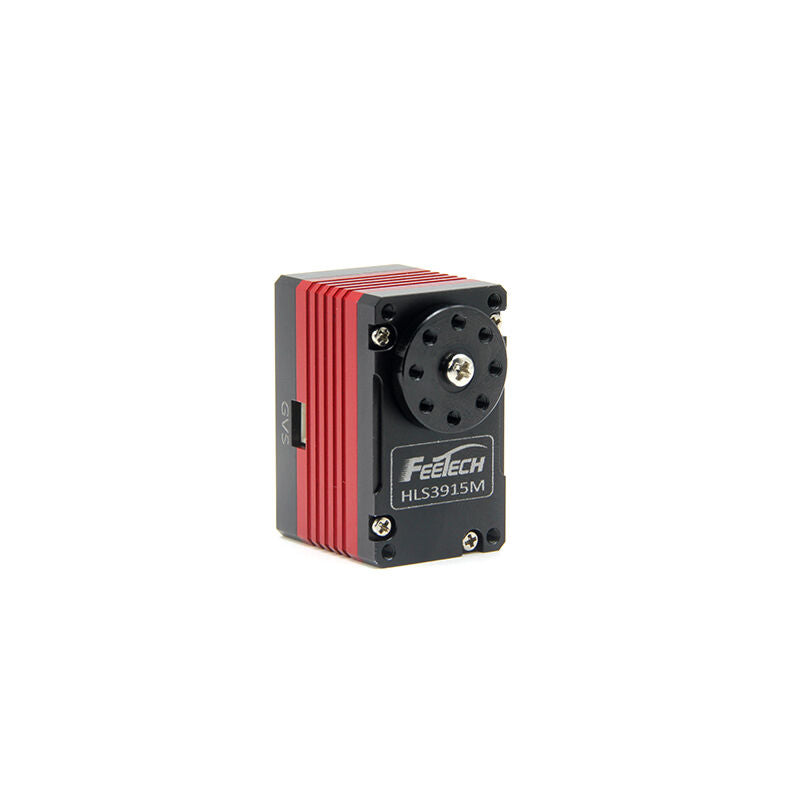

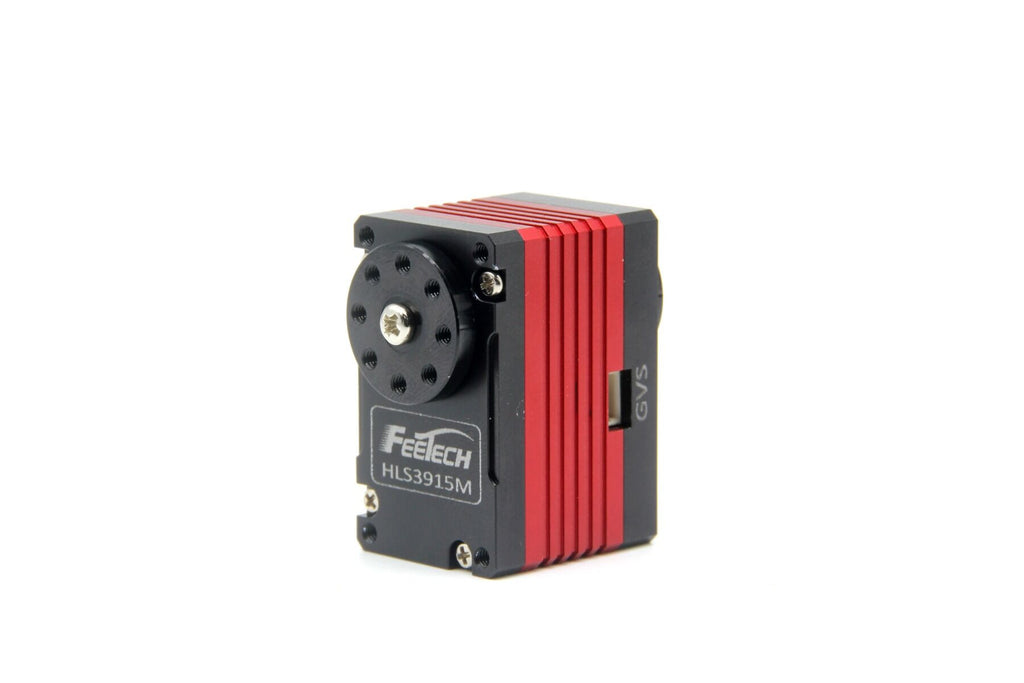

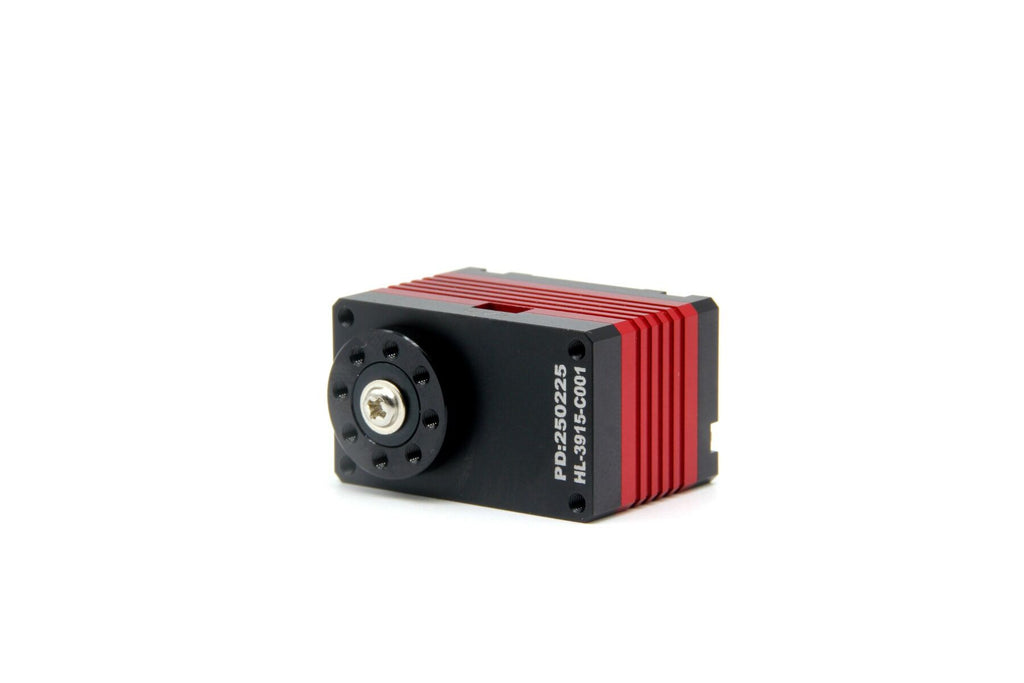

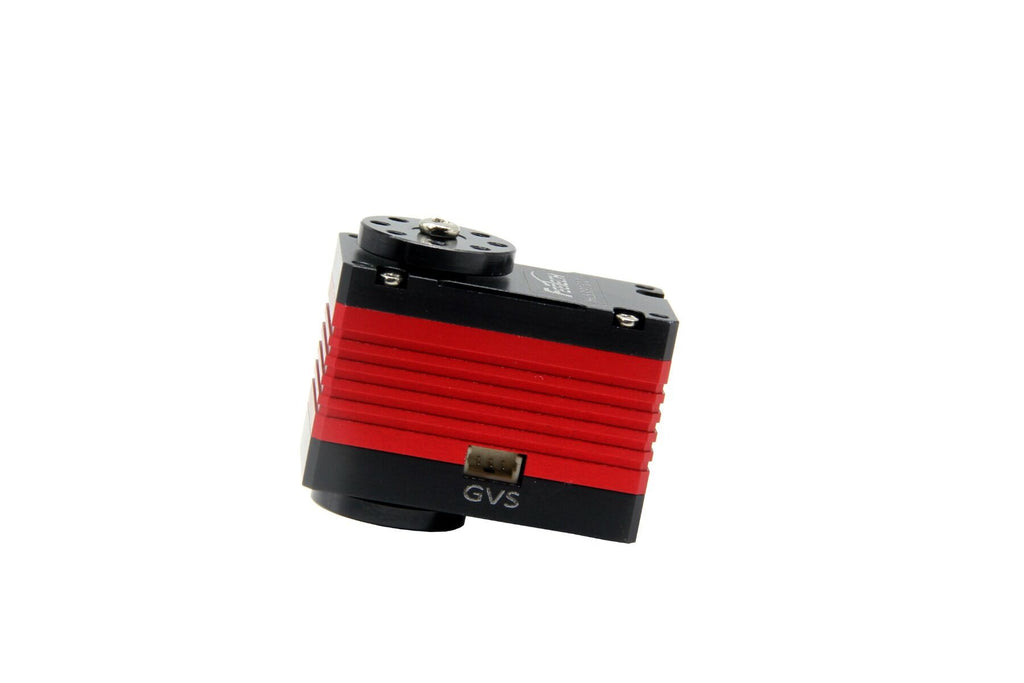

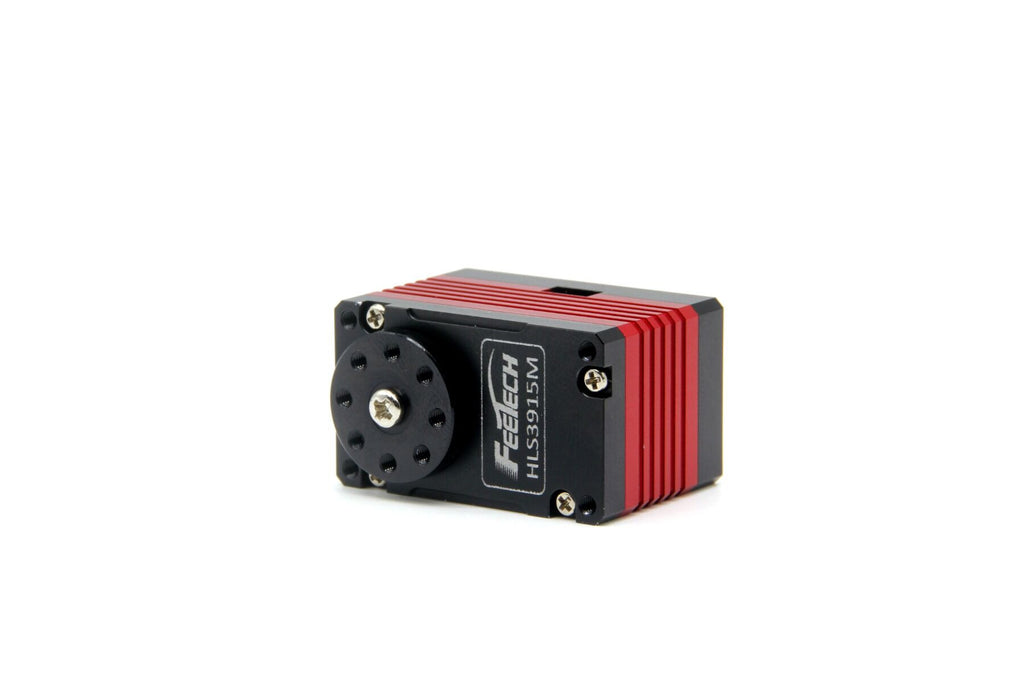

It's a high-torque servo motor, delivering 14.2 kg.cm of torque at 12V and featuring a precise 1/320 gear ratio. It is perfectly suited for small robotics, robot arms, and low-torque drive applications where powerful and accurate control is paramount. With a rated speed of 100 RPM, this servo ensures efficient performance in dynamic applications.
- High Torque and Low-Speed Performance: Delivers high stall torque (14.2kg.cm @ 12V) and low no-load speed (100RPM), suitable for high-torque applications.
- High-precision Control: Equipped with a 12-bit magnetic encoder for 360° absolute position control with 0.088° resolution, supporting multiple operating modes and multi-turn functionality.
- Feedback: Provides comprehensive feedback on load, position, speed, input voltage, current, and temperature.
- Electronic Protection: Features customizable overload protection, overvoltage protection (4V to 14V range), and overheat protection (shuts down at >80℃).
- Robust Electronic Protection Functions: Ensures reliable operation with customizable overload settings, overvoltage protection, and overheat shutdown.
Product | Feetech HL-3915-C001 12V 14.2Kg Servo |
Dimensions | 20×34×23 mm |
Weight | 35.8±2 g |
Voltage Range | 4V-14V |
Operating Voltage | 12V |
No-Load Speed | 0.1 sec/60° (100RPM) |
Stall Torque | 14.2kg.cm |
Rated Load | 4.5kg.cm |
Operating Temperature | -10℃～60℃ |
Datasheet | https://files.seeedstudio.com/products/Feetech/HL-3915-C001%2012V%201%20320%20.xlsx |

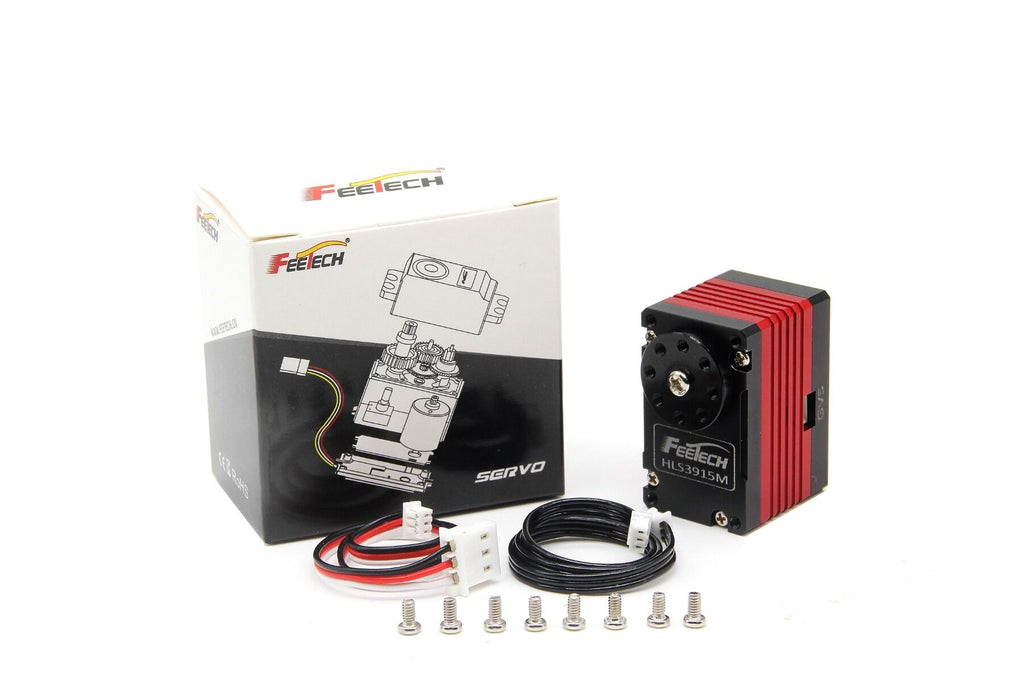

HL-3915-C001 | x1 |
M2*4 | x8 |
15cm -1.25mm to 5264 terminal wire | x1 |
20cm -1.25mm terminal wire | x1 |
| HSCODE | 8501109990 |
| USHSCODE | 8501106080 |
| UPC | |
| EUHSCODE | 8501109390 |
| COO | CHINA |
