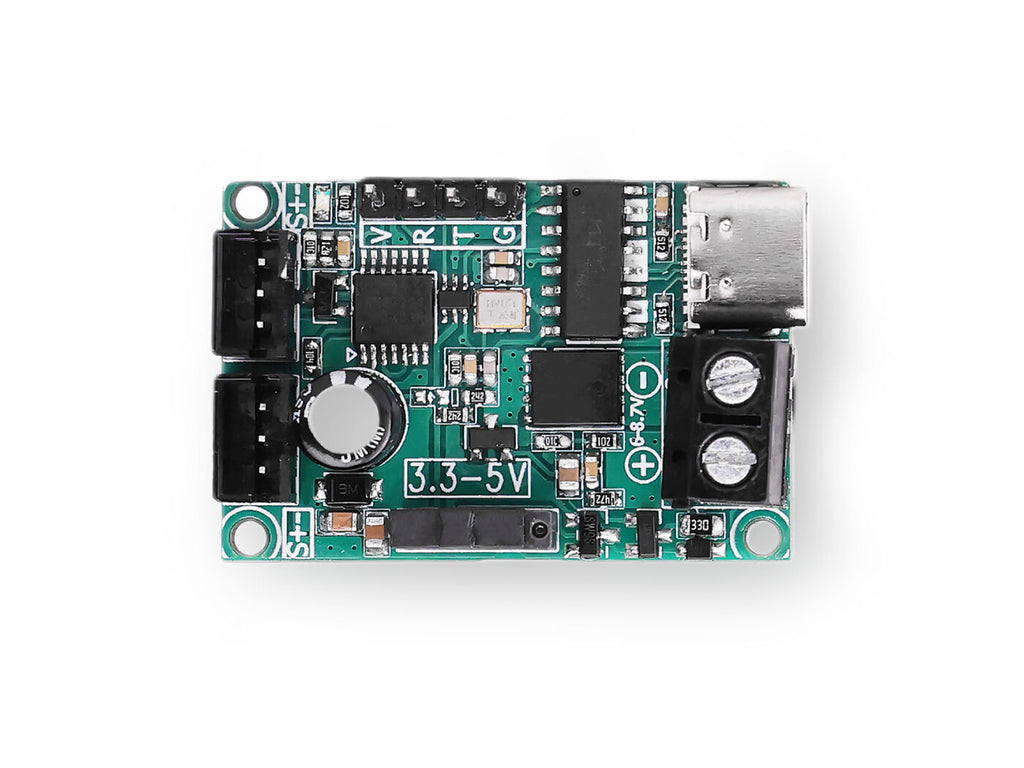

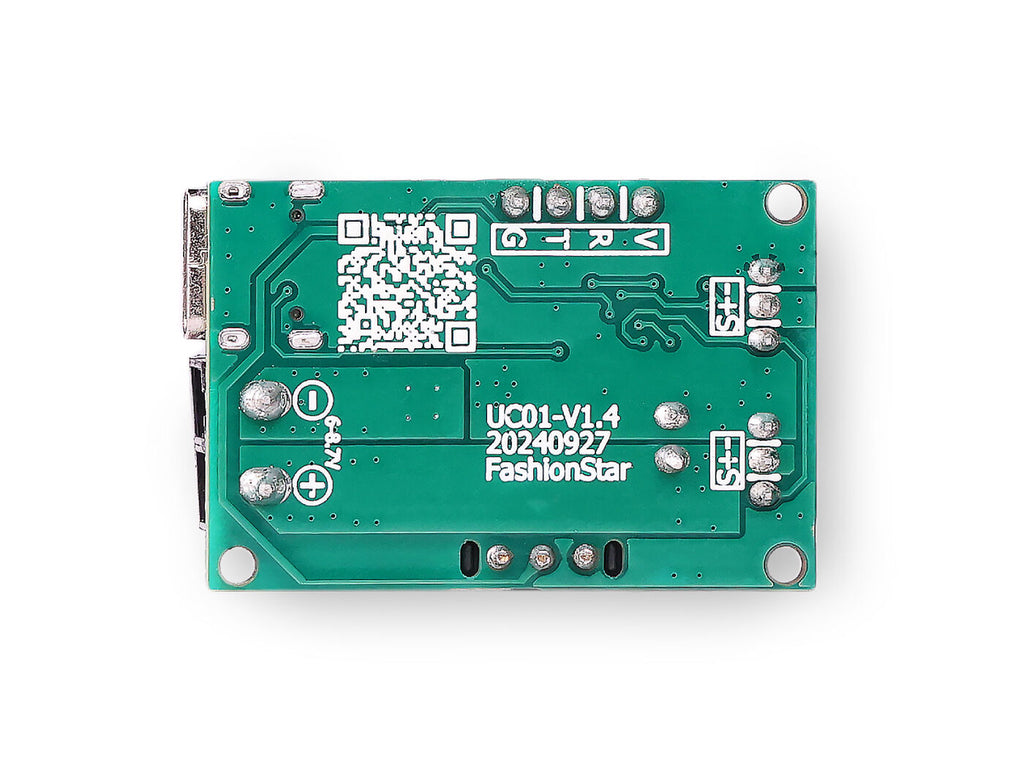

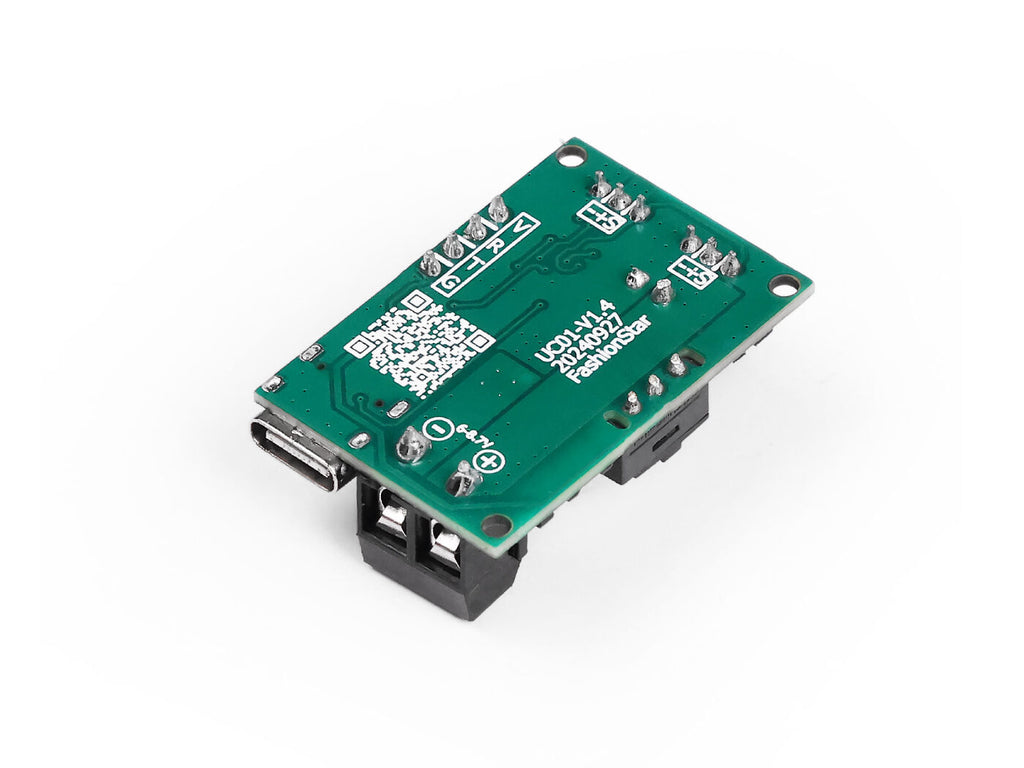

It's a versatile communication hub, designed for seamless integration of CAN and TTL devices. The UC01 supports multiple protocols, enabling efficient control and data exchange in robotic systems. Its compact design and high reliability make it ideal for applications requiring precise and synchronized operations.
- Supports half-duplex to full-duplex TTL signal conversion
- Selectable TTL levels: 3.3V / 5.0V
- Enables ID configuration and parameter adjustment for bus servo
- Facilitates communication between TTL devices and PCs or other host platforms
- Provides reverse polarity protection to enhance circuit safety
Item | Specifications |
Input Voltage | 9.0-15V |
Signal conversion | Half-duplex to full-duplex conversion |
TTL level | 3.3V / 5.0V |
Peak Current | 20A |
UART output | 1 |
Data interface | Type-C |
Operating Temperature | -10℃ to 60℃ |
Protection features | Reverse polarity protection |
Mounting holes | M2.0 × 3 |
Power LED | Red |

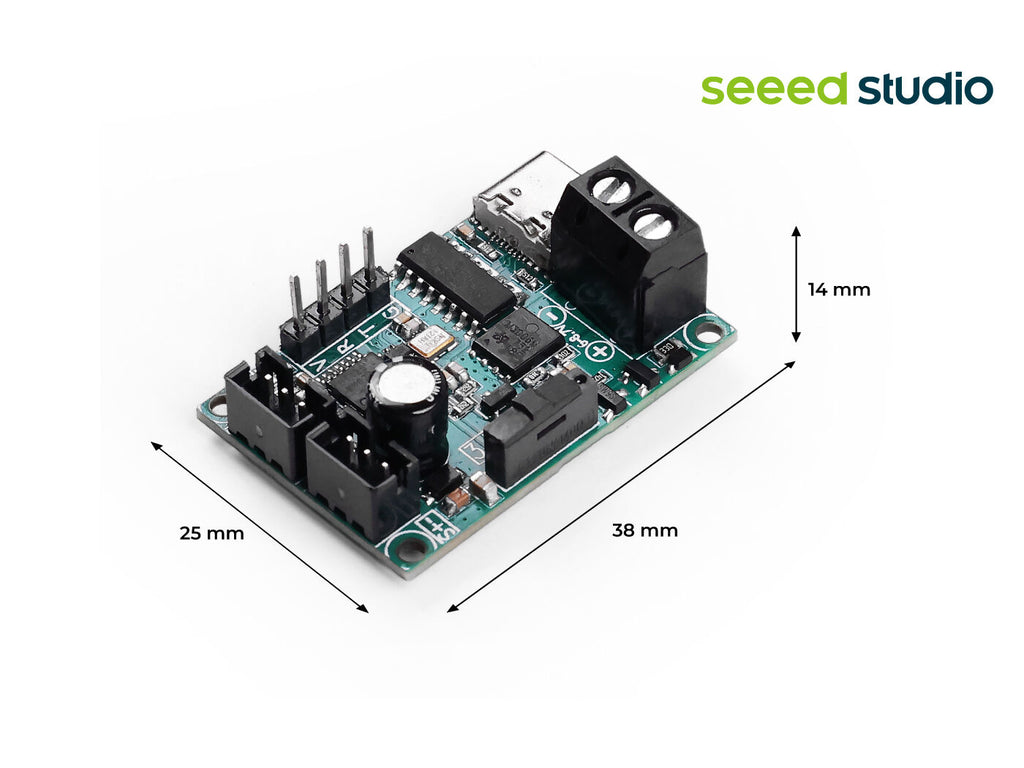

Dimensions (W×H) | 36×24mm |
Weight | 5g |
名字 | 链接 |
Datasheet | https://files.seeedstudio.com/products/Fashionstar/UC01_Datasheet_EN_V1.1.07.pdf |
TTL-USB Converter UC-01 | x1 |
| HSCODE | 8503001000 |
| USHSCODE | 8503003500 |
| UPC | |
| EUHSCODE | 8471707000 |
| COO | CHINA |
