Fashionstar HX8-U51H-M Servo is a 12V 50kg D-shaft serial bus servo with bracket that integrates brushless motor, reducer, magnetic absolute encoder and controller. With a 387:1 reduction ratio, the servo's stall torque comes at 50 kg. cm and the rated torque at 23kg. cm. Designed for versatility, it is suited for use in industrial automation, robotics, and low-torque drive applications. It comes with ample code examples that can help accelerate deployment and integration.
- Integrated Design Provides Integrated design of brushless motor, reducer, magnetic absolute encoder and controller
- 12-bit absolute encoder Includes 12-bit magnetic absolute encoder, supporting arbitrary angle setting as the zero-position and multi-turn angle control
- Angle memory Ensures position data is retained after power-off.
- Smooth motion curve Trapezoidal acceleration and deceleration control profile generates a smoothed motion curve
- Comprehensive protection features Provides comprehensive protection functions including thermal shutdown, voltage protection, stall detection, and current/power limitation
Product | Fashionstar HX8-U51H-M |
Voltage | 9V ~ 12.6V |
Operating Temperature | -10℃~60℃
|
Mechanical Dimension | 40mm x 40mm x 20mm |
Communication Interface | UART/TTL Half-Duplex |
Baud rate | 9,600bps~1Mbps |
Resolution | 0.088° |
Operating Mode | Single-turn Angle Control Mode Multi-turn Angle Control Mode Damping Mode |
Max Stall Torque | 4.9N·m (50kg-cm) |
Max Continuous Torque | 2.26N·m (23kg-cm) |
Rated Speed | 52rpm（0.192sec@60°） |
Robotic Arm
名字 | 链接 |
Datasheet | https://files.seeedstudio.com/products/Fashionstar/Fashion%20Star_U51H_Datasheet_EN_V1.1.08.pdf |
CAD | https://files.seeedstudio.com/products/Fashionstar/Fashionstar-25-50kg-dshaft.zip |

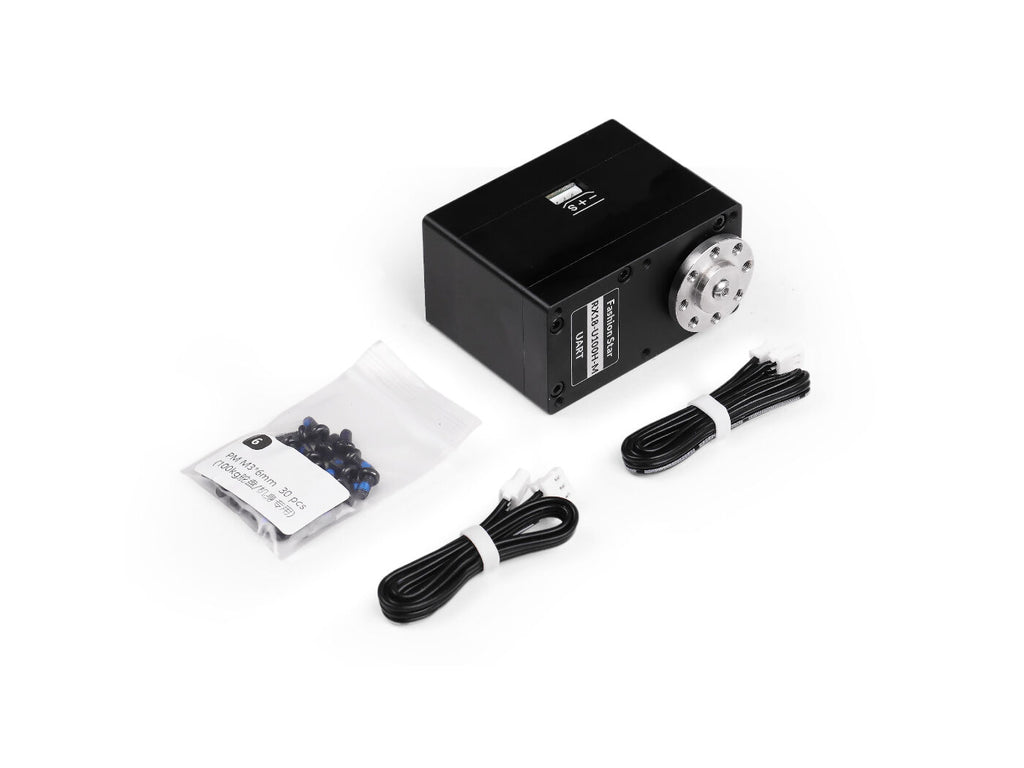

HX8-U51H-M Servo | x1 |
PM M3*14mm Screw | x4 |
M3 Lock Nut | x4 |
200mm 3-pin Cable (PH2.0×2) | x1 |
| HSCODE | 8501109990 |
| USHSCODE | 8501106080 |
| UPC | |
| EUHSCODE | 8501109390 |
| COO | CHINA |
