Feature
- ePaper display extension designed for Seeed Studio XIAO boards: Provide 20-pin FPC connector, to allow you driving ePaper display seamlessly
- Additional 8-pin 2.54 Header: Offers flexibility by letting you connect to any microcontroller like Arduino UNO or Rasbperry Pi
- Plug and Play: All pins are led out, no soldering is needed
Description
This ePaper Breakout Board features a 20-pin FPC connector, designed for compatibility with SeeedStudio XIAO boards, enabling easy connection to ePaper displays. Additionally, it comes with an 8-pin 2.54 header for connecting microcontrollers like the Arduino UNO or Raspberry Pi.
This breakout board is compatible with many ePaper sizes, from small to large, making it ideal for a variety of uses, all without the need for soldering. Compatible with many SeeedStudio XIAO boards, this extension board is a must-have for any ePaper project.
Application
- Digital Signage: Use the ePaper Breakout Board to create dynamic and energy-efficient digital signs.
- E-Readers: Build your own customized e-reader with features tailored to your needs.
- Smart Home Control Panels: Integrate the board into a smart home system for a sleek and modern control panel.
- Retail Price Tags: Create electronic price tags for a more efficient and eco-friendly retail experience.
- Educational Tools: Develop interactive educational materials that can be easily updated and are energy-efficient.

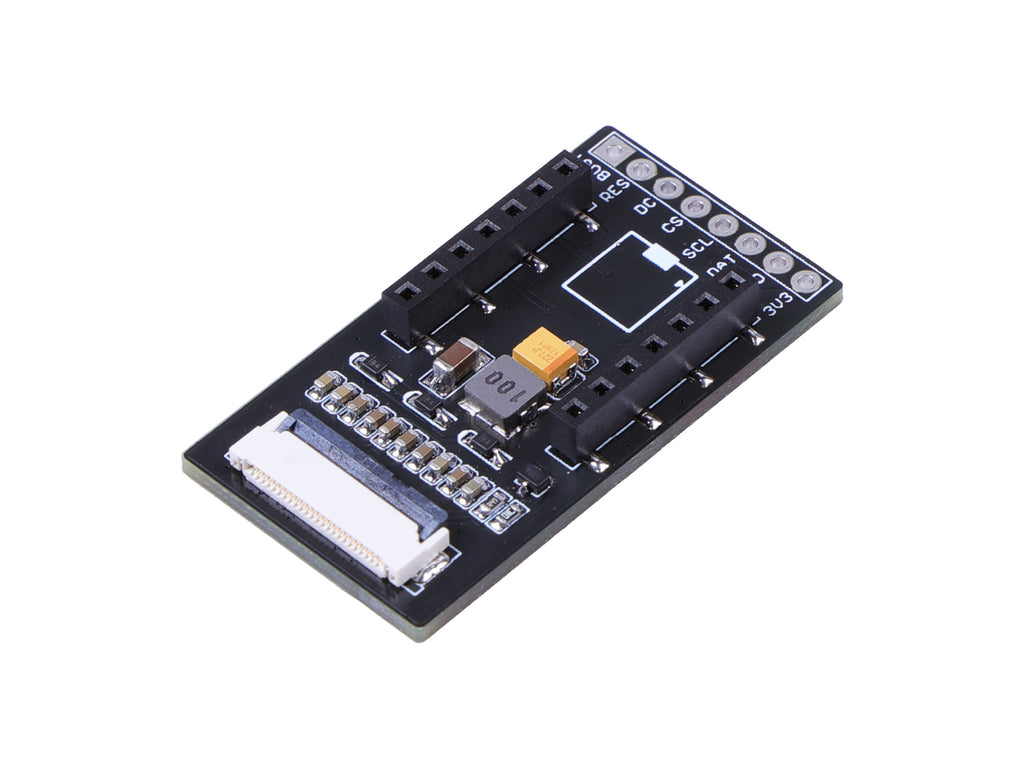

Hardware Overview
- 20-pin FPC Conncctor: For the 2.13 inch ePaper.
- XIAO Socket: For connecting the Seeed Studio XIAO development board.
- IO Break out: For connecting the others controller, such Arduino UNO or Raspberry Pi.
Pin definition
ePaper | XIAO |
RST | D0 |
CS | D1 |
DC | D3 |
BUSY | D5 |
SCK | D8 |
MOSI | D10 |
Part List
ePaper Breakout Board | x1 |
ECCN/HTS
| HSCODE | 8543909000 |
| USHSCODE | 8543708900 |
| UPC | |
| EUHSCODE | 8471707000 |
| COO | CHINA |
