EMB1082
Description

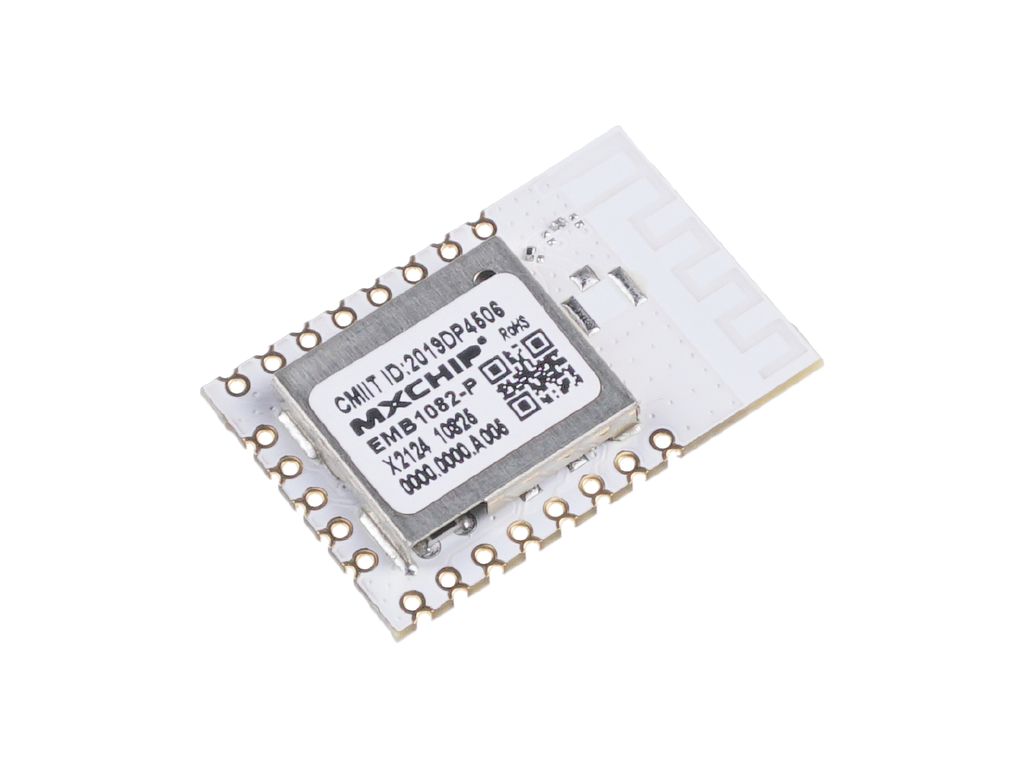

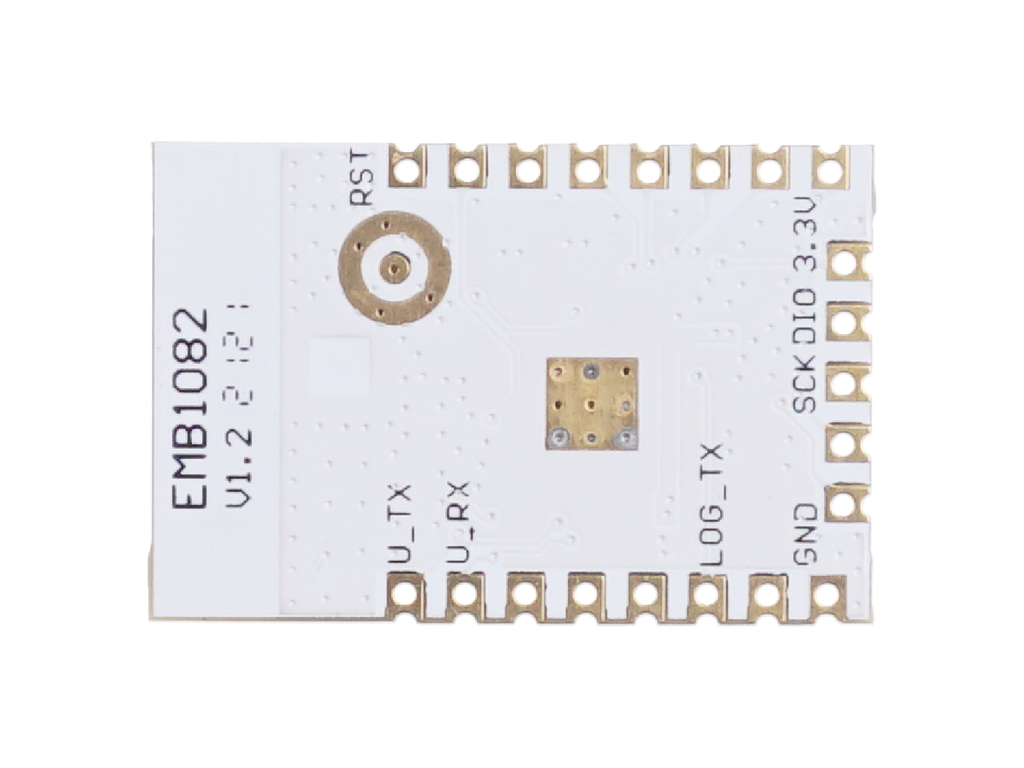

EMB1082 is an embedded BLE module by MXCHIP. It integrates a BLE5.0 single mode SoC, including ARM Cortex-M4F Core, BLE/2.4G Radio, 160KB RAM, 512KB Flash and rich peripherals. EMB1082 uses half-hole package which is easy for soldering, and also DIP package.
Features
- Powerful CPU:ARM Cortex-M4F Core 20MHz with160KB RAM and 512KB Flash in chip, and support external flash up to 8Mbyte.
- Advanced Bluetooth:Support Bluetooth 5.0 (BLE single mode). Support BLE Master/ Slave mode
- Wide Working Voltage: DC 3.0-3.6V
- Maximum transmission rate up to 72.2 Mbps with 20 MHz bandwidth.
- Wi-Fi Features
- Operating Temperature:-40℃ to +105℃
- Operating Voltage: 2.7V~3.3V
- Antenna: PCB antenna or IPEX connector (Optional)
- Length*Width*Height: 2.400*2.600*0.300(cm)
- Weight: 0.003kgs
Application Scenario
- Intelligent Lighting
- Health Care
- Intelligent Household Appliances
- Intelligent Electricians
- Portable Devices
ECCN/HTS
HSCODE | 8517709000 |
