EL Wire 12V Sound Activated Pocket Inverter

Price:
Sale price A$20.01   Inc. GST
SKU:
ADA832
39 units Ships in 7 to 10 days

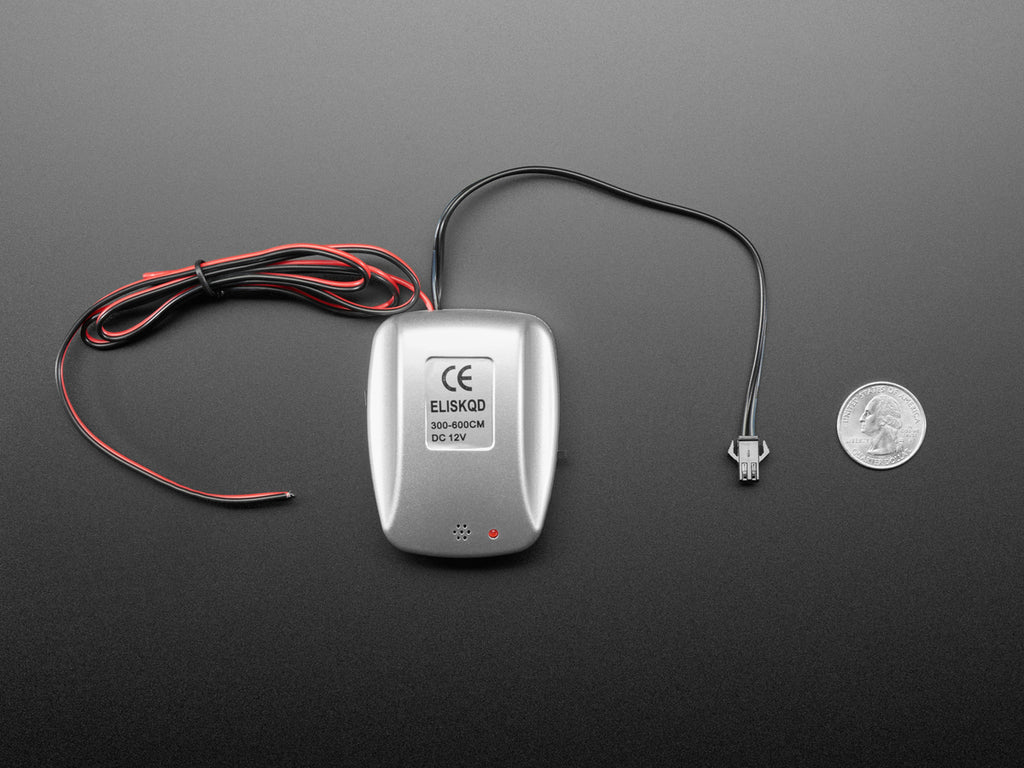

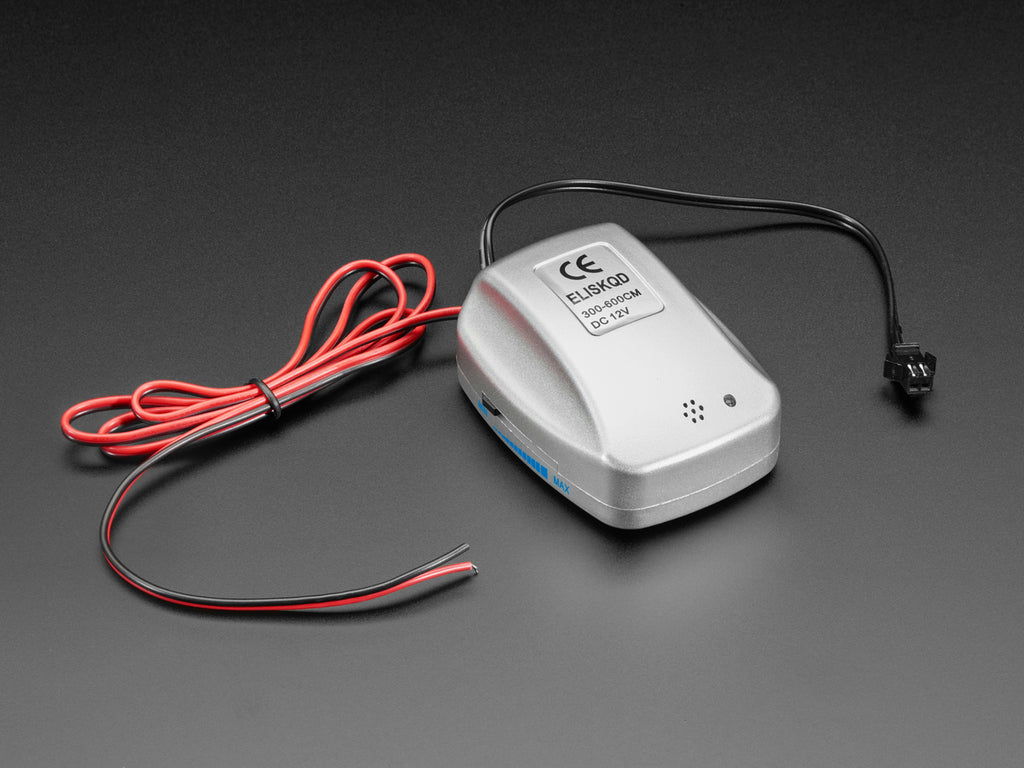

A small, portable inverter for EL wire with an audio input! This inverter has a little microphone and will light the connected EL according to the surrounding audio volume. Makes for an easy reactive project.

This inverter requires 12VDC input (it works great with our 8xAA battery holder) and it can drive 2-3 meters (7 to 10 feet) of our high-brightness EL wire OR 1 meter (3 feet) of EL tape OR a 10cmx10cm piece of EL panel continuously for about 48 hours (off of 4xAA's).

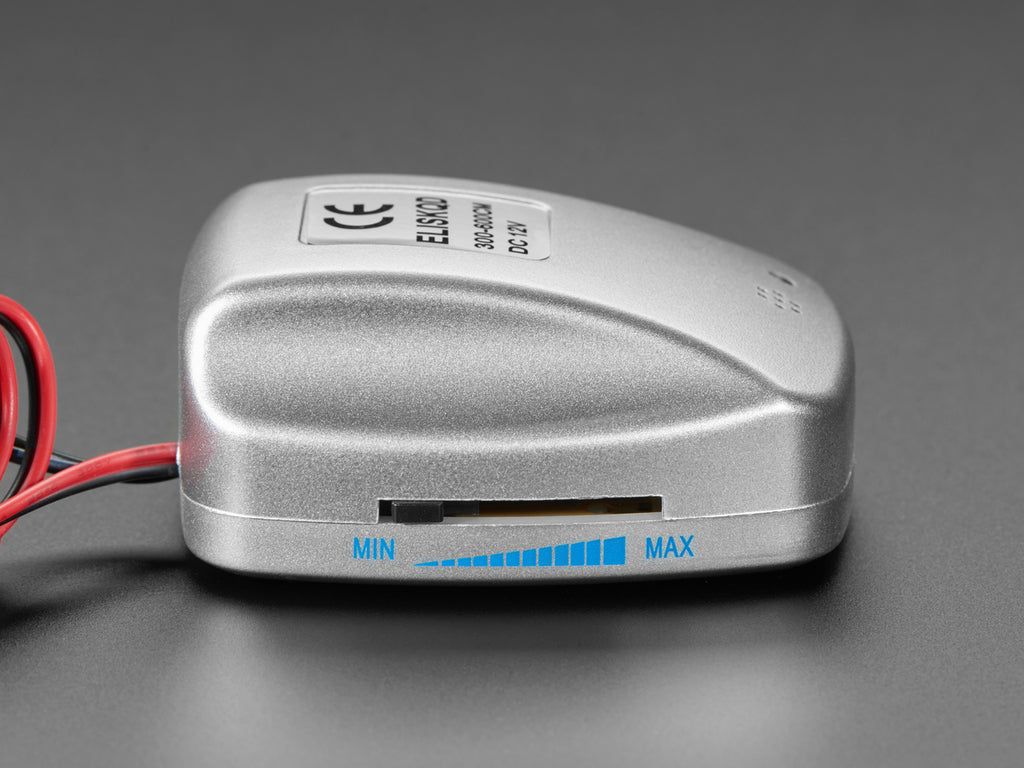

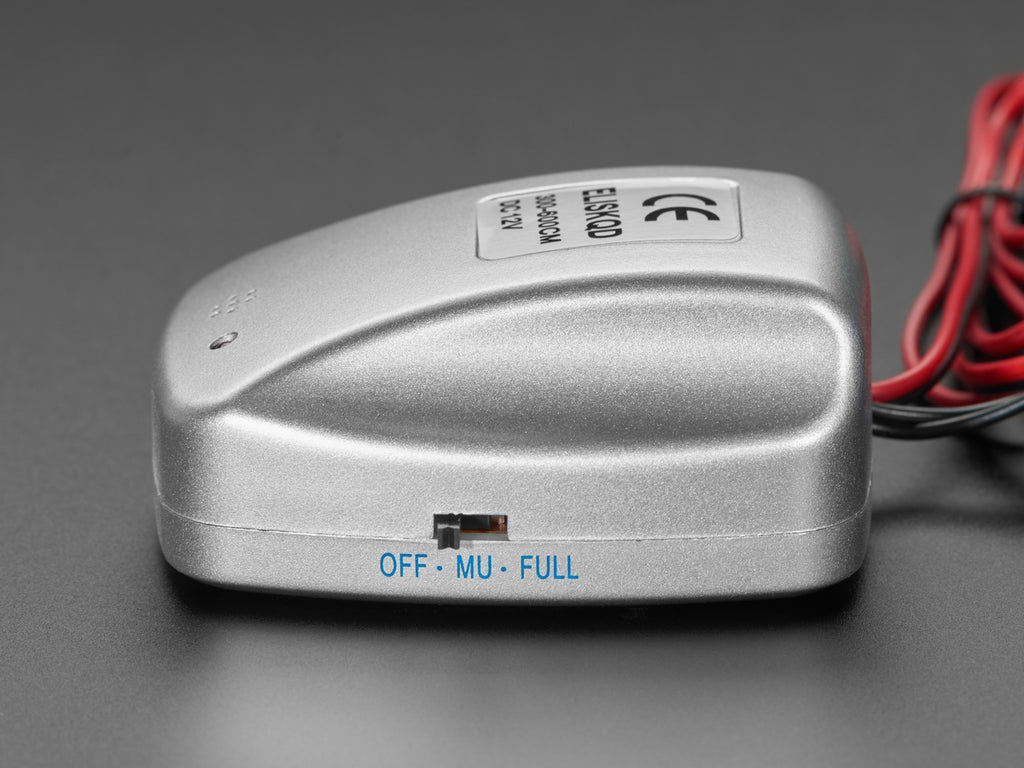

There is a switch for selecting steady/sound/off modes - steady is 'always on'. Comes with a single 2.5mm pitch female JST connectors, standard for all the EL wire and tape we carry. There's also two power wires, you'll need to connect these to a 12VDC power source. The white striped wire goes to +12V, the plain black wire goes to ground.

You can plug any of our EL wire/tape into this inverter directly. To connect a 'raw' piece EL wire to this, you'll want a male connector wire

The EL inverter requires a 'load' to stabilize itself. Do not run the inverter without at least 2 ft of EL wire attached! Otherwise the inverter can spike and damage itself

Like all inverters we've used, the 2000 Hz oscillation is slightly audible. To reduce the squeaking, we suggest opening up the case padding it with thick foam tape/weatherstripping. Squirting some hot glue around the capacitors may also help. We managed to get it silent this way.

Check out our EL TRON bag tutorial for ideas, and our EL wire couch video too!

Soldering to raw EL wire is a little tricky but luckily we wrote a detailed step-by-step tutorial! The tutorial also covers a lot of information about EL and how it works.





Technical Details

Dimensions:

  • Inverter Size: 85mm x 55mm x 22mm (3.4in x 2.2in x 0.85in)
  • JST cable length: approx. 20 cm

Revision History:

  • As of June 30, 2021 - We used to stock Wanyu inverters, but sadly they've closed doors so we have replaced the factory source for this product. That said, this inverter seems to work the same, and is silver instead of black.

Weight: 41.80g

    RoHS 2 2011 65 EU Compliant
    RoHS 2 2015 863 EU Compliant


    Learn

    Working with Electroluminescent Wire
